Spiral Chute1. used in mining industry
2.for concentrating
3direct manufacturer

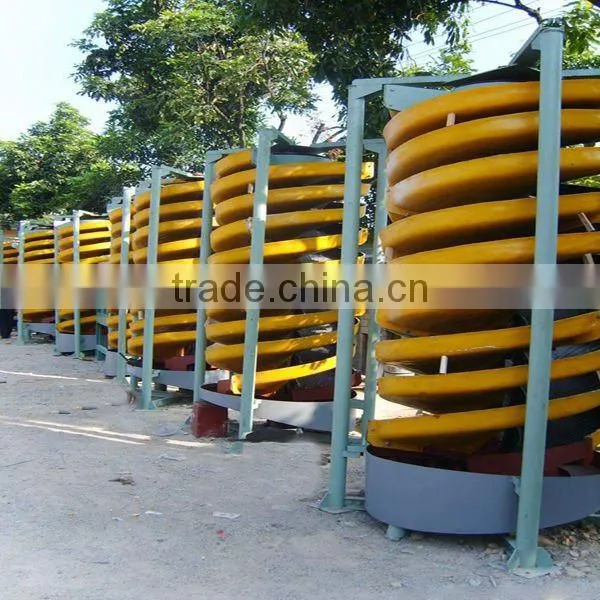

Gravity Spiral Chute For Gold Separation:
The product is made of the chlorine plastic, the advantage is light, moisture proof, anti-rust, corrosion proof, properly suitable for the changing of the feeding size and chrome, granularity, grade,
Working principle of Gravity Spiral Chute For Gold Separation:
Spiral chutes are gravity gold spiral separator and separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force and other forces in the fluid medium.
Application of Gravity Spiral Chute For Gold Separation:
Spiral chute is our company of separating experienced scientific product, which is the best separating equipment, especially for separating placer of the seashore, riverside, sand, rill.
Advantage of our Gravity Spiral Chute For Gold Separation Reasonable structure, simple fixed, less space, easily operated, separating even, separated clearly, and high efficiency,no noise.
Technical Parameter of Gravity Spiral Chute For Gold Separation:
Model |
5LL-1500 |
5LL-1200 |
5LL-900 |
5LL-600 |
5LL-400 |
|
Outside dia (mm) |
1500 |
1200 |
900 |
600 |
400 |
|
pitch (mm) |
540, 720 |
900, 720, 540 |
675, 540, 405 |
450, 360, 270 |
240, 180 |
|
Pitch Dia Ratio |
0.75, 0.6, 0.45 |
0.75, 0.6, 0.45 |
0.75, 0.6, 0.45 |
0.75, 0.6, 0.45 |
0.6, 0.45 |
|
Lateral slope |
9° |
9° |
9° |
9° |
9° |
|
Maximum starts per column |
4-2 |
4-2 |
4-2 |
2 |
2 |
|
Feeding Size (mm) |
0.3-0.02 |
0.3-0.03 |
0.3-0.03 |
0.2-0.02 |
0.2-0.02 |
|
Feeding Density(%) |
25-55 |
25-55 |
25-55 |
25-55 |
25-55 |
|
Capacity (T/H) |
8-6 |
4-6 |
2-3 |
0.8-1.2 |
0.15-0.2 |
|
|
External Size |
Length (mm) |
1560 |
1360 |
1060 |
700 |
460 |
Width (mm) |
1560 |
1360 |
1060 |
700 |
460 |
|
Height (mm) |
5230 |
5230 |
4000 |
2600 |
1500 |
|
Weight (Kg) |
800 |
600 |
400 |
150 |
50 |
|
