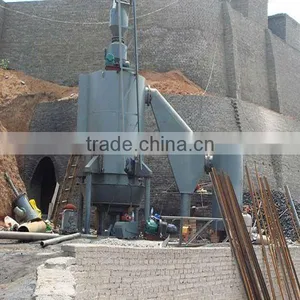

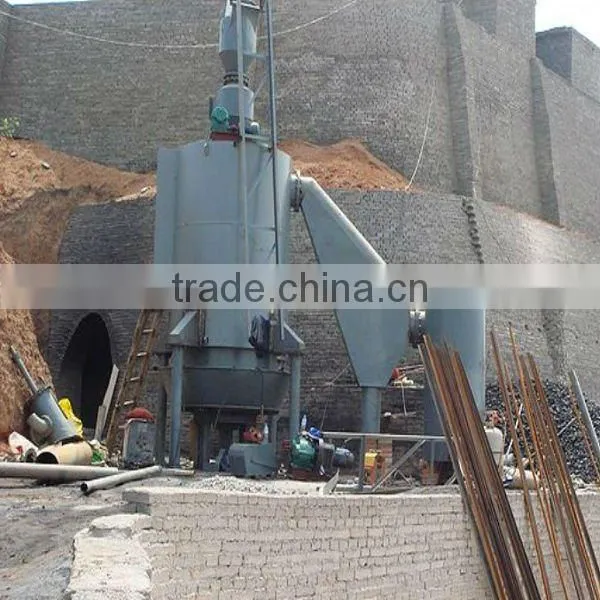

Help CenterHot Selling Coal Gas Producer
Related Products
Specifications
COAL GAS PRODUCER-zhengzhou huanqiu heavy manufacturer1.auto control temperature
2.more than 20x experience
3.strong effect
Coal Gasifier Introductions
This series of coal gasifier, developing from and taking good advantages of dry-type ash-cleaning gas furnace, is a new genration of intelligent high efficient environment-friendly products manufactured by our company, in which patened rotating disk slag cleaning and automatical slag cleaning structure are used.
Coal Gasifier Characteristics
♥ Using pagoda-shaped heat-resistant iron grate;
♥ The furnace wall is always protected by slags, strong effect of slag breaking, slag loosing and ventilation;
♥ Our coal gasifier elimates the concept that gas furnace is the same as pressure vessel;
♥ Our coal gasifier achieve the auto control of the temperature;
Continual coal gasifier uses national invention patented technology, eliminating the hidden trouble of traditional coal gasifier's easy explosion.
Coal Gasifier Specifications:
| Model(mm) | QM0.8 | QM1.0 | QM1.2 | QM1.5 | QM1.6 | QM1.8 | QM2.0 | QM2.4 | QM2.6 | QM3.0 | QM3.2 |
| Chamber diameter(mm) | 800 | 1000 | 1200 | 1500 | 1600 | 1800 | 2000 | 2400 | 2600 | 3000 | 3200 |
| Hearth active surface | 0.5 | 0.785 | 1.13 | 1.77 | 2.01 | 2.54 | 3.14 | 4.52 | 5.31 | 7.07 | 8.04 |
| Suirable fuel | weak coherent gas carbon,anotherracite,burnt carbon | ||||||||||
| Fuel granularity(mm) | 25-80 | ||||||||||
| Fuel consumption quantitykg/h | 40-100 | 70-140 | 120-190 | 160-350 | 350-460 | 500-600 | 500-720 | 700-1040 | 850-1200 | 1700-2000 | 1800-2200 |
| Gasifying agent | Air ,steam | ||||||||||
| Gas yieldNm³/h) | 140-350 | 245-490 | 420-670 | 560-1200 | 1200-1600 | 1500-2100 | 1750-2500 | 2500-3600 | 3000-4300 | 6000-7000 | 6500-7500 |
| Gas calorific valu(Kj/Nm³ | 5020-5670 | 5020-6000 | |||||||||
| Water jacket heating area(m2) | 4.02 | 5.02 | 6.78 | 10.37 | 11.06 | 12.44 | 17.58 | 21.87 | 23.69 | 30.16 | 32 |
| Steam output kg/h | 60 | 80 | 130 | 200 | 220 | 260 | 350 | 420 | 600 | 840 | 200 |
| Gas outlet temperature(°C) | (400-500)Plants related with the coal | (400-500)Plants related with the coal | |||||||||
| Gas outlet pressure(Pa) | 1000 | 980-1470 | 1470-1960 | 980-1470 | |||||||
| Gas exportation diameter(mm) | 219 | 325 | 325 | 426 | 426 | 529 | 630 | 720 | 820 | 1020 | 900 |
| Air pressure(Pa) | 3000 | 4000 | 3000 | ||||||||
| Saturated air temperature(°C) | 50-60 | 50-65 | |||||||||
| Ashpan rotational speed(r/h) | 0.177-1.77 | ||||||||||
| Equipment gross weight(t) | 3.5 | 4.5 | 5 | 7.5 | 10 | 20 | 23.4 | 29.8 | 32 | 37.6 | 16 |
| Complete machine power(kw) | 6 | 6 | 6 | 7 | 8 | 10 | 14 | 20 | 20 | 27 | 7 |
| Tuyere diameter(mm) | 108 | 108 | 140 | 165 | 219 | 325 | 325 | 426 | 426 | 426 | 219 |
