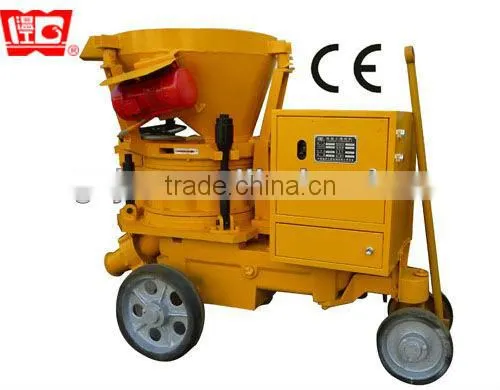

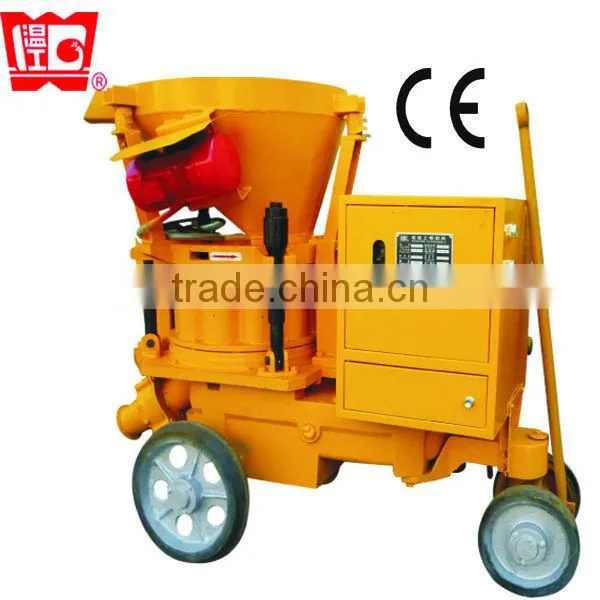

PZ-5 Aliva dry concrete spraying machine
1. PZ series dry concrete shotcrete machine can be used for dry spraying, moist spraying, and wet spraying which introduced present new technology of concrete shotcrete.
2. It is an optimized and improved generation product, adopts straight-through type chamber with smooth material flow.
3. PZ series dry concrete shotcrete machine is widely applicable for spraying concrete construction in tunnel, culvert, railway, highway, water conservancy projects, underground projects, coal mine, moorland mine well and roadway.
Technical parameter
| Model | PZ-5 |
| Working capacity | 5-5.5m3/h |
| Working air pressure | 0.2-0.4Mpa |
| Air consumption | 7-8m3/h |
| Max Horizontal transport distance | 200m |
| Max High transport distance | 40m |
| Applicable water cement ratio | 0.4-0.45 |
| Max diameter of material | 20mm |
| Engine power | 5.5kw |
| Net Weight | 700kg |
| Dimension | 1520×820×1280mm |
1. PZ-5 is very small concrete spraying machine, so it can be carried easily.

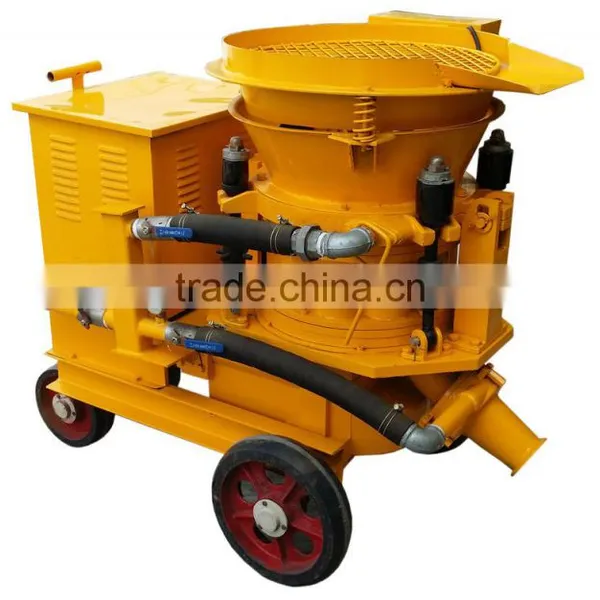

Front side of PZ-5:
Back side of PZ-5
vulnerable parts:
2. PZ-5 is always used for spraying or shotcreting concrete, refractory for tunnel, swimming pool etc.
3. PZ-5 always is very popular in Russia, Malaysia, Philippines, Chiles, Ecuador. We always export them more than 20sets for above countries.
4. It's approved ISO9001:2008 certificate
