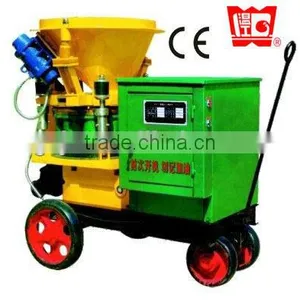

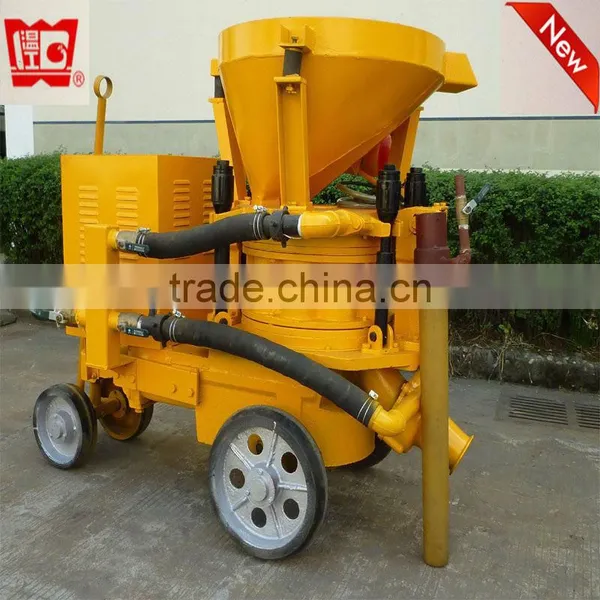

Shotcrete equipment

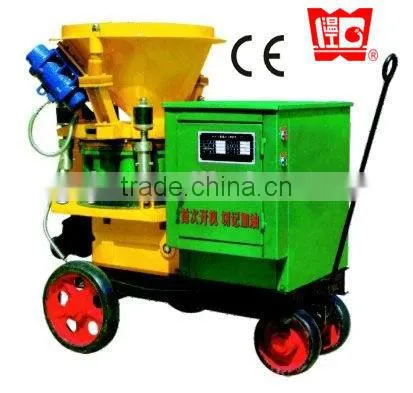

Model PZ-6 concrete shotcrete equipment is the most ideal device for the concrete anchor spray construction, wet spray and moist spray.
And be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects.
Technical parameter
Model |
PZ-6 |
PZ-9 |
Production capacity (m3/h) |
6 |
7-9 |
Max horizontal delivery distance(m) |
200 |
200 |
Max vertical delivery distance(m) |
40 |
40 |
Cement-sand ratio |
1 : 3-5 |
1 : 3-5 |
Water-cement ratio |
≤0.4-0.45 |
≤0.4-0.45 |
Vibration motor power(kw) |
0.25 |
0.25 |
Max aggregate size (mm) |
20 |
20 |
Inner diameter of delivery hose(mm) |
51 |
51 |
Working air pressure (Mpa) |
0.2-0.4 |
0.2-0.4 |
Air consumption(m3/h) |
7-8 |
10-12 |
Motor power(kw) |
5.5 |
7.5 |
Dimensions(mm) |
1300×900×1100 |
1300×800×1300 |
Net Weight(kg) |
700 |
900 |

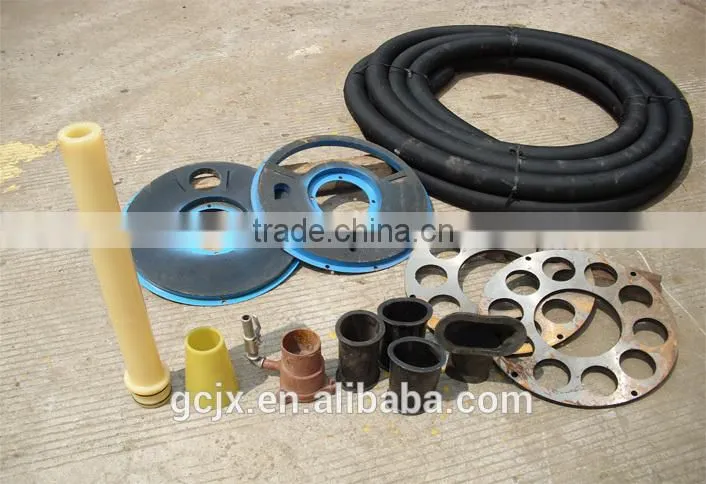

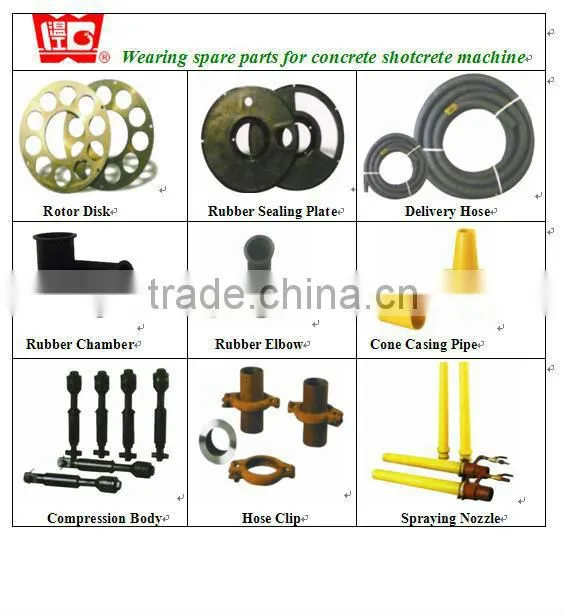

vulnerable parts:

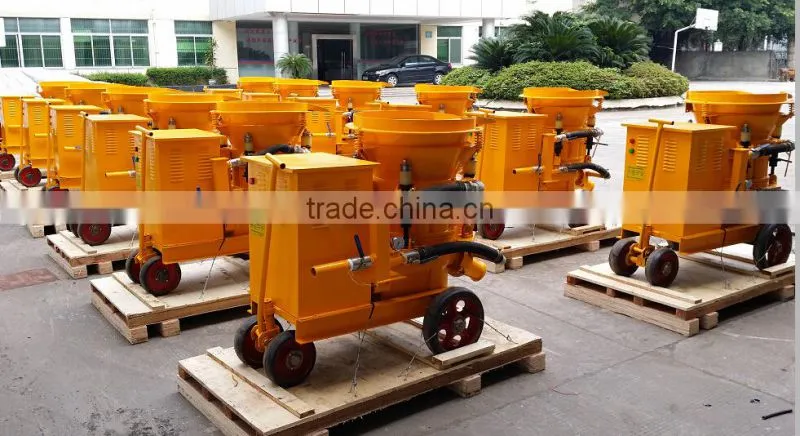

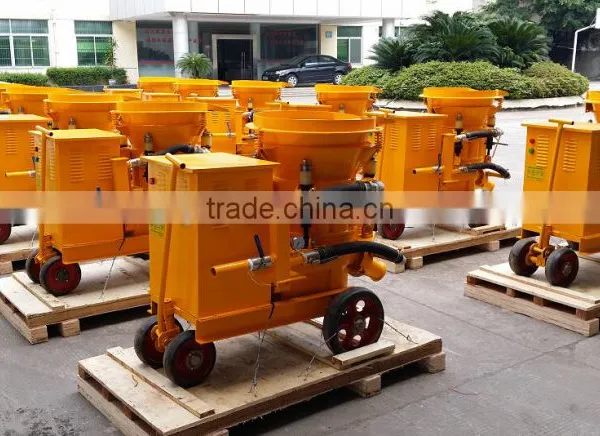

1. PZ-6 always is very popular in Russia, Malaysia, Philippines, Chiles, Ecuador. We always export them more than 20sets for above countries.

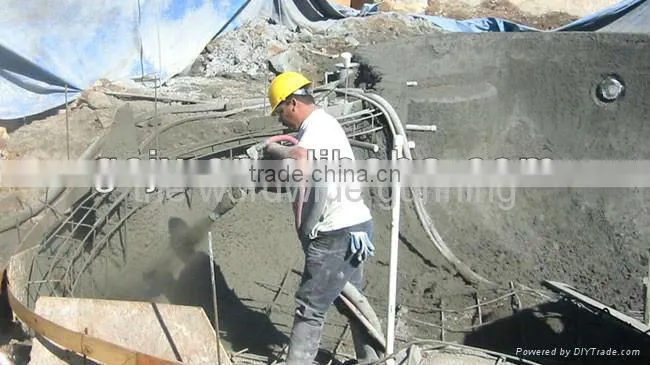

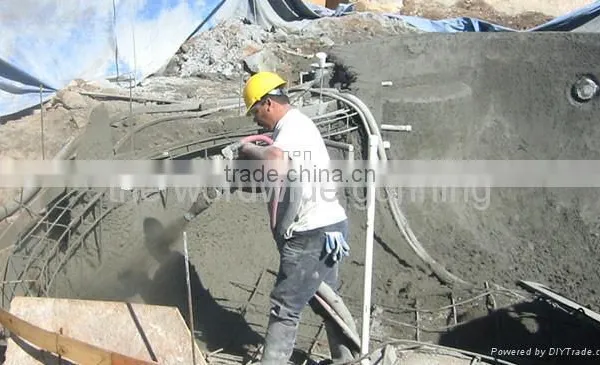

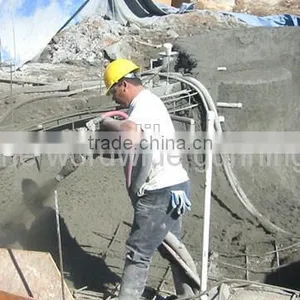

2. PZ-6 is always used for spraying or shotcreting concrete, refractory for tunnel, swimming pool etc.
3. It's approved ISO9001:2008 certificate

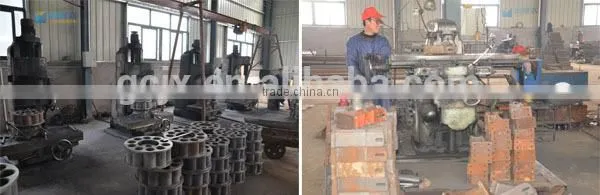

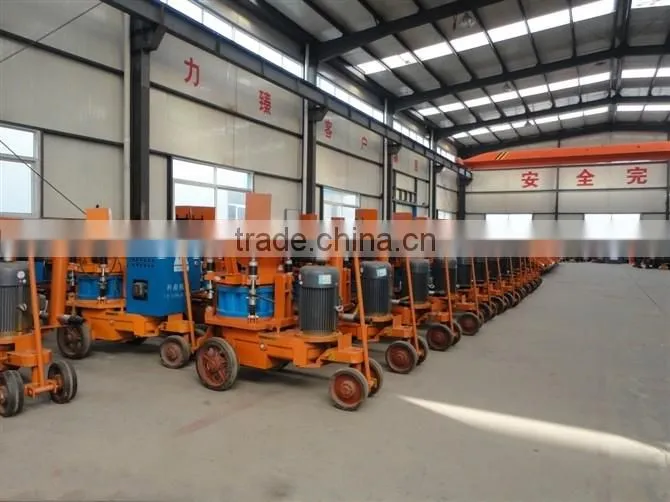

1. Our workshop
2. Our contact
