Specifications
dry gunning machine1.widely uses to gun concrete
2.6m3/h, dry gunning
3.stardard part:spraying gun,fast fittings

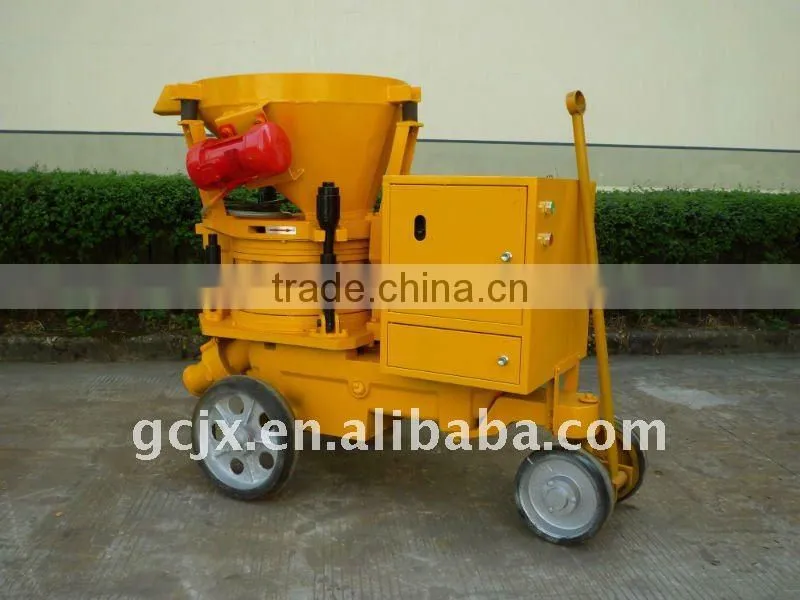

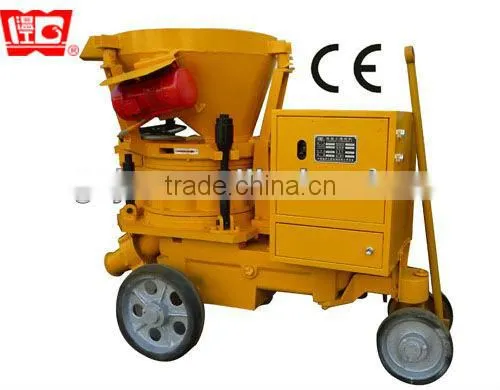

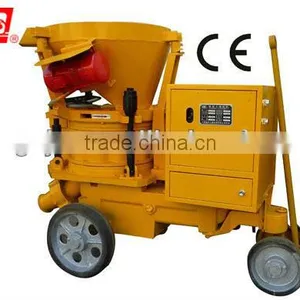

PZ-6 dry gunning machine
Model PZ-6 concrete gunite machine is the most ideal device for the concrete anchor spray construction, wet spray and moist spray. And be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects. The accelerating admixture conveying system in the machine is independent measured precisely by standard metering pump which is freely adjusted. And uniquely-made rubber bushing block on the swirler benefits mixture delivery. PS-7 and PS-9 has stable performance, is convenient for maintenance, saves energy, has a long service life, protects environment, and improves the spraying layer quality.
Technical parameter
Model |
PZ-6 |
PZ-9 |
Production capacity (m3/h) |
6 |
7-9 |
Max horizontal delivery distance(m) |
200 |
200 |
Max vertical delivery distance(m) |
40 |
40 |
Cement-sand ratio |
1 : 3-5 |
1 : 3-5 |
Water-cement ratio |
≤0.4-0.45 |
≤0.4-0.45 |
Vibration motor power(kw) |
0.25 |
0.25 |
Max aggregate size (mm) |
20 |
20 |
Inner diameter of delivery hose(mm) |
51 |
51 |
Working air pressure (Mpa) |
0.2-0.4 |
0.2-0.4 |
Air consumption(m3/h) |
7-8 |
10-12 |
Motor power(kw) |
5.5 |
7.5 |
Dimensions(mm) |
1300×900×1100 |
1300×800×1300 |
Net Weight(kg) |
700 |
900 |
1. Below batch of concrete spraying machine are exported to Russia, we have 5x40ft containters to export every month.

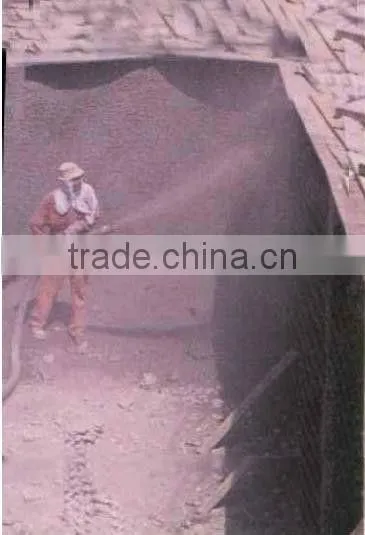

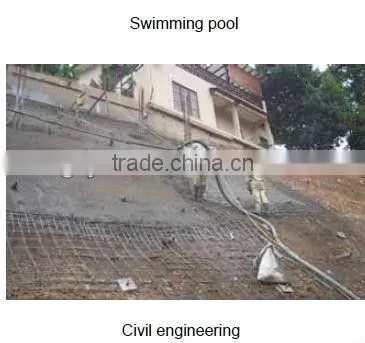

2. be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects.
