Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Mortar Spray Machine > New Model!! PZ-5A Air Motor Shotcrete Machine

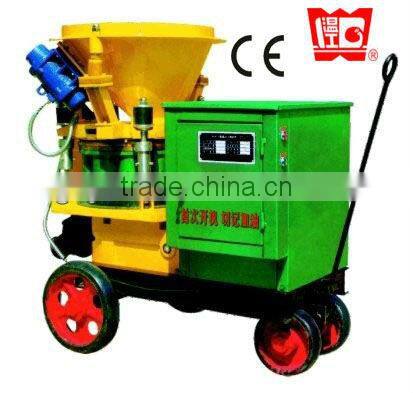

New Model!! PZ-5A Air Motor Shotcrete Machine
US$ 3,000 - 6,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Max. Conveying Distance:
200m
Max Aggregate Size:
15mm
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PZ-6 Dry Gunning MachineUS$ 1,800 - 2,500MOQ: 1 Set -
ISO9001:2008 PZ-6 Shotcrete Equipment for ConcreteUS$ 2,000 - 2,800MOQ: 1 Set
-
CE, ISO9001:2008 PZ-5 Dry Concrete Spraying MachineUS$ 1,800 - 2,800MOQ: 1 Set
-
2016 Best Sell PFT G5c Plastering MachineUS$ 5,500 - 8,000MOQ: 1 Set
-
TTL Automatic Mortar Feeding Conveying MachineUS$ 1,200 - 2,500MOQ: 1 Set
Condition
New
Max. Conveying Distance
200m
Max Aggregate Size
15mm
Hose Inner Diameter
50 mm
Air Consumption
5m3/h
Place of Origin
Zhejiang, China
Brand Name
Wengong
Model Number
PZ-5A
Voltage
no need
Power(W)
5.5KW
Dimension(L*W*H)
1350x1200x750mm
Weight
720kgs
Certification
CE
Warranty
6months
After-sales Service Provided
Overseas third-party support available
Specifications
air motor concrete spraying machine>spray concrete capacity:5m3/h, CE
>air motor:5.5kw
>delivery distance:H:40m,L:200m
PZ-5A air motor concrete spraying machine
Model PZ-5A air motor concrete spraying machine is the most ideal device for the concrete anchor spray construction, wet spray and moist spray. And be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects. The accelerating admixture conveying system in the machine is independent measured precisely by standard metering pump which is freely adjusted. And uniquely-made rubber bushing block on the swirler benefits mixture delivery.
Technical parameter
| Model | PZ-3A | PZ-5A | PZ-9A |
| output | 3 m3/h | 5.5 m3/h | 9 m3/h |
| nv.dist | 200 m | 200 m | 150 m |
| Water cement ratio | < 0.4 | < 0.4 | < 0.35 |
| Max.Aggregate.size | 10 mm | 15 mm | 20 mm |
| Hose inner size | φ42/50 mm | φ50 mm | φ64 mm |
| Operating air pressure | 0.2-0.6 MPa | 0.2-0.6 MPa | 0.2-0.6 MPa |
| Air consumption | 5-6 m3/min | 7-8 m3/min | 9-10 m3/min |
| Power Engine | Air Motor, 3kW | Air Motor, 5.5 kW | Air Motor, 7.5 kW |
| Diesel engine | 430KG | 720KG | 900KG |
| Dimensions | 1130×1020×540mm | 1350×1200×750mm | 1500×1320×830mm |
