Specifications
concrete pump and spray machine>Widely use in tunnel site
>Capacity:9m3/h, shocrete:200m
>Export to India/Brazil/ECUADOR

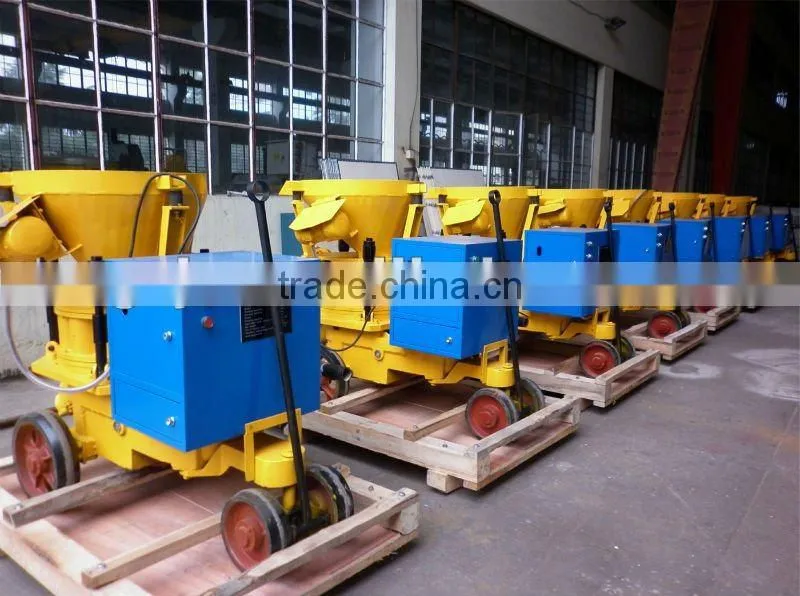

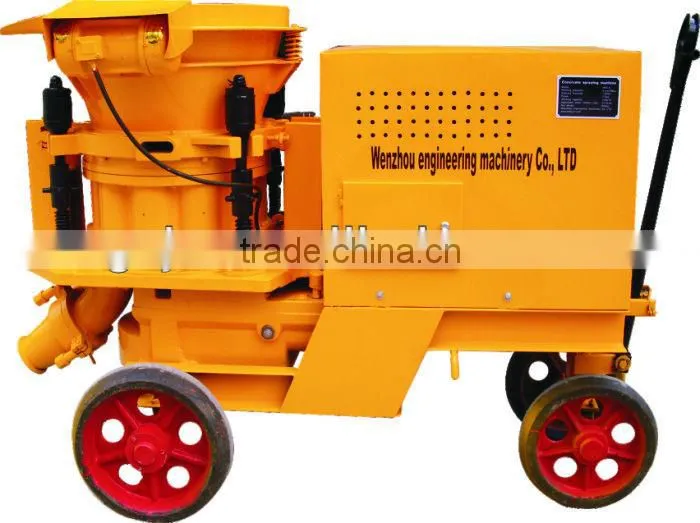

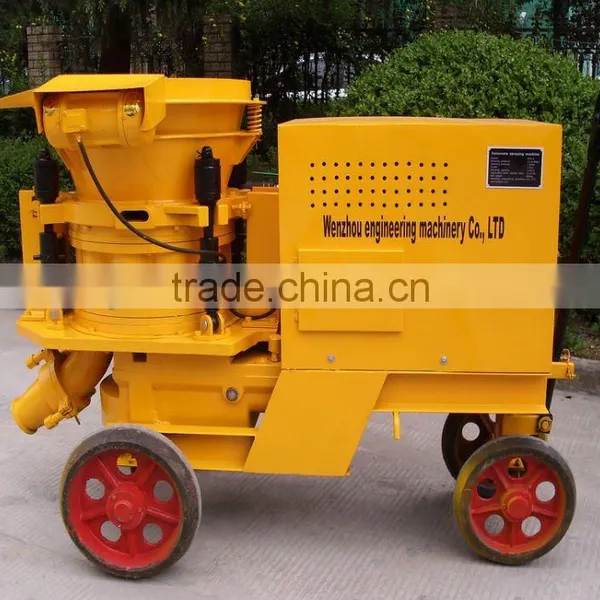

PZ-9 concrete pump and spray machine
Model PZ-9 dry-mix concrete tunnel shotcrete machine is the most ideal device for the concrete anchor spray construction, wet spray and moist spray. And be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects. The accelerating admixture conveying system in the machine is independent measured precisely by standard metering pump which is freely adjusted. And uniquely-made rubber bushing block on the swirler benefits mixture delivery. PS-7 has stable performance, is convenient for maintenance, saves energy, has a long service life, protects environment, and improves the spraying layer quality.
Technical parameter
| Model | PZ-9 |
| Working capacity | 7-9m3/h |
| Working air pressure | 0.2-0.4Mpa |
| Air consumption | 10-12m3/h |
| Max Horizontal transport distance | 200m |
| Max High transport distance | 40m |
| Applicable water cement ratio | 0.4-0.45 |
| Max diameter of material | 20mm |
| Engine power | 7.5kw |
| Net Weight | 900kg |
| Dimension | 1300×800×1300mm |

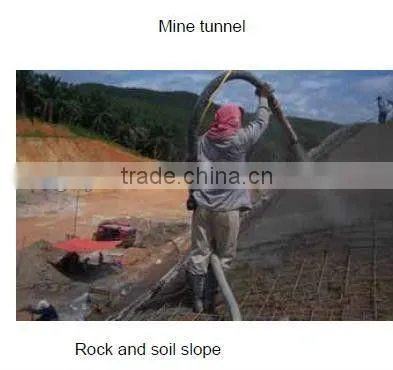

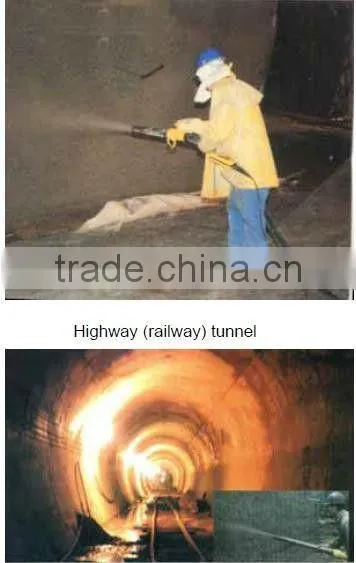

1. PZ-9 can be used below applications:
2. We always export lots of 20ft containers to Russia, Mexcio, Peru etc.
