Specifications
Concrete brick machine price block making machine1BV
2. Vibration frequency:50-70
3.Machine power:51
4.Vibration Force:100

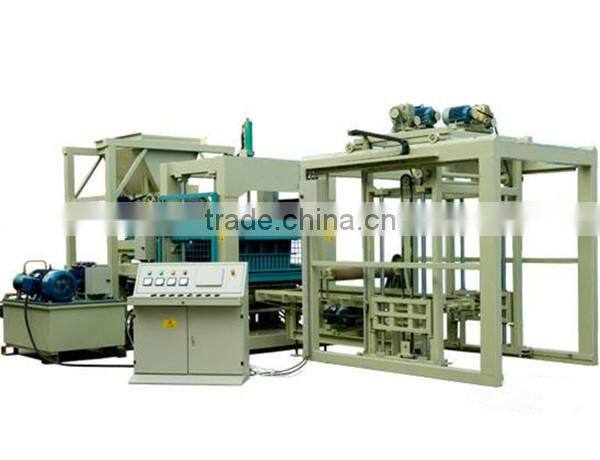

QT10-15 concrete brick machine price block making machine
1. Introduction of QT10-15 concrete brick machine price block making machine
QT10-15 block making machine is suitable to produce a variety of bricks including fixed standard brick, hollow block, solid brick, paver, interlock brick and other concrete bricks. Adopting sub-storage device and independent storage hopper, this machine can overcome the liquefaction of concrete defects in advance, and ensure the quality of the finial products. It can automatically operate the whole set, from material feeding to finish products output.
2. Constituent parts of QT10-15 concrete brick machine price block making machine
-
Batching Plant: This is the starting point of the Production process. It consists of three loading bins and one weighing bin. It also contains belt conveyors to convey materials from loading binsto weighing bin. Batching and weighing is done by PLC control. We can load three different typesof material into the loading bin.
-
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing timeand speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, asper requirement.
-

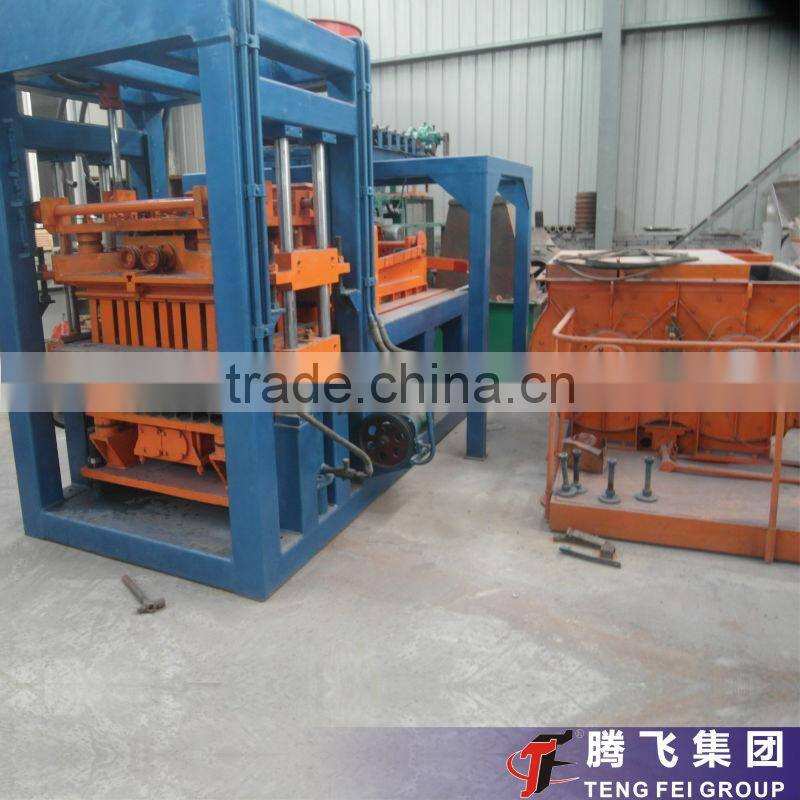

Block mold machine:This is the key of the production line.It can press the mixed material.It can make various hollow block,solid brick,paving brick and curbstone.
-
Screw Conveyor: (Optional fitment loading bins of the This is instrumental for transporting Fly Ashfrom the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.
-
Conveyor Belt: When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyor belt. The material is then carried to the Mixture Machine.
- Stacker: Stacker is used to lay the block automatically,it is high efficient and labor saving
- The sand and gravel and other raw materials will be conveyed by the loader into batching machine, measured by electronic meter and burdening according to the computer storage formula (or random adjustment). After measurement, the material will be conveyed by the conveyor into the hopper of concrete mixer machine, and be conveyed into concrete mixer.
- The cement and flyash will be sconveyed by the screw conveyor into cenment and fly ash measure system severally, and be conveyed into concrete mixer in the end. Then water enter in concrete mixer according to the water cement ratio design.
- After mxing corresponding period, the mixing material will be conveyed into storage hopper of block machine by belt conveyor. Then the mixing material will be sent to the mould by the distributing device.
- Centrifugal force produced by the rotation of distributing shaft fabric would send the material to feeding box forcibly, the distributing device returned after feeding. discharge head goes down and at the same time start the vibrator vibration, and vibration compression.
- After moulding, lifting the molding box and the finished product will be extruded and sent to the brick conveyor, after cleaned by the brick face sweeper cleaning machine, the finshed product will be sent to palletizing machine, curing chamber by the forklift in the end.
4. Main Equipments of QT10-15 concrete brick machine price block making machine
Item No |
QTY |
Size(mm) |
Weight(kgs) |
Power(kw) |
Host machine |
1 |
5300x2060x2870 |
12220 |
26.5 |
Control cabinet |
1 |
1000x680x1280 |
85 |
0 |
Hydraulic station |
1 |
1300x1300x2200 |
1050 |
18.5 |
Block receiver |
1 |
2900x900x600 |
336 |
1.47 |
stacker |
1 |
2500x2000x2450 |
1967 |
3 |
mold |
1 |
1480x1000x370 |
1023 |
0 |
Belt conveyor |
1 |
3850x900x950 |
538 |
2.2 |
mixer |
1 |
3030x2520x2880 |
5500 |
38.6 |
Hydraulic forklift |
2 |
1900x550x600 |
122 |
0 |
5. Parameters of QT10-15 concrete brick machine price block making machine
Dimension of host machine |
5320x2080x2870mm |
Host machine power |
51kw |
Weight of the host machine |
15T |
Molding area |
900x810mm |
Pallets size |
1250x880x20mm |
Shaping period |
15-20s |
Vibration force |
100KN |
Vibration Frequency |
2850/min |
Mixer |
JS750 |
Voltage |
380V |
General water consumption |
10T/day |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, and other industrial wastes |

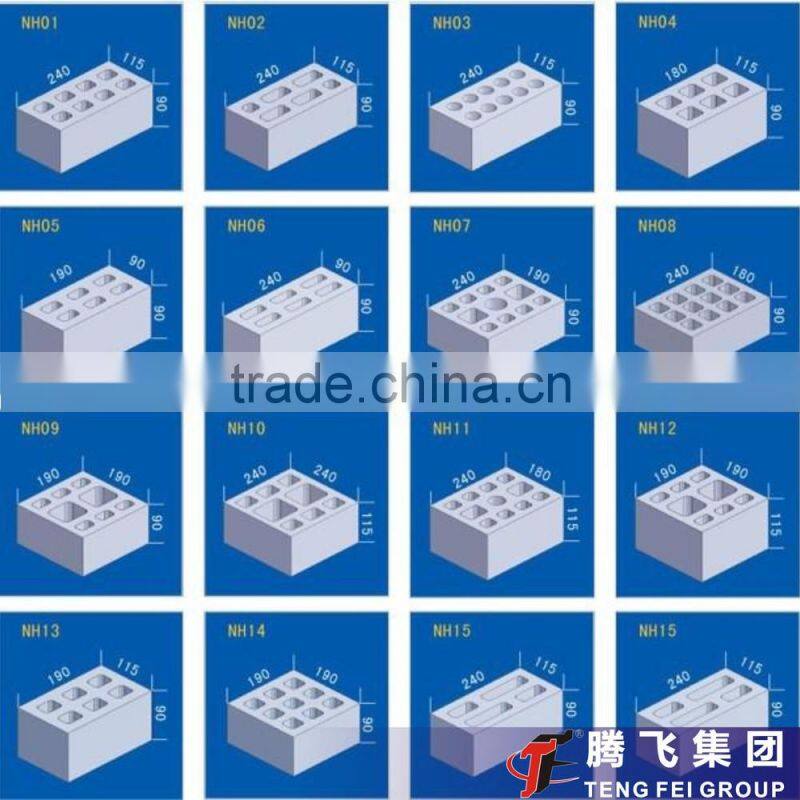

Applied Products |
Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and scraping products, slabs, curbstones, grass blocks, slope blocks, interlocking blocks, etc.
|
Applied Fields |
widely used in buildings, road paving, gardens, landscaping, city constructions, etc. |

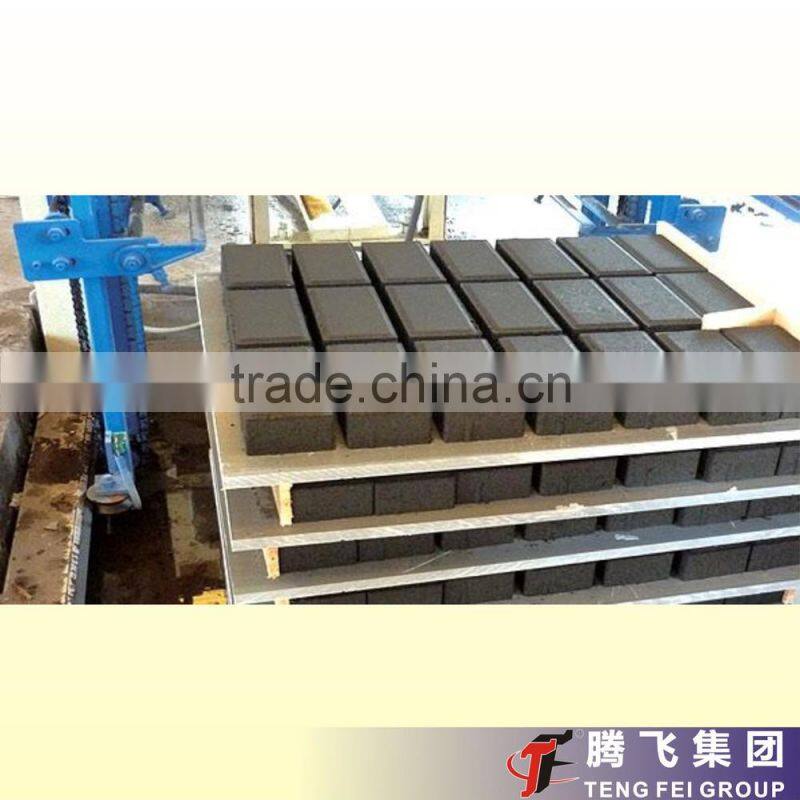

6. Produce Capacity of QT10-15 concrete brick machine price block making machine
Item |
Specification |
Picture |
Psc/mould |
pcs/h |
pcs/8hrs |

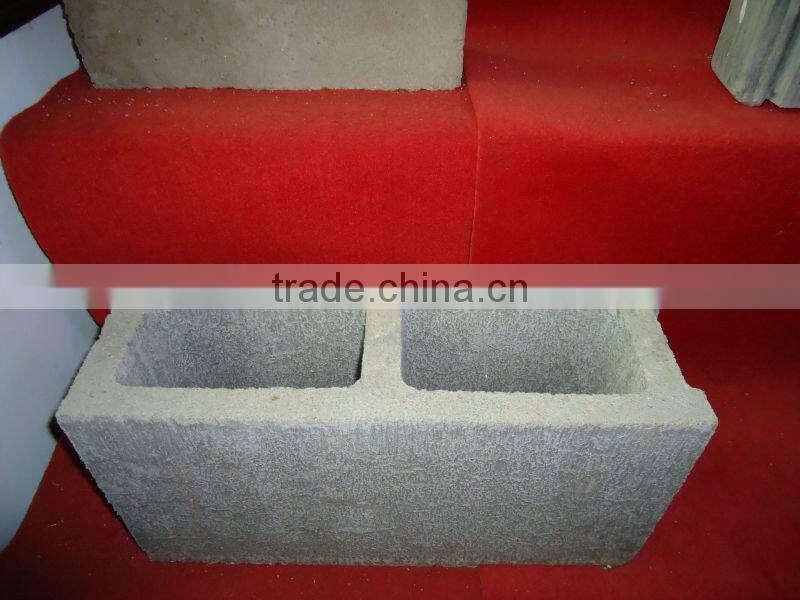

Concrete block |
390*190*190mm |
|
10 |
1800-2400 |
14400-19200 |
Solid block |
240*115*53mm |
|
54 |
9720-12960 |
77760-103600 |
Porous block |
240*115*90mm |
|
27 |
4860-6480 |
38880-51840 |
1.Delivery time: 15 days after receipt of your deposit.
2.Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery.
3.Package:
1).Wire cables are used for fastening the machine on the trailer or inside the container.
2).Cork wood are placed in front or behind the machine to protect it.
3).Plastic film is covered on the machine as a rain-roof.
4).Crane is used during the whole loading.
Why chose Henan Teng Fei?
1.Teng Fei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.
2.Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project
3.in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.
How long is the warranty?
The warranty period is 12 months.
What services does it provide?
1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
What is the Teng Fei’s basic philosophy?
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
Teng Fei Group is a manufacturer of construction machine and mine machine, with more than 15 years experience, mainly produce concrete batching plant, AAC block line, stabilized soil mixing plant, dry mortar production line, cement production line, concrete mixer, concrete pump ,concrete truck, cement silo, crusher, ball mill, raymond mill, sand making line and so on.
