Specifications
hydraulic interlock paving block making machine1Machine power:19
2.Vibration frequency:2800~4200rpm
3.Molding cycle:15-20
4

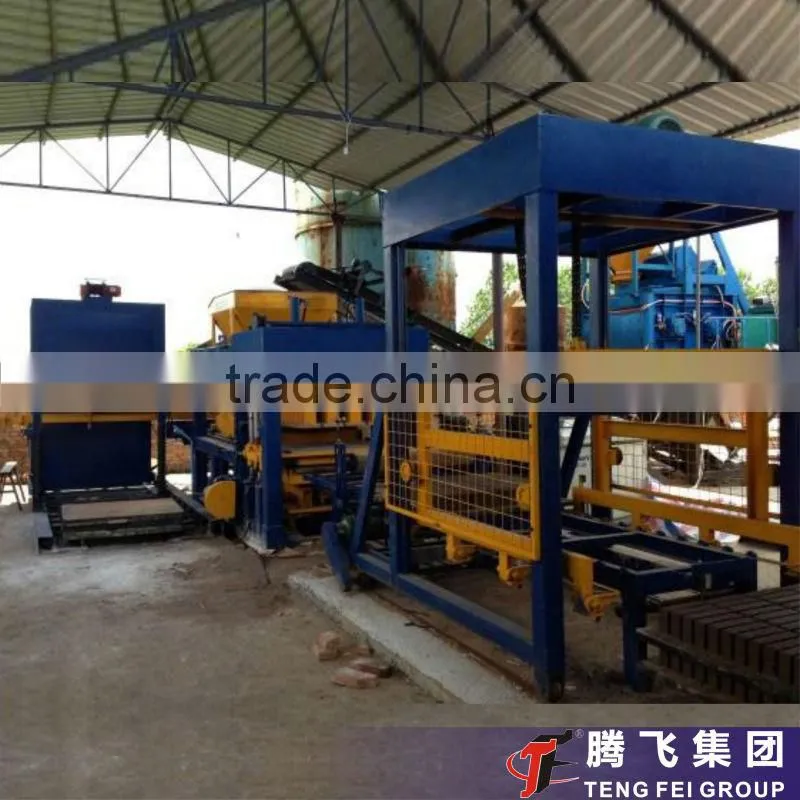

Top selling- QT5-15 small scale block making machine
| 1. Introduction of QT5-15 hydraulic interlock paving block making machine |

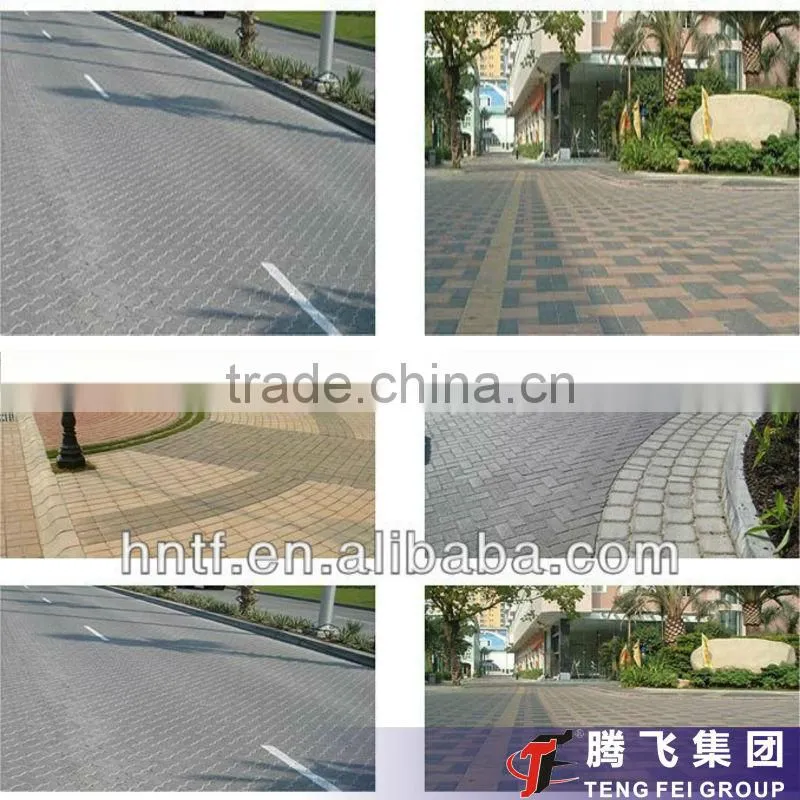

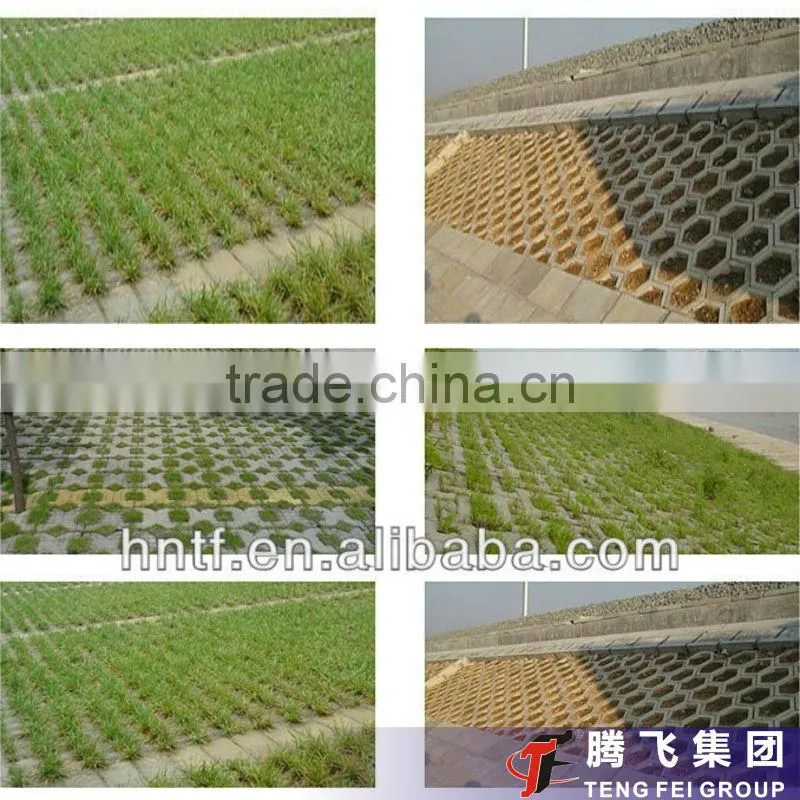

This machine adopt the advanced vibration control system. The mould can be completed in seconds with large pressure and solid density. Only ten pieces of supporting plates can be piled.It can be widely used in the production of yard bricks, greenland bricks, bread-like brick, different kinds of color bricks and so on. One machine with multifunctions.At present, It is the most advanced equipment home and abroad.
| 2. Features & Advantages of QT5-15 hydraulic interlock paving block making machine |
| 2.1>Automatic control system |
| 2.2>PLC control system |
| 2.3>Hydraulic pressing system |
| 2.4>Perfect oil system |
| 2.5>Siemens electronic system |
| 2.6>Self-diagnose system |
| 2.7>Multiply-function forming system |
| 2.8>Frequency vibration system |
| 2.9>Germany technology |
| 3. Technical Data of QT5-15 hydraulic interlock paving block making machine |
Pallet Size(mm) |
900(L)*550(W)*35(H)mm |
Machine Weight(kg) |
6000kg |
The Way of Vibration |
Table Mould Vibration |
The Frequency of Vibrate |
2800~4200rpm |
Circle time(s) |
15~20s |
Rated Power(kw) |
19kw |
| 4. Production Capacity of QT5-15 hydraulic interlock paving block making machine |
SPEC. |
Block 390*190*190 |
Block 390*100*190 |
Rectangular 200*100*60 |
I Shape 200*165*60 |
S Paver 225*112.5*60 |
Pcs/Pallet |
5 |
10 |
20 |
10 |
16 |
Pcs/Hour |
900 |
1800 |
3600 |
1800 |
2880 |
Pcs/8 Hour |
7200 |
14400 |
28800 |
14400 |
23040 |
Year(300day) |
30423m³ |
32000m³ |
172800m² |
142574m² |
174987m² |
| 5. Molding capacity of QT5-15 hydraulic interlock paving block making machine |
| Hollow block: 4pcs/mould (390*190*190), 7680pcs/day (8hours) |
| Cellular block: 12pcs/mould (240*115*90), 23040pcs/day (8hours) |
| Environmental protection block: 16pcs/mould (200*100*60), 30720pcs/day (8hours) |
| Standard block: 26pcs/mould (238*115*53), 49920pcs/day (8hours) |
| 6. Remarks- QT5-15 hydraulic interlock paving block making machine |
| 1. Customized color is available based on previous notice. |
| 2. If needed, the seller can help the buyer to handle shipping and insurance. |
| 3. Installation & commissioning is available based on the clients’ requirement. |
| 7. Application- QT5-15 hydraulic interlock paving block making machine |
1.Delivery time: 15 days after receipt of your deposit.
2.Payment terms: 30% T/T in advance, the left is paid (by T/T) before delivery.
3.Package:
1).Wire cables are used for fastening the machine on the trailer or inside the container.
2).Cork wood are placed in front or behind the machine to protect it.
3).Plastic film is covered on the machine as a rain-roof.
4).Crane is used during the whole
Why chose Henan Teng Fei?
1.Teng Fei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.
2.Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project
3.in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.
How long is the warranty?
The warranty period is 12 months.
What services does it provide?
1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
What is the Teng Fei’s basic philosophy?
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
Teng Fei Group is a manufacturer of construction machine and mine machine, with more than 15 years experience, mainly produce concrete batching plant, AAC block line, stabilized soil mixing plant, dry mortar production line, cement production line, concrete mixer, concrete pump ,concrete truck, cement silo, crusher, ball mill, raymond mill, sand making line and so on.
