Specifications
Inflatable marine airbags used for heavy lifting1.Fast lead time
2.High strength
3.Anti-aging
4.Long service life

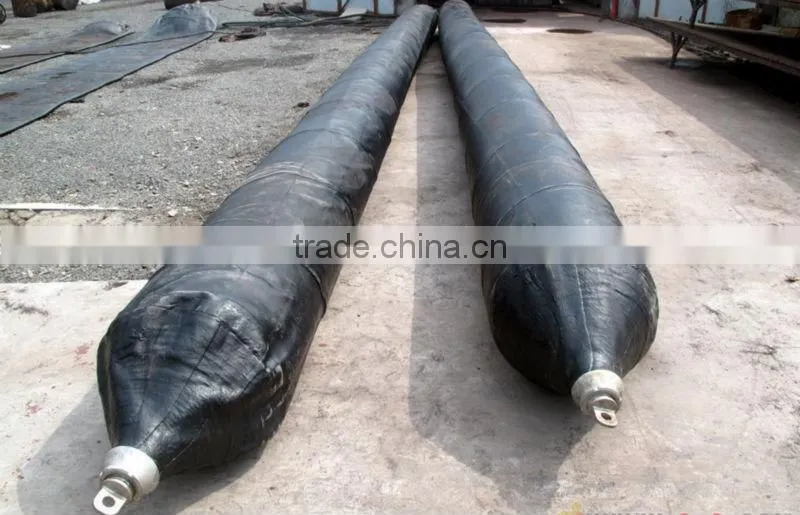

Inflatable marine airbags used for heavy lifting and moving
Introduction of our airbags
Marine rubber airbag is a new type of product developed independently, which is widely
used in ship upgrading and launching operations, ship stranding and heavy load handling
etc. The marine rubber airbag has been popular among the ship owners due to its smaller
land occupation, no need for large machinery and equipment, high safety and efficiency and
flexible operations and smaller investment etc.
Construction of our airbags
Marine Airbags have the best designed structure which consists of different functional
membranes in rubber layers.
(1) Outer Rubber Layer
The outer rubber layer that covers the outside of marine airbag to protect under layers from
abrasion and other external forces. This compound has sufficient tensile and tearing strength
to withstand any condition and hard usage.
(2) Inner Rubber Layer
The inner rubber layer seals pressurized air inside marine airbags.
(3) Synthetic-Tire-Cord Layer as Reinforcement
The reinforcement cord layers, which are made of synthetic-tire-cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and
distribute stress evenly. So they can provide strong efficient reinforcement.
Characteristic
1. High strength
2. Wear resistance and anti-aging
3. Good air tightness
4. Safety and reliability
5. High kneading&compressing resistance and damping capacity
Application

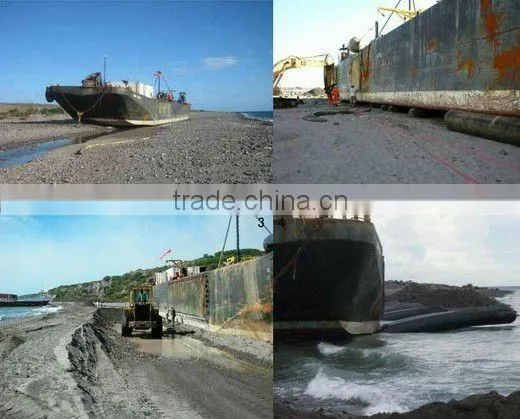

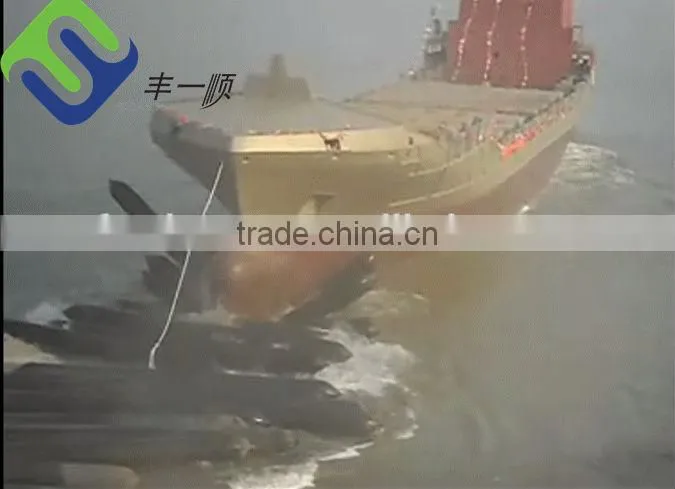

Ship launching marine airbags are used for ship launching, ship landing, ship lifting, loading,
and floating. They are widely used in cargo boat launching and landing, lifting and moving
sunken ships, and salvaging stranded boats. Marine airbags have the benefit of not only
saving labor and time, but investment costs. Additionally they are flexible and dependable.
Standard specifications
Diameter (D): |
From 0.8m to 2.4m |
Effective Length (EL): |
From 6.0m to 20.0m |
Total Length (TL): |
From 7.0m to 21.5m |
Standard Number of Layers: |
Usually 4-10 layers |
Loading Capacity: |
About 10-40 T/M |
Guaranteed working pressure
type |
D=0.8m |
D=1.0m |
D=1.2m |
D=1.5m |
D=1.8m |
D=2.0m |
3 layers |
0.13MPA |
0.10MPA |
0.09MPA |
0.07MPA |
0.06MPA |
0.05MPA |
4 layers |
0.17MPA |
0.13MPA |
0.11MPA |
0.09MPA |
0.08MPA |
0.07MPA |
5 layers |
0.21MPA |
0.17MPA |
0.14MPA |
0.11MPA |
0.09MPA |
0.08MPA |
6 layers |
0.25MPA |
0.20MPA |
0.17MPA |
0.13MPA |
0.11MPA |
0.10MPA |
7 layers |
0.29MPA |
0.23MPA |
0.20MPA |
0.15MPA |
0.13MPA |
0.12MPA |
8 layers |
0.33MPA |
0.26MPA |
0.23MPA |
0.17MPA |
0.15MPA |
0.14MPA |
Any question, feel free to contact me.-Alice(Skype: alicezhang920218)
