ISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag

ISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag thumbnail-1
ISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag thumbnail-2
ISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag thumbnail-3
ISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag thumbnail-4
ISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag photo-1
ISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag photo-2
ISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag photo-3
ISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag photo-4
US$ 2,000 - 2,000 MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
FLORESCENCE
Model Number:
FL-EL marine rubber airbag
Contact Supplier Request Quote Chat Now
Qingdao Florescence Rubber Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name FLORESCENCE
Model Number FL-EL marine rubber airbag
Part Other

ISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag Marine Rubber Inflatable Launching Ship Airbag

Company Information



 FLORESCENCE is a leading professional manufacturer of pneumatic rubber

fenders,foam fenders, various marine rubber fenders, and ship launching&

salvage rubber airbags.



FLORESCENCE products are designed, manufactured, and tested per ISO 9001

requirements. And every unit robustly built to the stringent requirements of ship surveyors such as CCS, BV, LR, GL, etc.





Product Description

Marine Rubber Inflatable Launching Ship Airbag  STRUCTURE

 Rubber Airbags, basic body consists of rubber layers, synthetic cord-reinforced rubber layers,

are kind of a cylindrical airbags with hemispherical heads at the both ends.All of these are

vulcanized together, and then compress air inside to enable in to roll.



ISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag





Marine Rubber Inflatable Launching Ship Airbag  MATERIALS

 An airbag is to be constructed of an outer rubber layer, one or more synthetic-tyre-cord layers, and an inner rubber layer. The arrangement of synthetic-tyre-cord reinforcement layers is shown in the picture below, all materials shall be vulcanized firmly.

ISO 9001 Certificate Marine Rubber Inflatable Launching Ship AirbagISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag



Applications

Marine Rubber Inflatable Launching Ship Airbag  APPLICATIONS

1.For ship upgrading, conversion or new/repair launching (Ship launching airbags)

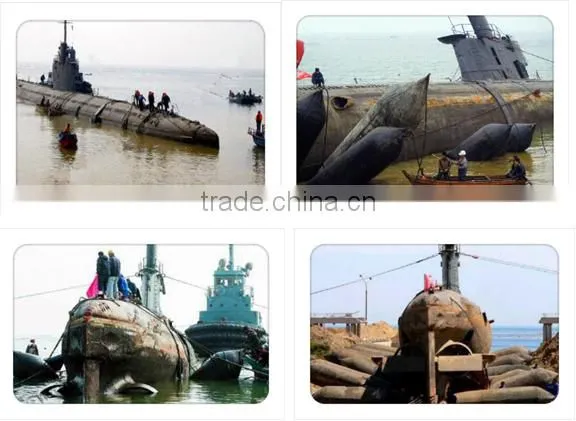

2.Marine airbag for salvaging sunken ship or heavy immersed steel structure
3.For hoisting and transporting heavy goods up to 10,000 tonnes structure on land
4.Rubber bag for ship ballast



ISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag





ISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag







Parameters

 Technical Parameters Table



Size

GUARANTEED WORKING PRESSURE

TYPE

D=0.8m

D=1.0m

D=1.2m

D=1.5m

D=1.8m

D=2.0m

(D=2.62ft)

(D=3.28ft)

(D=3.94ft)

(D=4.92ft)

(D=5.90ft)

(D=6.56ft)

FL-3 layers

0.13MPA

0.10MPA

0.09MPA

0.07MPA

0.06MPA

0.05MPA

(18.85psi)

(14.50psi)

(13.05psi)

(10.15psi)

(8.70psi)

(7.25psi)

FL-4 layers

0.17MPA

0.13MPA

0.11MPA

0.09MPA

0.08MPA

0.07MPA

(24.66psi)

(18.85psi)

(15.95psi)

(13.05psi)

(11.60psi)

(10.15psi)

FL-5 layers

0.21MPA

0.17MPA

0.14MPA

0.11MPA

0.09MPA

0.08MPA

(30.46psi)

(24.66psi)

(20.31psi)

(15.95psi)

(13.05psi)

(11.60psi)

FL-6 layers

0.25MPA

0.20MPA

0.17MPA

0.13MPA

0.11MPA

0.10MPA

(36.26psi)

(29.01psi)

(24.66psi)

(18.85psi)

(15.95psi)

(14.50psi)



Rubber Airbags Data











Classification

Ordinary Airbag

with 3,4 or 5 layers of cord fabric

High Bearing airbag

with 6,7or 8 layers of cord fabric

Super-bearing airbag

with 9,10 or more as customer requests

Diameter

0.6 to 2.8m or customizeddiameter

Valid Length

5m to 25m or others

Total Length

7m to 28m or as your requirements

Lifting Capacity

About 3T to 60T buoyancy capacity

Effective Length(m)



Marine Salvage Airbags Buoyancy(tons)



D=1m

D=1.2m

D=1.5m

D=1.8m

D=2m

5



3.93

5.65

8.84

12.72

15.71

6



4.71

6.79

10.6

15.27

18.85

7



5.5

7.92

12.37

17.81

21.99

8



6.28

9.05

14.14

20.36

25.13

9



7.07

10.18

15.9

22.9

28.27

10



7.85

11.31

17.67

25.45

31.42

11



8.64

12.44

19.44

27.99

34.56

12



9.42

13.57

21.21

30.54

37.7

13



10.21

14.7

22.97

33.08

40.84

14



11

15.83

24.74

35.63

43.98

15



11.78

16.96

26.51

38.17

47.12

16



12.57

18.1

28.27

40.72

50.27

17



13.35

19.23

30.04

43.26

53.41

18



14.14

20.36

31.81

45.8

56.55



                                                                         Ship Salvage Buoyancy Capacity







  Certificate

ISO 9001 Certificate Marine Rubber Inflatable Launching Ship Airbag



We promise you  a good quality, reasonable price and in-time delivery. We will produce the marine rubber airbags according to your needs. Please contact us for more information!
