Home > Industrial Equipment & Components > Engine & Part > Engine Parts > Marine Airbag Ship Fender

Marine Airbag Ship Fender

Name: Marine Airbag Ship Fender
Brand: FLORESCENCE
SKU: 139756857

US$ 2,000 - 2,000 MOQ: 2 Sets

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

FLORESCENCE

Model Number:

FL-EL marine rubber airbag

Contact Supplier Request Quote Chat Now

Qingdao Florescence Rubber Products Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name FLORESCENCE

Model Number FL-EL marine rubber airbag

Part Other

Company Information

FLORESCENCE is a leading professional manufacturer of pneumatic rubber

fenders,foam fenders, various marine rubber fenders, and ship launching&

salvage rubber airbags.

FLORESCENCE products are designed, manufactured, and tested per ISO 9001

requirements. And every unit robustly built to the stringent requirements of ship

surveyors such as CCS, BV, LR, GL, etc.

Product Description

marine rubber airbag STRUCTURE

Rubber Airbags, basic body consists of rubber layers, synthetic cord-reinforced rubber layers,

are kind of a cylindrical airbags with hemispherical heads at the both ends.All of these are

vulcanized together, and then compress air inside to enable in to roll.

marine rubber airbag MATERIALS

An airbag is to be constructed of an outer rubber layer, one or more synthetic-tyre-cord layers, and an inner rubber layer. The arrangement of synthetic-tyre-cord reinforcement layers is shown in the picture below, all materials shall be vulcanized firmly.

Applications

Marine Rubber Fender APPLICATIONS

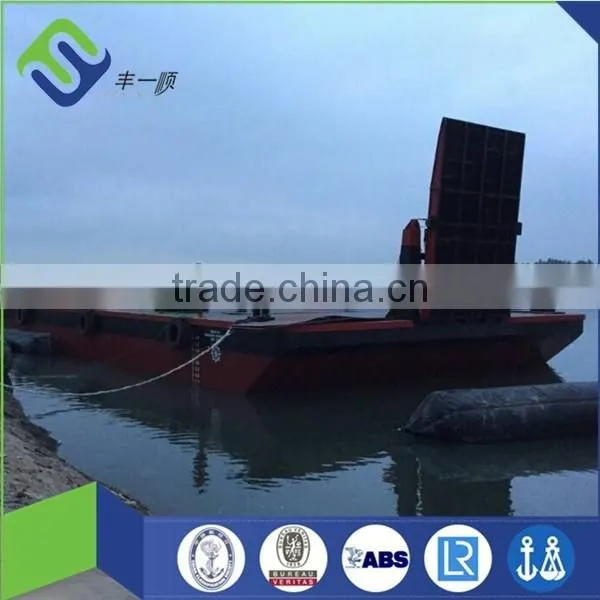

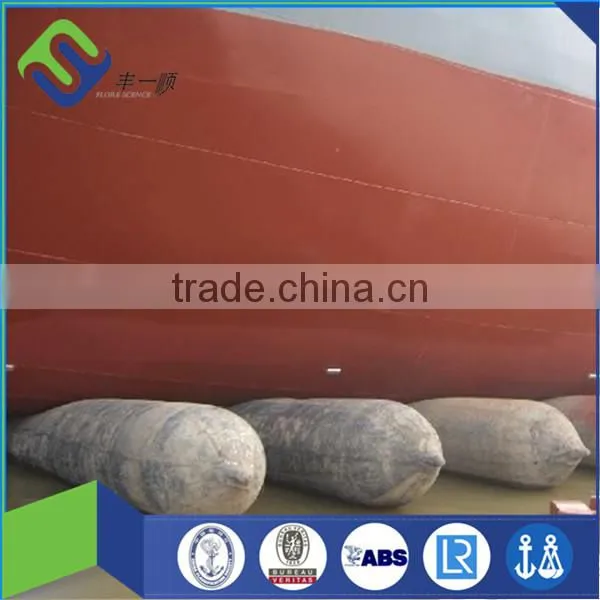

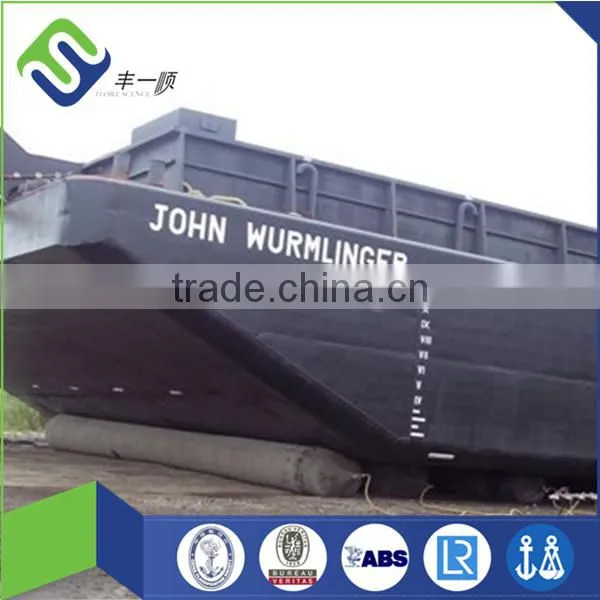

1.For ship upgrading, conversion or new/repair launching (Ship launching airbags)
2.Marine airbag for salvaging sunken ship or heavy immersed steel structure
3.For hoisting and transporting heavy goods up to 10,000 tonnes structure on land
4.Rubber bag for ship ballast

Parameters

Technical Parameters Table

Size	GUARANTEED WORKING PRESSURE
TYPE	D=0.8m	D=1.0m	D=1.2m	D=1.5m	D=1.8m	D=2.0m
TYPE	(D=2.62ft)	(D=3.28ft)	(D=3.94ft)	(D=4.92ft)	(D=5.90ft)	(D=6.56ft)
FL-3 layers	0.13MPA	0.10MPA	0.09MPA	0.07MPA	0.06MPA	0.05MPA
FL-3 layers	(18.85psi)	(14.50psi)	(13.05psi)	(10.15psi)	(8.70psi)	(7.25psi)
FL-4 layers	0.17MPA	0.13MPA	0.11MPA	0.09MPA	0.08MPA	0.07MPA
FL-4 layers	(24.66psi)	(18.85psi)	(15.95psi)	(13.05psi)	(11.60psi)	(10.15psi)
FL-5 layers	0.21MPA	0.17MPA	0.14MPA	0.11MPA	0.09MPA	0.08MPA
FL-5 layers	(30.46psi)	(24.66psi)	(20.31psi)	(15.95psi)	(13.05psi)	(11.60psi)
FL-6 layers	0.25MPA	0.20MPA	0.17MPA	0.13MPA	0.11MPA	0.10MPA
FL-6 layers	(36.26psi)	(29.01psi)	(24.66psi)	(18.85psi)	(15.95psi)	(14.50psi)

Rubber Airbags Data

Classification		Ordinary Airbag			with 3,4 or 5 layers of cord fabric
		High Bearing airbag			with 6,7or 8 layers of cord fabric
		Super-bearing airbag			with 9,10 or more as customer requests
Diameter		0.6 to 2.8m or customizeddiameter
Valid Length		5m to 25m or others
Total Length		7m to 28m or as your requirements
Lifting Capacity		About 3T to 60T buoyancy capacity
Effective Length(m)	Marine Salvage Airbags Buoyancy(tons)
	D=1m		D=1.2m	D=1.5m		D=1.8m	D=2m
5	3.93		5.65	8.84		12.72	15.71
6	4.71		6.79	10.6		15.27	18.85
7	5.5		7.92	12.37		17.81	21.99
8	6.28		9.05	14.14		20.36	25.13
9	7.07		10.18	15.9		22.9	28.27
10	7.85		11.31	17.67		25.45	31.42
11	8.64		12.44	19.44		27.99	34.56
12	9.42		13.57	21.21		30.54	37.7
13	10.21		14.7	22.97		33.08	40.84
14	11		15.83	24.74		35.63	43.98
15	11.78		16.96	26.51		38.17	47.12
16	12.57		18.1	28.27		40.72	50.27
17	13.35		19.23	30.04		43.26	53.41
18	14.14		20.36	31.81		45.8	56.55

Ship Salvage Buoyancy Capacity

Certificate

We promise you a good quality, reasonable price and in-time delivery. We will produce the marine rubber airbags according to your needs. Please contact us for more information!
