Labor-saving, cost-saving, time-saving, flexible, environmental, and safe.
We could manufacture launching marine rubber airbag diameter from 0.6m up to 2.8m, length from 5.0m up to 27.0m, and layers from 3 to 8 layers.
If you are not sure about the Salvage ship airbag equipment size needed, you could tell me
where do you use them, for ship launching, landing, marine salvage or caisson lifting? And the information( length, width, weight) of your target ship. We will recommend you a most suitable airbag size.
CONSTRUCTION

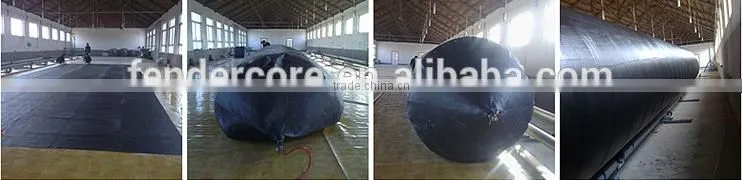

Florescence salvage ship airbag equipment is consist of rubber layers, synthetic cord reinforced rubber layers, and iron terminals. it is a cylindrical airbag with hemispherical heads at the both ends. All of these are vulcanized together. There are terminal iron grip hook on one head, and pipeline accessories of air inflation on the other head.
MATERIAL
An airbag is to be constructed of an outer rubber layer, one or more synthetic-tyre-cord layers, and an inner rubber layer. The arrangement of synthetic-tyre-cord reinforcement layers is shown in the picture below, all materials shall be vulcanized firmly.
HOW TO LAUNCH AN MARINE?

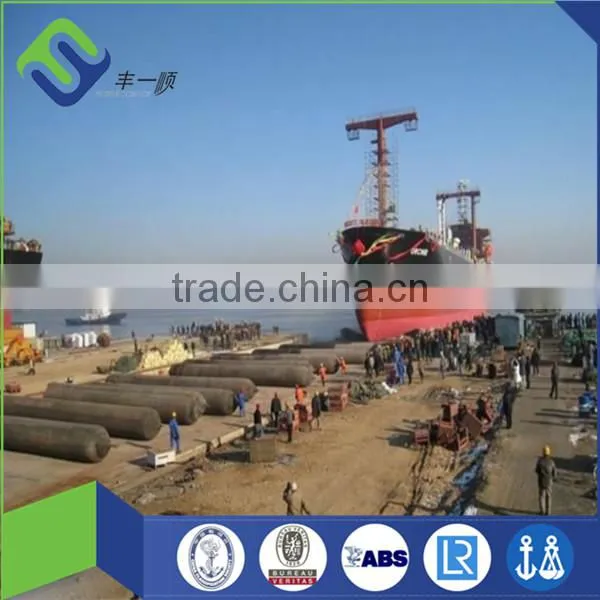

Step1: Prepare the launching slipway and related workers. - As per calculation, select and check the appropriate marine airbags and quantity. Tidy up the launching slipway. Fix the ship by winch and anchors. Prepare all the necessary equipments.
Step2: Taking out all standing blocks under stern and middle one by one, and put in airbags. - The distance between two rows should be confirmed as per the calculation.
Step3: Taking out all standing blocks under the prow. - Run the winch and release the cable. Let the ship launch to water.
Step4: After launching, check all the deckhouse to confirm if there is any problem. Meanwhile, retrieving all the airbags.

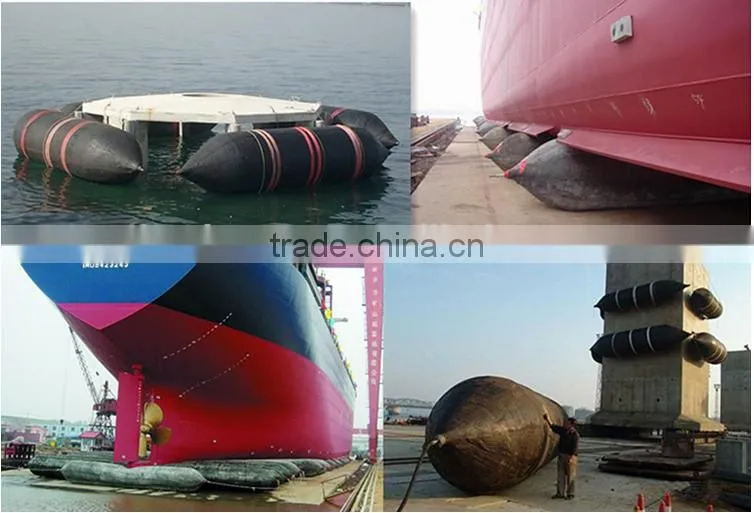

APPLICATIONS
- ship launching, upgrading, lifting and salvage.
- floating bridge and dock construction.
- rescue and remove of wrecked ship.
- setting up temporary pontoon bridge pier and water transport channel.
- blocking debacle of anti-flood and anti typhoon dam.
- applying to short distance transport of the bridge, concrete piers, drilling equipment
OUR ADVANTAGES
1.Dia1.2/1.5/1.8m airbag stockavailable(big discount),quick delivery.
2.Lifespan: 65-80 times,10 years.
3.Warrenty:24 months.
4.Certificates:CCS, BV, LR, ABS.
5.Provide with repair rubber patch.
6.Material:natural rubber, synthetic cord reinforced rubber layers.
7.Factory has 23 years' experience.
TECHNICAL PARAMETERS
GUARANTEED WORKING PRESSURE | ||||||
Type |
D=0.8m |
D=1.0m |
D=1.2m |
D=1.5m |
D=1.8m |
D=2.0m |
3 layers |
0.13MPA |
0.10MPA |
0.09MPA |
0.07MPA |
0.06MPA |
0.05MPA |
4 layers |
0.17MPA |
0.13MPA |
0.11MPA |
0.09MPA |
0.08MPA |
0.07MPA |
5 layers |
0.21MPA |
0.17MPA |
0.14MPA |
0.11MPA |
0.09MPA |
0.08MPA |
6 layers |
0.25MPA |
0.20MPA |
0.17MPA |
0.13MPA |
0.11MPA |
0.10MPA |
7 layers |
0.29MPA |
0.23MPA |
0.20MPA |
0.15MPA |
0.13MPA |
0.12MPA |
8 layers |
0.33MPA |
0.26MPA |
0.23MPA |
0.17MPA |
0.15MPA |
0.14MPA |
Our salvage ship airbag equipment are very popular in Southeast Asia, Europe and South America, supporting customers like Chinese navy and Italian Navy.
Please feel free to contact us for more information.
