Specifications
High quality ship moving marine rubber air bags1.54% natural rubber
2.CCS&BV certificate
3.ISO17357 certificate

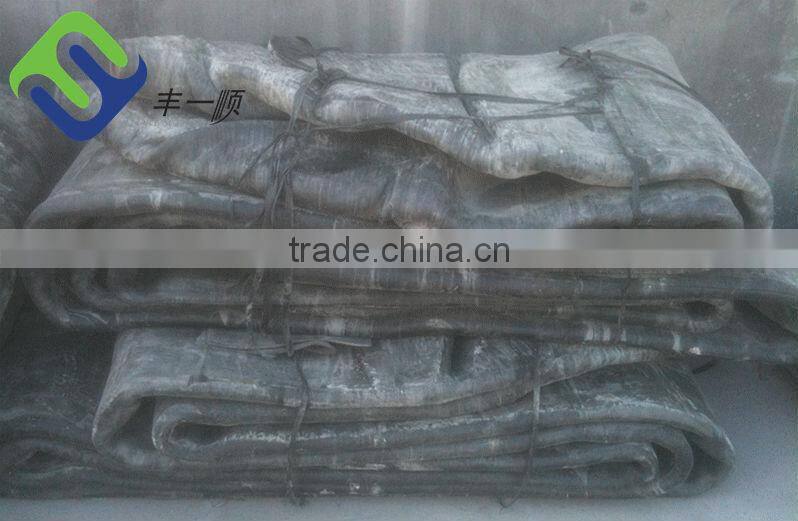

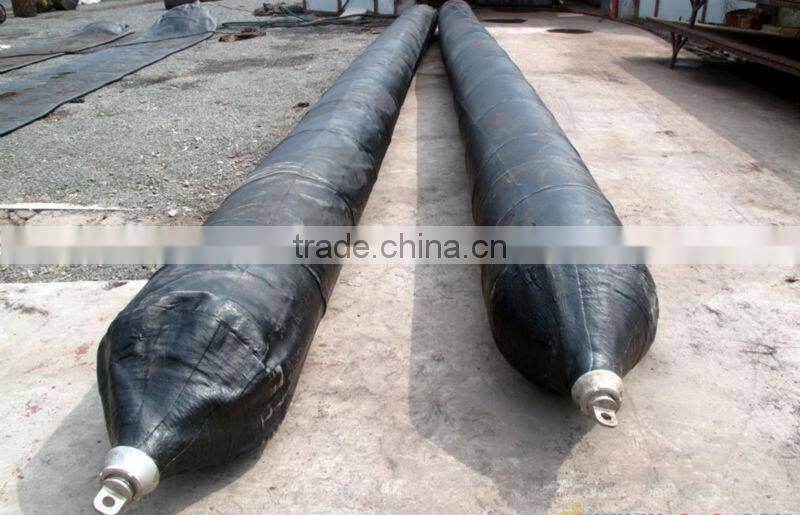

High quality ship moving marine rubber air bags
Introduction
Marine ship airbags are also known as air balloon, inflatable bags, roller bags, air lifting bags,
salvage bags. Airbags now are used for ship launching, loading, and floating. They are widely
used in cargo boat/ship/vessel launching and landing, lifting and moving sunken ships, and
salvaging stranded boats. Air bags have the benefit of not only saving labor and time, but also
investment costs. Additionally they are flexible, portable, and dependable. Therefore, airbags
are widely used in slipping of ships and boats of all sizes.
Specifications
1. The standard specification of natural rubber airbag.
You can choose the required diameter and effective length to meet your projects
(1)Diameter: from 0.8m to 2.0m.
(2)Effective length: from 6.0m to 20.0m.
The above specifications only are our standard specifications arrange. Can be supplied
customized size upon customers' request.
2. The standard number of layers
The numbers of layers, which mean the number of natural -tire-cord layer, usually, our airbags
contain from 3 to 8 layers types. Other type is still available upon
your request to confirm the safety working pressure.
Advantages
1 High strength
2 Wear resistance and anti-aging
3 Good air tightness
4 Safety and reliability
5 High kneading & compressing resistance and damping capacity
6 Design different sizes according to client's request
7 Good raw material-cord fabric makes us win warm praise from clients.
Standard specifications
Diameter (D): |
From 0.8m to 2.4m |
Effective Length (EL): |
From 6.0m to 20.0m |
Total Length (TL): |
From 7.0m to 21.5m |
Standard Number of Layers: |
Usually 4-10 layers |
Loading Capacity: |
About 10-40 T/M |
Guaranteed working pressure
type |
D=0.8m |
D=1.0m |
D=1.2m |
D=1.5m |
D=1.8m |
D=2.0m |
3 layers |
0.13MPA |
0.10MPA |
0.09MPA |
0.07MPA |
0.06MPA |
0.05MPA |
4 layers |
0.17MPA |
0.13MPA |
0.11MPA |
0.09MPA |
0.08MPA |
0.07MPA |
5 layers |
0.21MPA |
0.17MPA |
0.14MPA |
0.11MPA |
0.09MPA |
0.08MPA |
6 layers |
0.25MPA |
0.20MPA |
0.17MPA |
0.13MPA |
0.11MPA |
0.10MPA |
7 layers |
0.29MPA |
0.23MPA |
0.20MPA |
0.15MPA |
0.13MPA |
0.12MPA |
8 layers |
0.33MPA |
0.26MPA |
0.23MPA |
0.17MPA |
0.15MPA |
0.14MPA |
Any question, please feel free to contact me.-Alice(Skype:AliceZhang920218)
