Home > Products > chain block > Bridge building equipment 2 ton 5 ton vital type chain block

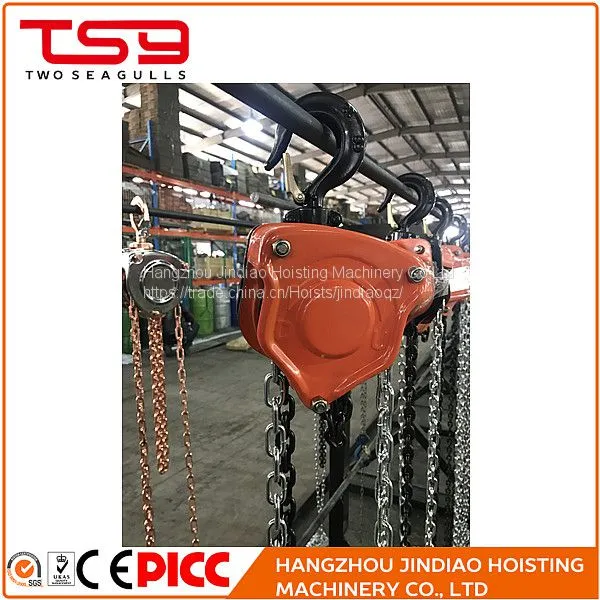

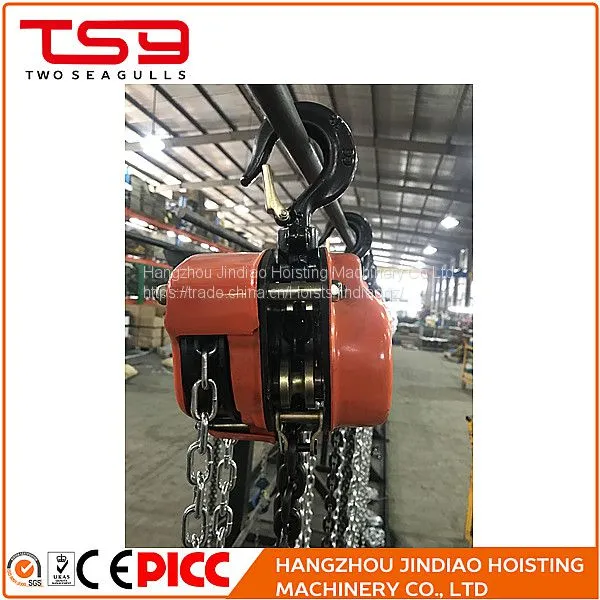

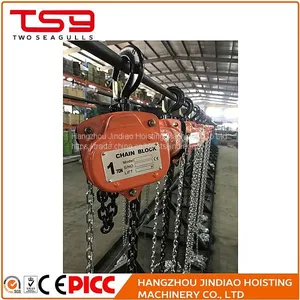

Bridge building equipment 2 ton 5 ton vital type chain block
USD $20 - $30
/ Piece
1 Piece(Min.Order)
- 2000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T L/C Other
- 40 days
You May Like
-
Explosion proof electric hoist with curved rail on top of LNG storage tank
-
Explosion proof electric hoist with curved rail on top of LNG storage tank
-
Low Head Room Wire Rope Electric Hoist
-
Stage Chain Hoist Fashion Mini Cool Design
-
Wholesale manual hand operated hoist HSZ chain pulley block hoist for factory
-
manual door frame pallet stacker
Product Details
| Brand Name: | TSG | Place of Origin: | China | Model Number: | HSZ-A |
| Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 12 monthes |
| Usage: | Construction Hoist | Condition: | New | Power Source: | Hand Chain |
| Lift Speed: | by hand | Maximum Lifting Height: | 12M | Maximum Lifting Weight: | 50T |
| Sling Type: | Chain |
Product Description
Bridge building equipment 2 ton 5 ton vital type chain block
| Model | Capacity(T) | Standard Lift(M) | Running test(T) | Max load effort(N) | Fall No.s | Dia load chain(mm) | N.W.(kg) | Packing size(cm) |
| HSZ-A-0.5T | 0.5 | 3 | 0.75 | 350 | 1 | 5 | 8.4 | 22*14*16 |
| HSZ-A-1T | 1 | 3 | 1.5 | 330 | 1 | 6.3 | 12 | 25*19*16 |
| HSZ-A-1.5T | 1.5 | 3 | 2.25 | 384 | 1 | 7.1 | 16.2 | 33*24*19 |
| HSZ-A-2T | 2 | 3 | 3 | 365 | 1 | 8 | 20 | 33*24*19 |
| HSZ-A-3T | 3 | 3 | 4.5 | 360 | 2 | 7.1 | 24 | 34.5*24*16 |
| HSZ-A-5T | 5 | 3 | 7.5 | 410 | 2 | 9 | 41 | 40*30*19 |
| HSZ-A-10T | 10 | 3 | 15 | 410 | 4 | 9 | 79 | 48*42*18.5 |
| HSZ-A-15T | 15 | 3 | 22.5 | 435 | 6 | 9 | 120 | 69*56*20 |
| HSZ-A-20T | 20 | 3 | 30 | 435*2 | 8 | 9 | 193 | 78*68*20 |
| HSZ-A-30T | 30 | 3 | 45 | 43582 | 12 | 9 | 220 | 85*67*30 |
| HSZ-A-50T | 50 | 3 | 75 | 435*2 | 22 | 9 | 1092 | 110*100*130 |
Features:
Japanese technology,convex shell
Low alloy steel plate structure
With G80 chain
Steady puling and rotation
With double pawl,light hand pulling force
With the roller bearing
With CE approved
Working room:
We exporting chain block and lever hoist with high quality low price to USA,Europe,Mid-East etc.
Established since year 2012,three bearings in whole machinery,overload protection device and ball roller bearings available.
| Three bearings | Overload protection device | Ball roller beaings |
| | |
