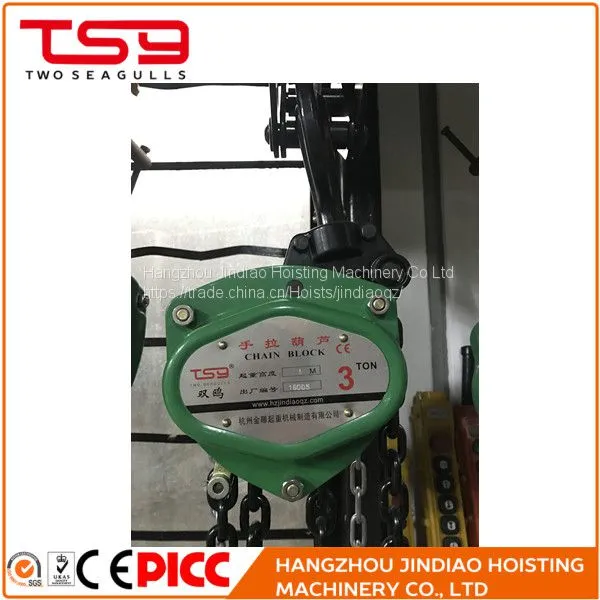

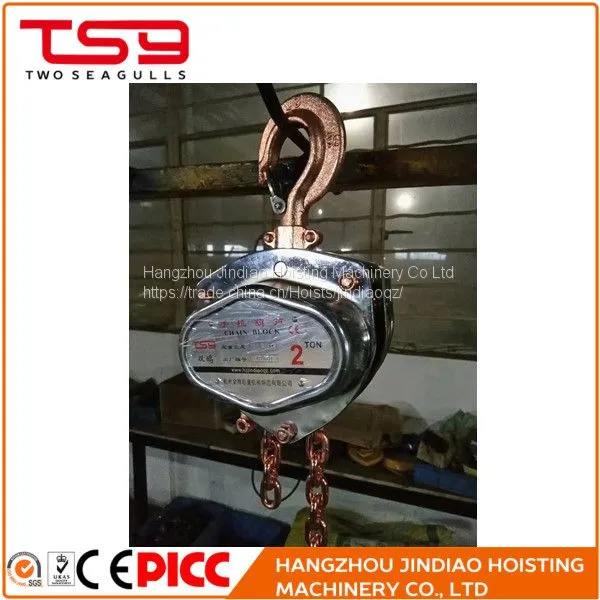

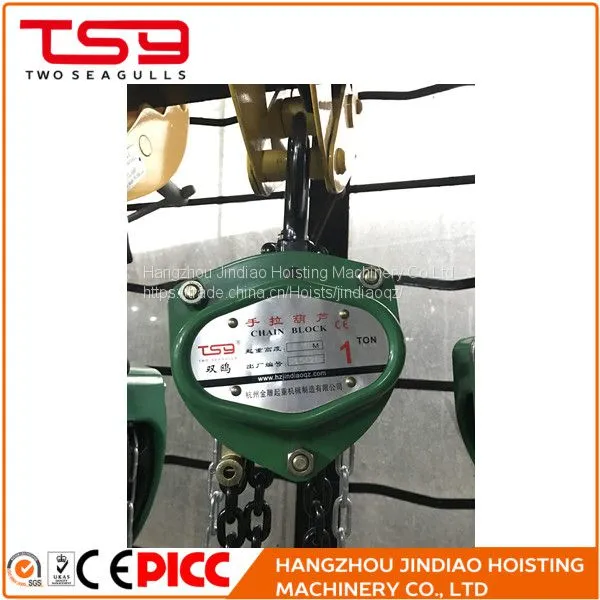

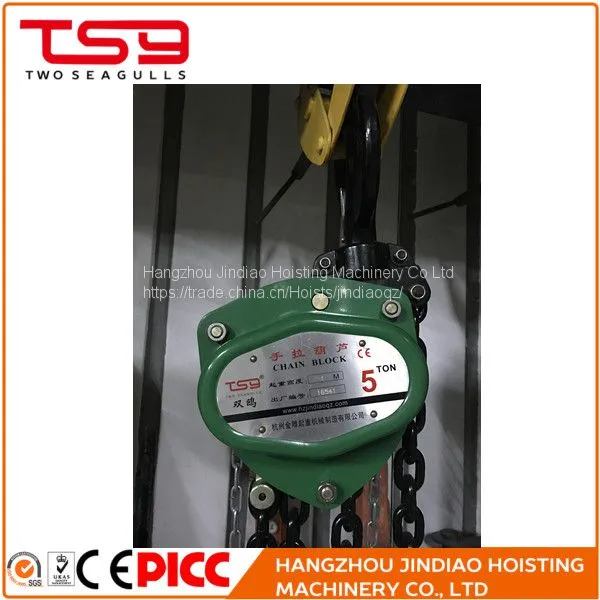

Bridge construction machine 5 ton vital types of chain block
Features:
With self intellectual property rights.
Multi-point supporting,low fault rate.
With double pawl,increase the safety factor in 2 times.
All nuts in anti-slip nuts.
Thick cover with the convex rib process,protect the inside parts effectively.
Hand chain cover is in unique curled edge to prevent the noise and seizure.
Integral gear increases the service life.
With CE approved.
Option:Overload protection device available.
| Model | Capacity(T) | Standard lift(M) | Running test(T) | Max load effort(N) | Fall numbers | Dia of load chain(mm) | N.W.(kg) |
| HSZ-A2-1T | 1 | 2.5 | 1.5 | 330 | 1 | 6 | 11 |
| HSZ-A2-1.5T | 1.5 | 2.5 | 2.25 | 360 | 1 | 8 | 16.2 |
| HSZ-A2-2T | 2 | 3 | 3 | 365 | 1 | 8 | 18.5 |
| HSZ-A2-3T | 3 | 3 | 4.5 | 385 | 2 | 8 | 25.6 |
| HSZ-A2-5T | 5 | 3 | 7.5 | 435 | 2 | 10 | 42.8 |
| HSZ-A2-10T | 10 | 3 | 15 | 435 | 4 | 10 | 79.5 |
| HSZ-A2-20T | 20 | 3 | 30 | 435*2 | 8 | 10 | 193 |
| HSZ-A2-30T | 30 | 3 | 45 | 435*2 | 12 | 10 | 220 |
| HSZ-A2-50T | 50 | 3 | 75 | 435*2 | 22 | 10 | 1092 |
Our factory view:
We-Hangzhou Jindiao Hoisting Machinery Co Ltd have so skillful technology of designing/producing/repaireing/texting experiance since year 1930 when my boss's grandpa was young.
New design fashionable shapes and high quality with competitive price are our most advantages at present.
The safe principle when its using is always the most workikng rules in our company
If you want,you can see our company's facebook,it with the catalogue and chain block and lever hoist asseble vedios:
/jindiaohoisting Our website:
Our packing ways:
FAQ:
1.Can I have a sample free of charge?
Sorry can not,but can be deducted the charges in your orders future.
If there is a agent of yours nearside,we can hold the courier express charge or if need air freight,the air charge need freight collected.
2.Where is your loading port available?
Ningbo port or Shanghai port,China
3.What trade terms you available?
EXW,FOB,CFR,CIF are the most acceptable terms way.
4.What payment terms you available?
TT(30% advance,balance before loading),we will send you the loading images or L/C at sight.
5.Can I ask my agent who in China help for the payment in RMB?
Yes,you can.
6.What about the delivery time?
40 days after deposit in our account.
7.Can you help for the original certifications?
Yes,we can help for what certification you asked,just like FA,FB,FE,CO etc...free of charge.
