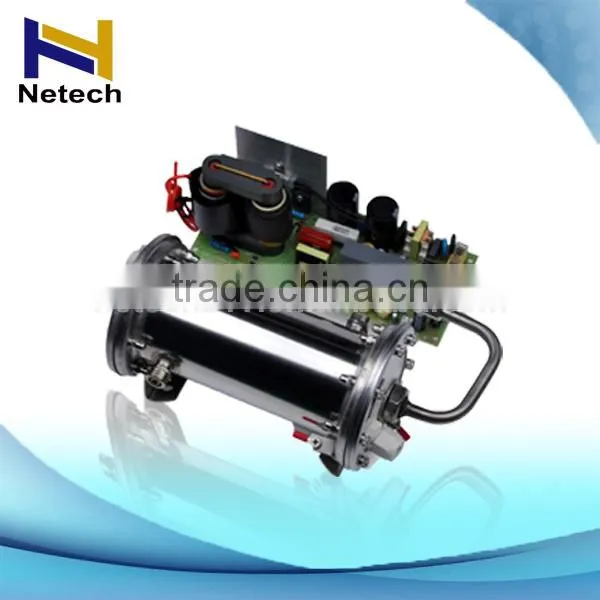

Help CenterFactory Price Water Cooling 18g 30g 40g Ozone Generator Parts
Related Products
-
High Concentration Ozone Generator Water Cooling Ozone TubeNegotiableMOQ: 1 Piece -
High Ozone Concentration Water Cooling Tube Ozon Generator PartsNegotiableMOQ: 1 Piece
-
Water Cooling Ozone Tube Reverse Osmosis Pure Water Treatment EquipmentNegotiableMOQ: 1 Piece
-
Green Technology 10G-60G AC Ozone Generator Parts With Transformer Cooling TowerNegotiableMOQ: 1 Set
-
2013 New Enamel Ozone Generator Parts With Water SystemNegotiableMOQ: 1 Piece
Specifications
ozone generator partsncentration up to 90%
2.20%-100%adjustable range
3.water cooling
4.high efficiency
NT-PC 10-60G/Hr
Item |
Unit |
CH-PC10G |
CH-PC20G |
CH-PC30G |
CH-PC50G |
CH-PC60G |
Oxygen flow rate |
LPM |
1-3 |
2-6 |
3-10 |
5-15 |
8-18 |
Ozone concentration |
Mg/L |
88-58 |
88.6-57 |
87.5-56.8 |
90-56 |
90-60 |
Ozone output |
G/Hr |
5.28-10.44 |
10.63-20.52 |
15.75-34.08 |
27-50.40 |
43.2-64.80 |
Power |
Kw |
0.2 |
0.28 |
0.38 |
0.55 |
0.75 |
Output frequency |
KHz |
2.4 |
||||
High voltage output |
V |
2800 |
||||
Cooling method |
Water cooling for internal & external electrodes |
|||||
Cooling water flow rate |
LPM |
30 |
48 |
|||
Cooling water temperature |
°C |
35 |
||||
Fitting size |
mm |
1.Air inlet & ozone outlet: EDφ8mm 2.Cooling water: EDφ10mm |
||||
Adjustable range |
% |
20-100 |
||||
Power supply |
V/Hz |
110/220V 50/60HZ |
||||
Fuse |
A |
3 |
5 |
10 |
||
Ozone tube dimension |
mm |
250×105×125 |
310×105×125 |
430×105×125 |
575×105×125 |
778×105×125 |
Mounting hole foot print of ozone tube |
mm |
127×44(φ5) |
195×44(φ5) |
320×44(φ5) |
450×44(φ5) |
555×44(φ5) |
Power supply dimension |
mm |
200×100×85 |
190×150×85 |
210×150×80 |
||
Mounting hole foot print of power supply |
mm |
155×127 |
155×127 |
192×177 |
192×177 |
243×208 |
Ozone tube weight |
Kg |
2.50 |
3.00 |
3.60 |
4.90 |
5.45 |
Power supply weight |
Kg |
1 |
2.40 |
|||

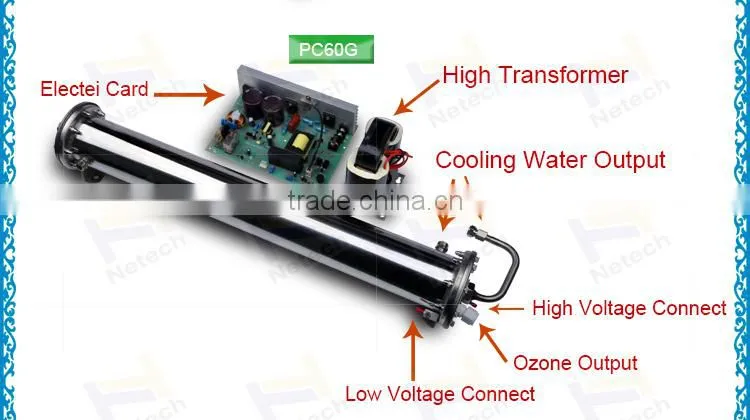

Factory price water cooling 18g 30g 40g ozone generator parts
<Working conditions
<Ambient temperature: 32°C, Oxygen concentration: >99%, Dew point: >-45,
<cooling water output temperature: 35°C

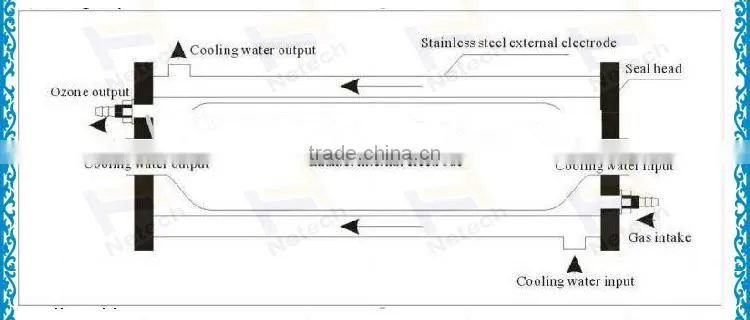

<Water cooled for internal & external electrodes, effective prevent high temperature rising <when the tube is discharging, for ensuring high ozone concentration output.
<3.Adjustable ozone output: 20-100%.

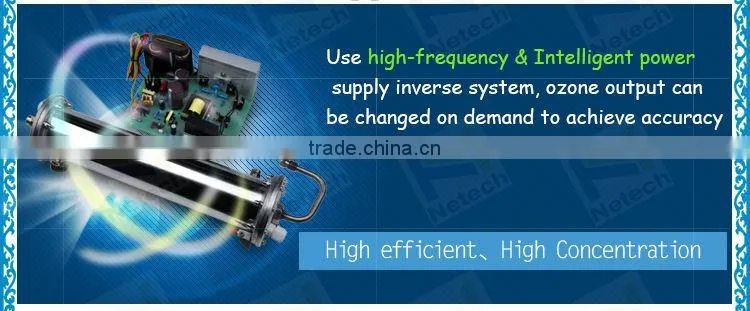

<Use high-frequency & Intelligent power supply inverse system, ozone output can be <changed on demand to achieve accuracy control.
<4.High ozone concentration & output
<Quality control
<Every procedure has personnel inspection.
<All the products must be tested and qualified before packaging.
Factory price water cooling 18g 30g 40g ozone generator parts
<After sales service
<We provide 12month free maintenance.
<The buyer should return the product in the original conditions to us and should
<bear the shipping costs for return.
<If any part is required to be replaced,
<the buyer should also pay for the costs of the parts to be replaced.
