Specifications

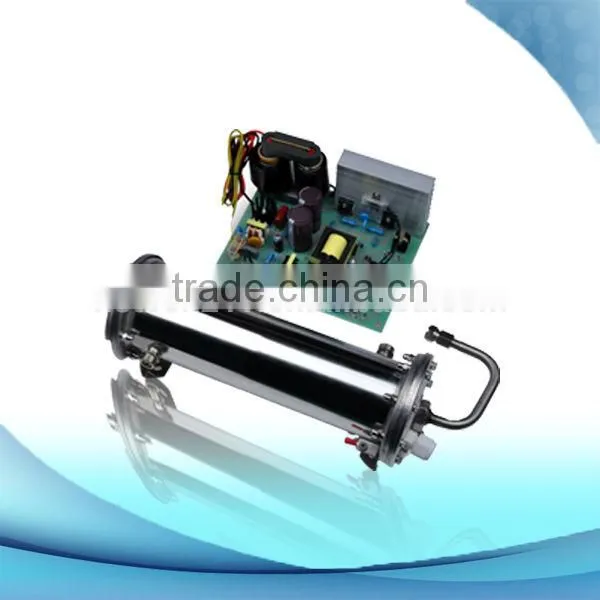

10g enamel ozone generator parts with water system1.20-100% adjustable ozone
ncentraion:58-90MG/L
3.water cooling
Item |
Unit |
NT-PC10G |
NT-PC20G |
NT-PC30G |
NT-PC50G |
NT-PC60G |
Oxygen flow rate |
LPM |
1-3 |
2-6 |
3-10 |
5-15 |
8-18 |
Ozone concentration |
Mg/L |
88-58 |
88.6-57 |
87.5-56.8 |
90-56 |
90-60 |
Ozone output |
G/Hr |
5.28-10.44 |
10.63-20.52 |
15.75-34.08 |
27-50.40 |
43.2-64.80 |
Power |
Kw |
0.2 |
0.28 |
0.38 |
0.55 |
0.75 |
Output frequency |
KHz |
2.4 |
||||
High voltage output |
V |
2800 |
||||
Cooling method |
Water cooling for internal & external electrodes |
|||||
Cooling water flow rate |
LPM |
30 |
48 |
|||
Cooling water temperature |
°C |
35 |
||||
Fitting size |
mm |
1.Air inlet & ozone outlet: EDφ8mm 2.Cooling water: EDφ10mm |
||||
Adjustable range |
% |
20-100 |
||||
Power supply |
V/Hz |
110/220V 50/60HZ |
||||
Fuse |
A |
3 |
5 |
|||
Ozone tube dimension |
mm |
250×105×125 |
310×105×125 |
430×105×125 |
575×105×125 |
778×105×125 |
Mounting hole foot print of ozone tube |
mm |
127×44(φ5) |
195×44(φ5) |
320×44(φ5) |
450×44(φ5) |
555×44(φ5) |
Power supply dimension |
mm |
200×100×85 |
190×150×85 |
210×150×80 |
||
Mounting hole foot print of power supply |
mm |
155×127 |
155×127 |
192×177 |
192×177 |
243×208 |
Ozone tube weight |
Kg |
2.50 |
3.00 |
3.60 |
4.90 |
5.45 |
Power supply weight |
Kg |
1 |
2.40 |
|||
Working conditions:
Ambient temperature: 32°C, Oxygen concentration: >99%, Dew point: >-45, cooling water output
temperature: 35°C
1. Electrodes:
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona
resistance and machinery anti-force capacity are stronger than glass, ceramic material.
Uniformity air gap between enamel coating internal electrode and stainless stee l external electrode, it produces high
concentration ozone output. It uses insulation materials for connections, for preventing creepage.
2. Cooling way:
Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube
is discharging, for ensuring high ozone concentration output.
3. Adjustable ozone output: 20-100%:
Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on
demand to achieve accuracy control.
4. High ozone concentration & output
High Concentration corona discharge Ozone Generator Parts For Water Treatment plant
High Concentration corona discharge Ozone Generator Parts For Water Treatment plant
Function :
1. Aquactulture,Aquarium,Fish farming Water treatment
2. Swimming pools Water treatment
3. Sewage water treatment
4. Water Disinfection& sterilization
corona discharge Ozone Generator Parts
High Concentration corona discharge Ozone Generator Parts For Water Treatment plant
High Concentration corona discharge Ozone Generator Parts For Water Treatment plant
