Water Cooling Ozone Tube Reverse Osmosis Pure Water Treatment Equipment

Water Cooling Ozone Tube Reverse Osmosis Pure Water Treatment Equipment thumbnail-1
Water Cooling Ozone Tube Reverse Osmosis Pure Water Treatment Equipment photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
netech
Model Number:
NT-PC
Contact Supplier Request Quote Chat Now
Guangzhou Netech Environmental Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name netech
Model Number NT-PC

Specifications

water treatment equipment:
1.20-100% adjustable ozone
2.High concentraion: 58-90MG/L
3.water cooling
4.Enamel material.

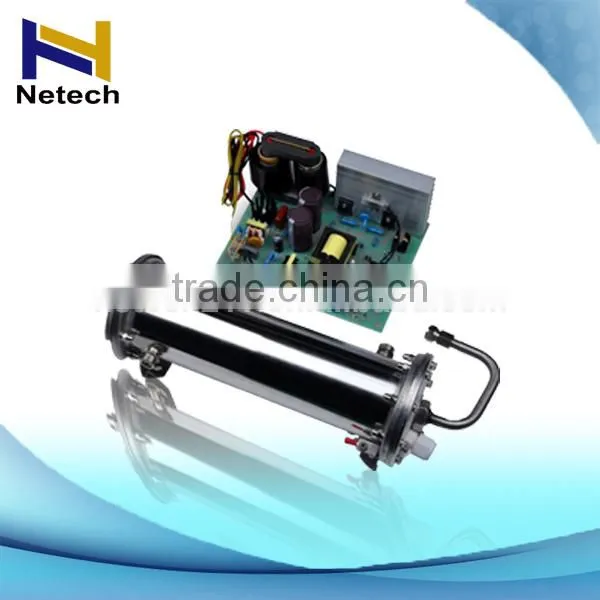

Water cooling ozone tube reverse osmosis pure water treatment equipment
-------Model NO.:NT-PC

Water cooling ozone tube reverse osmosis pure water treatment equipment
Water cooling ozone tube reverse osmosis pure water treatment equipment
Water cooling ozone tube reverse osmosis pure water treatment equipment
Water cooling ozone tube reverse osmosis pure water treatment equipment

reverse osmosis pure water treatment equipment

 Specification


Item

Unit

NT-PC10G

NT-PC20G

NT-PC30G

NT-PC50G

NT-PC60G

Oxygen flow rate

LPM

1-3

2-6

3-10

5-15

8-18

Ozone concentration

Mg/L

88-58

88.6-57

87.5-56.8

90-56

90-60

Ozone output

G/Hr

5.28-10.44

10.63-20.52

15.75-34.08

27-50.40

43.2-64.80

Power

Kw

0.2

0.28

0.38

0.55

0.75

Output frequency

KHz

2.4

High voltage output

V

2800

Cooling method

Water cooling for internal & external electrodes

Cooling water flow rate

LPM

30

48

Cooling water temperature

°C

35

Fitting size

mm

1.Air inlet & ozone outlet: EDφ8mm                                                   2.Cooling water: EDφ10mm

Adjustable range

%

20-100

Power supply

V/Hz

110/220V 50/60HZ

Fuse

A

3

5

Ozone tube dimension

mm

250×105×125

310×105×125

430×105×125

575×105×125

778×105×125

Mounting hole foot print of ozone tube

mm

127×44(φ5)

195×44(φ5)

320×44(φ5)

450×44(φ5)

555×44(φ5)

Power supply dimension

mm

200×100×85

190×150×85

210×150×80

Mounting hole foot print of power supply

mm

155×127

155×127

192×177

192×177

243×208

Ozone tube weight

Kg

2.50

3.00

3.60

4.90

5.45

Power supply weight

Kg

1

2.40



Working conditions:


Ambient temperature: 32°C, Oxygen concentration: >99%, Dew point: >-45, cooling water output
temperature: 35°C



1. Electrodes:


Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona
resistance and machinery anti-force capacity are stronger than glass, ceramic material.

Uniformity air gap between enamel coating internal electrode and stainless stee l external electrode, it produces high
concentration ozone output. It uses insulation materials for connections, for preventing creepage.



 2. Cooling way:


Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube
is discharging, for ensuring high ozone concentration output.



 3. Adjustable ozone output: 20-100%:





 Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on
demand to achieve accuracy control.
4. High ozone concentration & output



reverse osmosis pure water treatment equipment





Water cooling ozone tube reverse osmosis pure water treatment equipment

reverse osmosis pure water treatment equipment

Function :

1. Aquactulture,Aquarium,Fish farming Water treatment

2. Swimming pools Water treatment

3. Sewage water treatment

4. Water Disinfection& sterilization



Water cooling ozone tube reverse osmosis pure water treatment equipmentWater cooling ozone tube reverse osmosis pure water treatment equipment

Water cooling ozone tube reverse osmosis pure water treatment equipmentreverse osmosis pure water treatment equipment

Water cooling ozone tube reverse osmosis pure water treatment equipmentWater cooling ozone tube reverse osmosis pure water treatment equipmentWater cooling ozone tube reverse osmosis pure water treatment equipment

Water cooling ozone tube reverse osmosis pure water treatment equipment

Water cooling ozone tube reverse osmosis pure water treatment equipment

Water cooling ozone tube reverse osmosis pure water treatment equipmentWater cooling ozone tube reverse osmosis pure water treatment equipment
