Home > Industrial Equipment & Components > Welding Equipment > Plastic Welder > Hot Sale 800W Hdpe Pvc Welding Machine Ldpe Welder

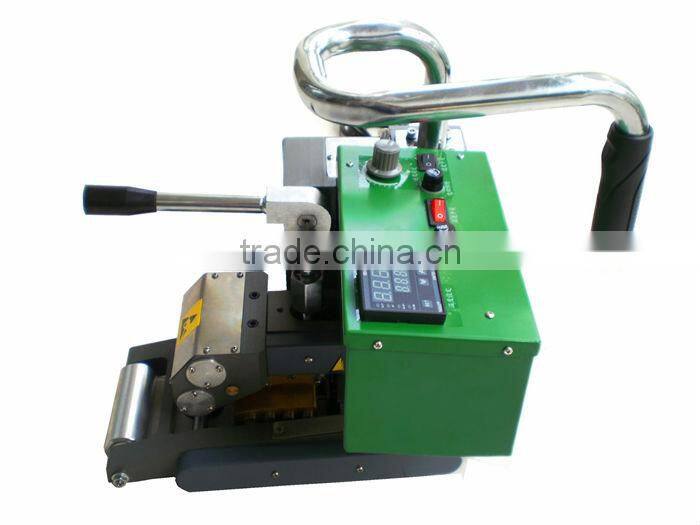

Hot Sale 800W Hdpe Pvc Welding Machine Ldpe Welder

Name: Hot Sale 800W Hdpe Pvc Welding Machine Ldpe Welder
Brand: New BPM welder
SKU: 139537027
Availability: InStock

The Best Project Material Co., Ltd.

Hot Sale 800W Hdpe Pvc Welding Machine Ldpe Welder thumbnail-1

Hot Sale 800W Hdpe Pvc Welding Machine Ldpe Welder photo-1

US$ 700 - 2,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

New BPM welder

Model Number:

Welding machine

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name New BPM welder

Model Number Welding machine

Voltage 220V

Power 800W, 800w

Frequency 50Hz, 50/60Hz

Welding Area as required

Dimensions L32 x W15cm x H22cm

Weight 4.8kg

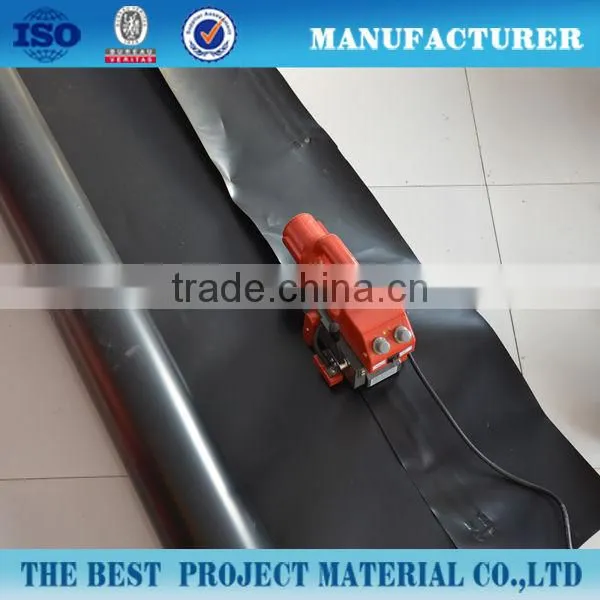

Usage welding geomembrane

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Hot sale 800W hdpe pvc welding machine ldpe welder
thickness 0.2mm-1mm
all thermal-fused material hdpe ldpe pvc eva

Hot sale 800W hdpe pvc welding machine ldpe welder

weld geo-membrane of various thickness

welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP.

1. Technical parameters>>>

Product	Welding machine/ hot wedge welder
Model	BPM 800
Description	* Voltage (V): 220V * Frequency (Hz): 50Hz * Power (P): 800W * Welding speed (V): 0.8-6m/min * Heating temperature (T): 0-450°C * Thickness of material to be welded: 0.2mm-1.5mm * Overlap width: 100mm * Welding width: 12.5mm×2, interior cavity 12mm * Seam strength: ≥85% base material tensile resistant in shear direction * Dimensions: L32 x W15cm x H22cm * Net Weight: 4.8kg * Gross Weight: 8.5kg * Insulation class: class II

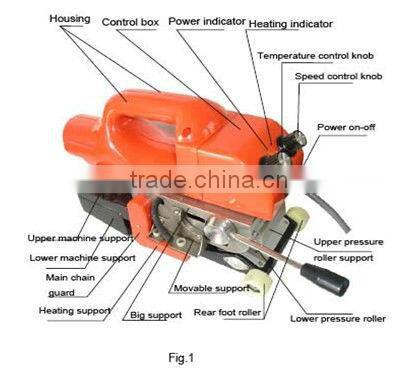

2. Main Components>>>

3. Operation principle>>>

Motor drives upper and lower pressure rollers to rotate through reduction gearbox and chain. Slide carriages drive the hot wedge and insert it

between the two base materials, at the same time lever presses pressure rollers and engages the two fused base materials.

Pressure roller

Spring strip

Hot wedge

Run direction

Lower membrane

Upper membrane

Fig.4 Welding schematic diagram

4. General troubles and eliminations>>>

Motor not run	Power off	Check that the mains is in On condition
	Fuse damaged	Replace fuse
	Speed control circuit board damaged	Replace speed control circuit board or control box assembly
	Motor burned	Replace motor
Motor speed can’t be regulated	Speed control knob is loosened	Tighten speed control knob
Motor speed can’t be regulated	Power tube disruption	Replace power tube or control box assembly
Hot wedge do not heat	Tubular electric heating element damaged	Replace hot wedge assembly
	Thermocouple failure	Replace thermocouple
	Temperature control knob loosened	Tighten temperature control knob
	Temperature control circuit board damaged	Replace temperature control circuit board or control box assembly
Hot wedge is burned red	Thermocouple failure	Replace thermocouple
Hot wedge is burned red	Controlled silicon disruption	Replace controlled silicon or control box assembly
Chain jumping	There may be sand or small stones on chain and gear	Remove sand or small stones

6. Maintenance

The complete machine should be cleaned, greased and placed in a dry place if it is not used.

For PVC welding, the adhesions on hot wedge should be cleaned off if it is not used longer than 4 hours to prevent wedge corrosion and service life being

shortened.

Recommend: for welding of material that corrosive gas may be produced after hot fusing such as PVC and the like, stainless steel hot wedge (optional

accessory) is preferred for extending of service life.

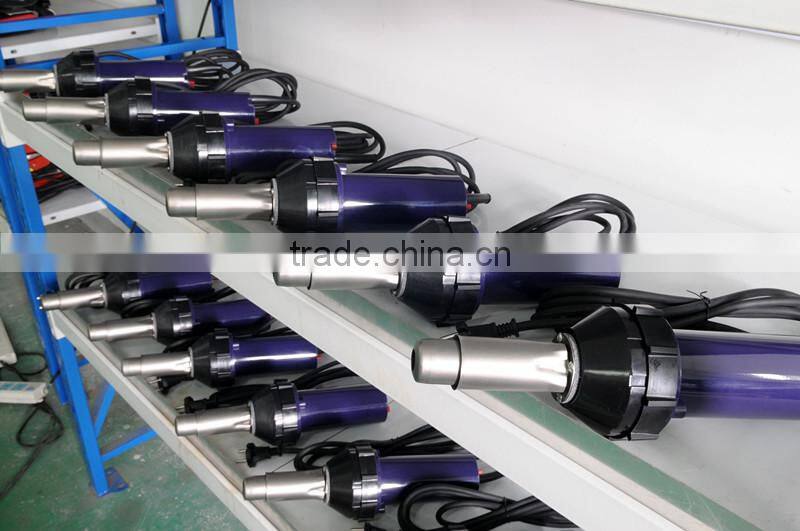

Hot air welding gun you maybe interested:

Other similar Products you may interested:

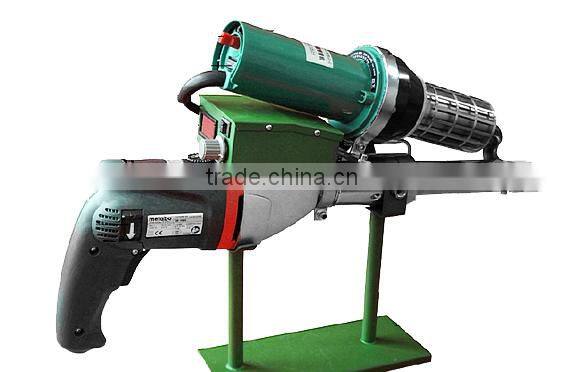

Hand extruder

Welding machine for more than 1mm

Hot air Tool (Repairing and patching of corners 0f 0.2mm-1.5mm)

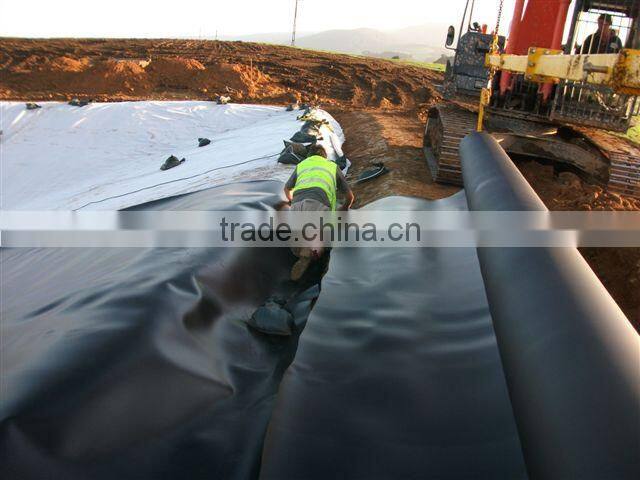

HDPE Geomembrane

Welcome your inquiry and sample order

Katherine

skype:jialutong-c
