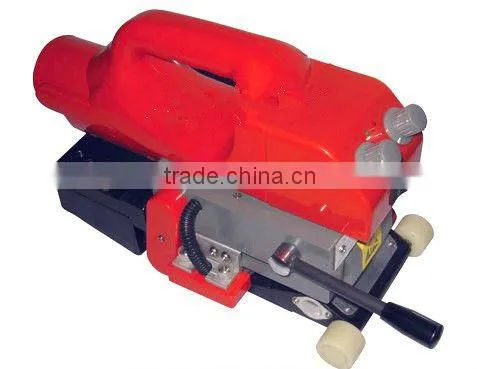

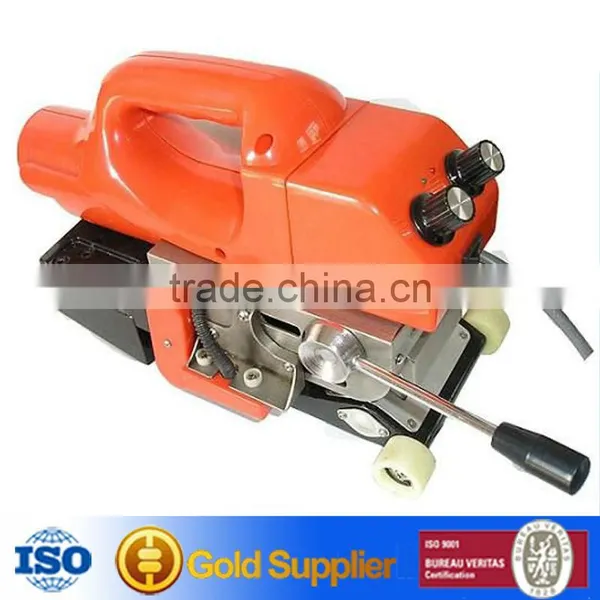

HDPE Liner Geomembrane Fusion Welding Machine Wedge Welder BPM800
Geo-membrane welding machine is our new developed products, which can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.
The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation; speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor, with great output torque and the operating is stable. It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load. Also this series of welding machine is stable in performance despite of external temperature and voltage variation.
This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on
Technical parameters
Voltage (V): 220V
Frequency (Hz): 50Hz
Power (P): 800W
Welding speed (V): 0.8-6m/min
Heating temperature (T): 0-450°C
Thickness of material to be welded: 0.2mm-2.0mm
Overlap width: 100mm
Welding width: 12.5mm×2, interior cavity 12mm
Seam strength: ≥85% base material (tensile resistant in shear direction), complete machine
Dimensions: L32 x W15cm x H22cm
Net Weight: 4.8kg
Gross Weight: 8.5kg
Insulation class: class II
Precautions
1). For correct operation, please carefully read this instruction.
2). Use with grounded 3-cords mains cable and socket (socket with 10A capacity. On the corresponding welder, phase L connected to live wire, N to zero line, phase to grounded protection line), plug will not be modified without prior permission.
3). For good welding quality, please assign specified personnel for operation.
4). Pressure roller will not engage on free running.
5). Do not operate when it is exposed to water to prevent inferior quality.
6). The machine has been regulated before leaving factory. Please do not adjust it at will.
7). Circuit board in control box is electrified. Do not remove it without prior notice to authorized personnel.
8). Preheat for 30 minutes before start up if machine has been long unused or exposed to moisture.
9). Modifications may be made for continuous improvement, without prior notice.
Main Components:
Maintenance
The complete machine should be cleaned, greased and placed in a dry place if it is not used.
For PVC welding, the adhesions on hot wedge should be cleaned off if it is not used longer than 4 hours to prevent wedge corrosion and service life being shortened.
Recommend: for welding of material that corrosive gas may be produced after hot fusing such as PVC and the like, stainless steel hot wedge (optional accessory) is preferred for extending of service life.
Supplied accessories
Protector tube 4A 2 pcs
1A 2 pcs
Cross rubber pad for coupling 1 pcs
Philips driver 1 pcs
Inner hexagonal spanner 3 pcs
Silica gel wheel 1 pair
Packed in aluminum box or carton box as per your requirements.
Courier cost can be paid by paypal or western union.

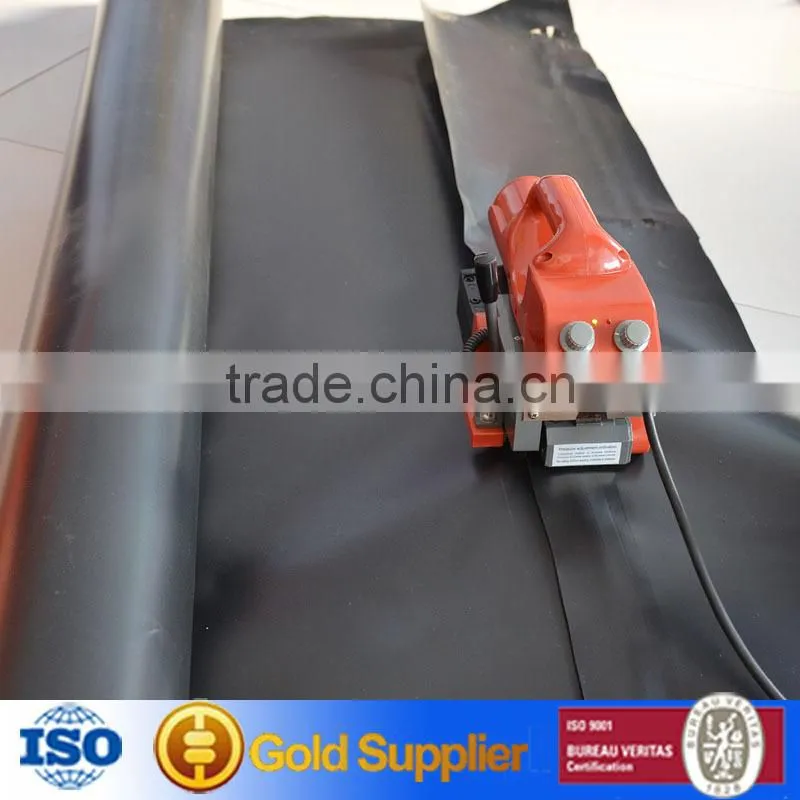

Welding of pond liner geomembrane:
We also have other various welding machines for you.Contact Kitty for detailed information
