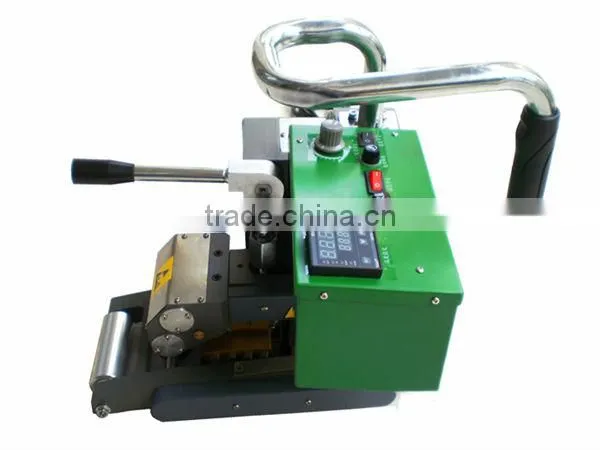

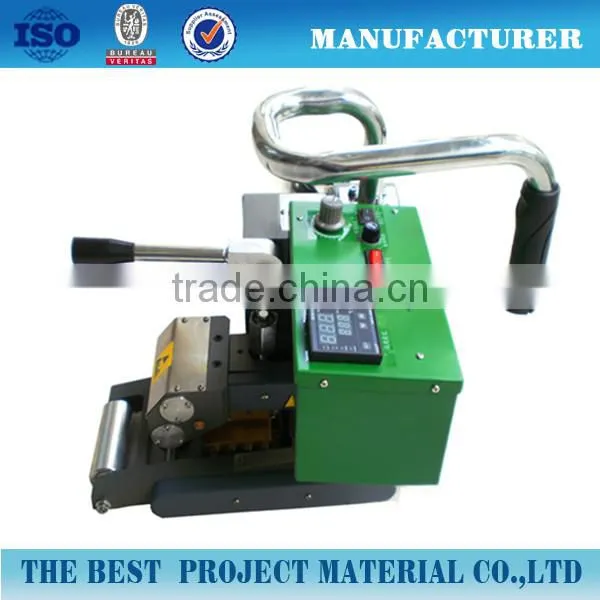

BPM900 Hot Wedge Ultrasonic Welding Machine Geomembrane Welder
Geo-membrane welder is a new welding machine which is developed by our company. They can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and PVC,HDPE,EVA,PP
The control of this series adopt PID automatic thermostatic control with high control and low temperature fluctuation. Speed control of this series adopt PWM automatic voltage and regulation speed circuit. Direct current servo the motor drive with great output torque and staple performance in walking. It can maintain a constant speed on the condition of creeping, vertical creeping and road load. Also this series of welding machine are stable in performance despite of external temperature and voltage variation.
This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.
Technical parameters
Voltage (V): 220V
Frequency (Hz): 50/60Hz
Power (P): 1800W
Welding speed (V): 0.5-5m/min Adjustable
Heating temperature (T): 0-450°C Adjustable
Thickness of material to be welded: 1.0mm-3.0mm
Overlap width: 12cm
Welding width: 15mm×2, interior cavity 15mm
Seam strength: ≥85% base material (tensile resistant in shear direction), complete machine
Dimensions: L50cm x W37cm x H40cm
Net Weight: 13kg
Gross Weight: 17.5kg
Insulation class: class II

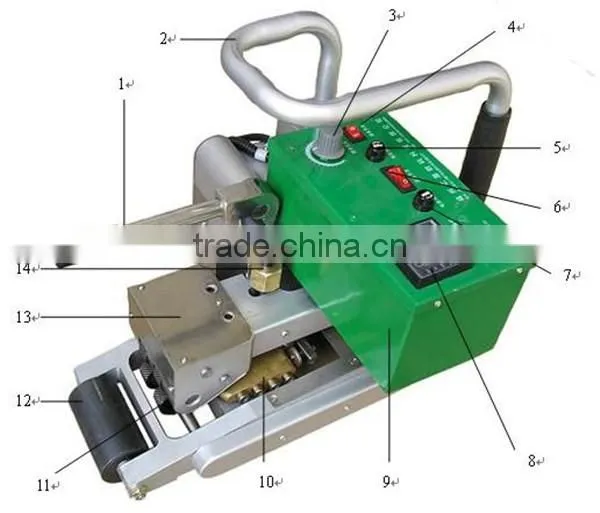

Main Components:
1.Pressure handle |
2.Manipulate hand |
3,Speeding knob |
4.Speeding switch |
5.Electric machine insurance |
6.Temperature switch |
7.power supply insurance |
8.Temperature control instrument |
9.Control case |
10.Thermal wedge |
11,Pressure wheel |
12,Creeping wheel |
13,Sway head |
14,Adjusting nut |
|
Maintenance
Please clean the dunghill in the thermal wedge and the mud in the chain guard and oiled the whole machine to the dry place when not using it.
Packed in aluminum box or carton box as per your requirements.
Courier cost can be paid by paypal or western union.
With years experience in foreign trade, our sales are professional and careful, easygoing and trusted,dedicated and skillful.We will try our best to meet any needs of any customer.Trust us and you will enjoy a friendly and happy trading.
Welding of pond liner geomembrane:
We also have other various welding machines for you.Contact Kitty for detailed information
