HDPE Pipe and Fittings for Water Supply Gas Supply DN20-1000mm

HDPE Pipe and Fittings for Water Supply Gas Supply DN20-1000mm thumbnail-1
HDPE Pipe and Fittings for Water Supply Gas Supply DN20-1000mm photo-1
US$ 1.25 - 2.98 MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BPM PE pipe
Model Number:
BPM PE-Innovation
Contact Supplier Request Quote Chat Now
The Best Project Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name BPM PE pipe
Model Number BPM PE-Innovation
Material Other, PE, Material: PE 80 or PE 100
Specification DN16mm-1600mm
Length 6m 9m 12m
Thickness 2.3mm-59.3mm
Standard GB/T13663-2000

                          HDPE Pipe For Water Supply,PE Water Pipe



 Introduction>>>

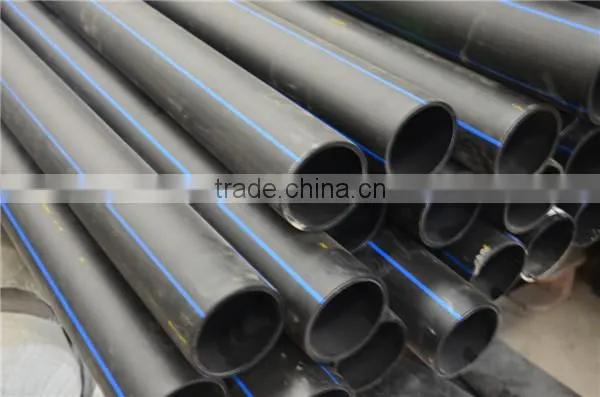

High-density polyethylene pipe(HDPE pipe) is made from high density polyethylene as the main raw material,

adding a small amount of antioxidants, anti-UV absorbers and pigments.





HDPE pipe and fittings for water supply gas supply DN20-1000mm



PE Water Pipe main information>>>

  • Material: PE 80 or PE 100
  • Pressure Rating: 0.4MPa, 0.6MPa, 0.8MPa,1.0MPa, 1.25MPa, 1.6MPa
  • Size: full 20mm through 1600mm availability
  • Standard: GB/T13663.2-2005
  • Colors:
    Blue: all size
    Black with blue stripe
  • Colors: Blue, Black with blue stripes, other colors available on request

Advantages of PE Water Pipe>>>



  • Non-toxic: no addition of  heavy metallic salt stabilizer, would not be covered with dirt or contaminated by bacterium.No

                             second pollution of fungus and bacterium and so on

  • Corrosion Resistant: resist chemical mediator ,no electrochemical corrosion.
  • Corrosion Resistant: corrosion resistance of chemical mediator , no electrochemical corrosion
  • Low friction drag: smooth interior walls leads to low friction drag.
  • Excellent Flexibility: can be coiled.
  • Excellent workability: be convenient for transporting and installing because of light weight.
  • Longevity: more than 50 years under proper use.
  • Various Joint Availability: butt fusion joint and electrofusion joint available to make sure the identity of interfaces, structure

          and pipe body.

  • butt fusion joint and electro fusion joint available to make sure the identity of interfaces, structure and pipe body
  • Recycled and Environment-friendly



 Applications>>>

  • Municipal water supply.
  • Commercial & civil water supply.
  • Industrial liquids transportation.
  • Sewage treatment.







 Specification>>>



  Pipe series Pipe series Pipe series Pipe series Pipe series Pipe series
  SDR11 SDR13.6 SDR17 SDR21 SDR26 SDR33
  Nominal pressure(bar) Nominal pressure(bar) Nominal pressure(bar) Nominal pressure(bar) Nominal pressure(bar) Nominal pressure(bar)
PE80  PN12.5 PN10 PN8 PN6   PN4
PE100 PN16 PN12.5 PN10 PN8 PN6
Nominal Outside Diameter(mm) Wall thickness(mm) Wall thickness(mm) Wall thickness(mm) Wall thickness(mm) Wall thickness(mm) Wall thickness(mm)
20 2.3
25 2.3
32 3.0
40 3.7
50 4.6
63 5.8 4.7
75 6.8 5.6 4.5
90 8.2 6.7 5.4 4.3
110 10.0 8.1 6.6 5.3 4.2
125 11.4 9.2 7.4 6.0 4.8
140 12.7 10.3 8.3 6.7 5.4 4.3
160 14.6 11.8 9.5 7.7 6.2 4.9
180 16.4 13.3 10.7 8.6 6.9 5.5
200 18.2 14.7 11.9 9.6 7.7 6.2
225 20.5 16.6 13.4 10.8 8.6 6.9
250 22.7 18.4 14.8 11.9 9.6 7.7
280 25.4 20.6 16.6 13.4 10.7 8.6
315 28.6 23.2 18.7 15.0 12.1 9.7
355 32.2 26.1 21.1 16.9 13.6 10.9
400 36.3 29.4 23.7 19.1 15.3 12.3
450 40.9 33.1 26.7 21.5 17.2 13.8
500 45.4 36.8 29.7 23.9 19.1 15.3
560 50.8 41.2 33.2 26.7 21.4 17.2
630 57.2 46.3 37.4 30.0 24.1 19.3
710   52.2 42.1 33.9 27.2 21.8
800   58.8 47.4 38.1 30.6 24.5





Other Fittings>>>



HDPE pipe and fittings for water supply gas supply DN20-1000mm









                      Contact Katherine





The Best Project Material Co.,Ltd



P. +86 182 6538 0933   E. katherine(at)

W.         skype: jialutong-c



HDPE pipe and fittings for water supply gas supply DN20-1000mm
