Specifications
1.EGS vertical in-line pump series2.Clean water pump
3.Taking smaller place
4.Easy to maintenance
5.ISO9001:2000

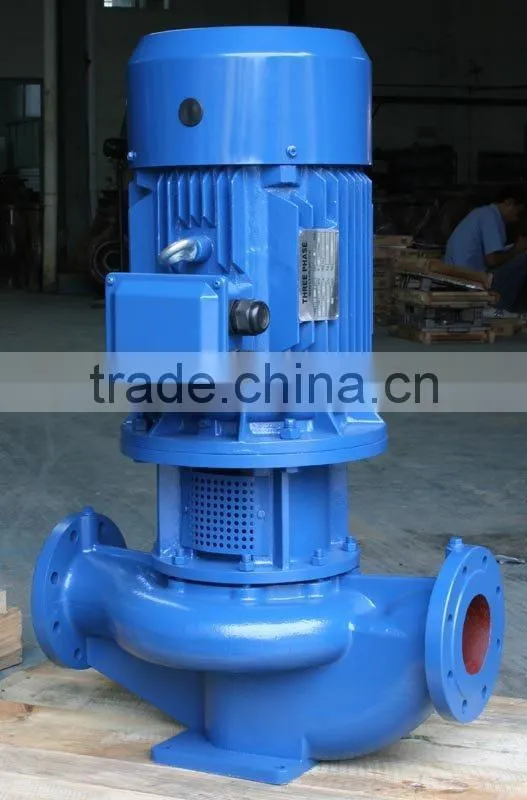

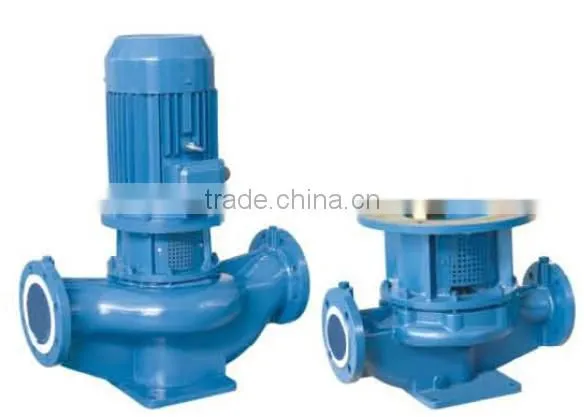

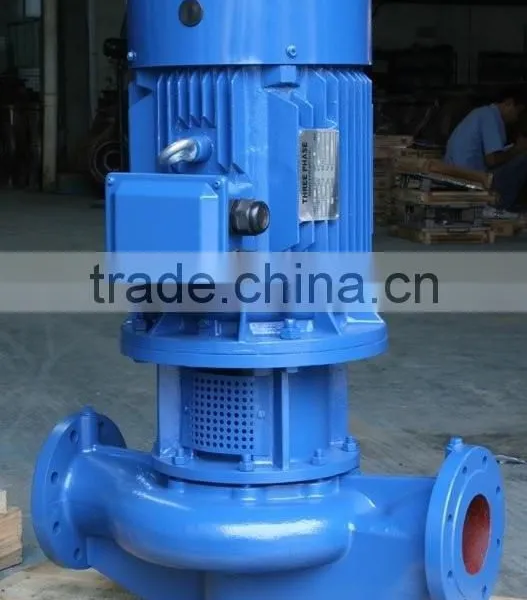

Vertical Inline Centrifugal Water Pump(Speed:1450 or 2900 rpm (50Hz) 1750 or 3)
EGS vertical in-line pump sery
Design Standard | |
European standard BS EN733/ DIN24255 | |
Material | |
Casing |
Cast Iron standard, Ductile Iron optional |
Impeller |
Bronze standard, Cast Iron, Stainless Steel optional |
Shaft |
ASTM 420 standard, ASTM 304, ASTM 316, ASTM 1045 optional |
Shaft Seal |
Mechanical Seal (Caron-Sic/Viton standard) |
Operating Data | |
Flow Rate (Q) |
2-450m3/h |
Head (H) |
2-150m |
Speed |
1450 or 2900 rpm (50Hz), 1750 or 3500 rpm (60Hz) |
Temperature |
-10°C to 105°C |
Working Pressure |
16 Bar standard |
Application | |
Plants, mines, city water supplies, air-conditioning, to firefighting, cooling, | |
Environmental machinery, irrigation, and so on | |
The reason for choosing our vertical centrifugal water pump:
·Well equipped with extensive equipment and the latest technology.
·Having a strong researching and development department to keep you updated with latest information about China market and even the world market.
·Scrutinized quality checks by a group of our expert Quality Controllers.
·High quality, good service and reasonable prices.
·Any other service requested from our customers as long as we can make it.
·Having a very big and new factory with most advanced facilities.
