Product Details
Place of Origin: | Zhejiang, China | Brand Name: | DEFU | Model Number: | CYZ-A |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Oil |
Power: | Other, Electric, Electric motor | Standard or Nonstandard: | Standard | Fuel: | Gasoline |
Pressure: | Low Pressure | Application: | Other, oil |
Product Description

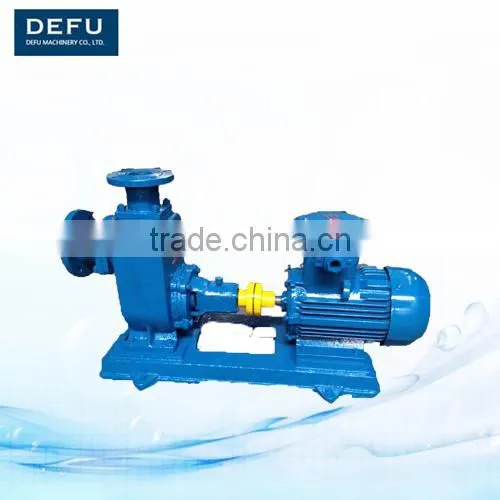

250CYZ-A self-priming electric engine centrifugal oil pump
Product Description
CYZ-A series self priming centrifugal oil pump is a new modified centrifugal pump which is developed on the
basis of absorbing and overseas advanced technology of the same product and combining many years design
and manufacturing experience of our company.
It is widely used to transport gasoline, kerosene, diesel oil, oil for aviation in oil warehouse, oil station, oil tanker,
dock tank truck, airdrome etc. It can also be used in chemical industry, pharmaceutics, brewage, electroplate,
printing and dyeing, papermaking, electric power, mine etc.
Features:♦ Working Principle: Centrifugal, self-priming
♦ Main applications: Diesel Oil, Gasoline, Kerosene, Water, Sea Water
♦ Casing Material: cast iron, stainless steel
♦ Impeller Material: bronze, stainless steel
♦ Power: motor driven and engine driven for option. Trailer type can be designed according to customer's request.
Performance
Model | Flow (m3/h) | Lift (m) | Suction head(m) | Speed (r/min) | Self priming capacity | Power(kw) | Ports size(mm) |
40CYZ-A-40 | 10 | 40 | 6.5 | 2900 | 1.5 | 4 | 50 |
50CYZ-A-12 | 15 | 12 | 6.5 | 2900 | 2.4 | 1.5 | 50 |
50CYZ-A-20 | 18 | 20 | 6.5 | 2900 | 1.9 | 2.2 | 50 |
50CYZ-A-30 | 20 | 30 | 6.5 | 2900 | 1.5 | 4 | 50 |
50CYZ-A-35 | 14 | 35 | 6.5 | 2900 | 1.5 | 4 | 50 |
50CYZ-A-40 | 10 | 40 | 6.5 | 2900 | 1.5 | 4 | 50 |
50CYZ-A-50 | 12.5 | 50 | 6.5 | 2900 | 1.4 | 5.5 | 50 |
50CYZ-A-65 | 15 | 60 | 6.5 | 2900 | 1.3 | 7.5 | 50 |
50CYZ-A-75 | 20 | 75 | 6.5 | 2900 | 1.3 | 11 | 50 |
65CYZ-A-15 | 30 | 15 | 6.5 | 2900 | 2 | 3 | 65 |
65CYZ-A-32 | 25 | 32 | 6 | 2900 | 1.5 | 5.5 | 65 |
80CYZ-A-13 | 35 | 13 | 6 | 2900 | 3.4 | 3 | 80 |
80CYZ-A-17 | 43 | 17 | 6 | 2900 | 1.8 | 4 | 80 |
80CYZ-A-22 | 40 | 22 | 6 | 2900 | 1.9 | 5.5 | 80 |
80CYZ-A-25 | 50 | 25 | 6 | 2900 | 1.5 | 7.5 | 80 |
80CYZ-A-32 | 50 | 32 | 6 | 2900 | 1.5 | 7.5 | 80 |
80CYZ-A-55 | 60 | 55 | 6 | 2900 | 1.5 | 18.5 | 80 |
80CYZ-A-70 | 60 | 70 | 6 | 2900 | 1.2 | 22 | 80 |
100CYZ-A-20 | 100 | 20 | 6 | 2900 | 1.8 | 11 | 100 |
100CYZ-A-40 | 100 | 40 | 6 | 2900 | 1.8 | 22 | 100 |
100CYZ-A-40A | 100 | 40 | 6 | 1450 | 1.5 | 22 | 100 |
100CYZ-A-65 | 100 | 65 | 6 | 2900 | 1.8 | 30 | 100 |
100CYZ-A-75 | 100 | 75 | 6 | 2900 | 1.8 | 30 | 100 |
150CYZ-A-55 | 170 | 55 | 5 | 2900 | 1.8 | 45 | 150 |
150CYZ-A-65 | 170 | 65 | 5 | 2900 | 1.3 | 55 | 150 |
150CYZ-A-80 | 160 | 80 | 5 | 2900 | 1.2 | 55 | 150 |
200CYZ-A-32 | 400 | 32 | 5 | 1450 | 2 | 55 | 200 |
200CYZ-A-63 | 280 | 63 | 5 | 1450 | 1.5 | 90 | 200 |
200CYZ-A-65 | 350 | 65 | 5 | 1450 | 1.5 | 75 | 250 |
250CYZ-A-32 | 550 | 32 | 5 | 1450 | 2 | 90 | 250 |
250CYZ-A-50 | 400 | 50 | 5 | 1450 | 2 | 90 | 250 |
300CYZ-A-50 | 500 | 50 | 5 | 1450 | 2 | 110 | 300 |
250CYZ-A-55 | 450 | 55 | 5 | 1450 | 2 | 110 | 250 |
250CYZ-A-75 | 400 | 75 | 5 | 1450 | 1.5 | 132 | 250 |
300CYZ-A-32 | 600 | 32 | 5 | 1450 | 2 | 90 | 300 |
300CYZ-A-55 | 550 | 55 | 5 | 1450 | 2 | 132 | 300 |
