Specifications
centrifugal pump explosion proof pumpFor oil or water
Self-priming, with copper impeller
Explosive-proof pump
ISO SGS

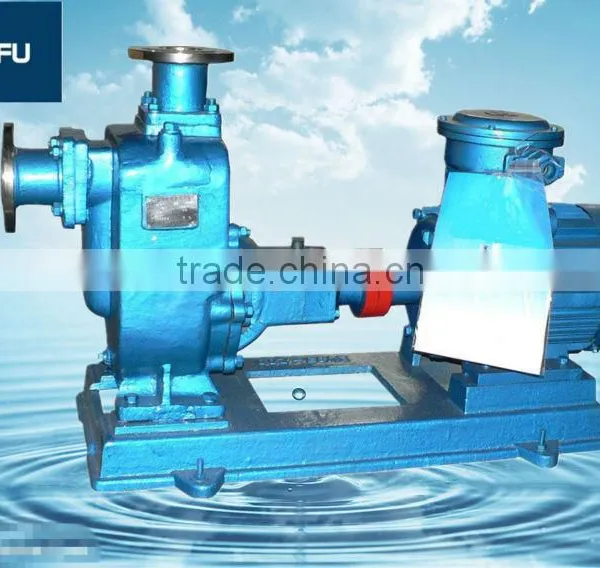

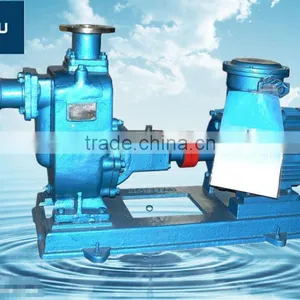

CYZ series Self-priming explosion proof
centrifugal pump crude oil pump
1.Advantage
1simple structure
nvenient operation and maintenance
3.stable operation, large flow
4.high efficiency, easy to adjust
2.Brief introduction
CYZ series explosion-proof centrifugal pump is belongs to self-priming centrifugal oil pump. the feature is simple construction, easy operation ,convenient repairing, high displacement,hing efficiency,wide application scope etc.It’is used to transport gasoline, kerosene, diesel, aviation kerosene and other petroleum dium temperature is - 20 °C ~ + 80 °C, It is a good oil pump for transporting easy combustion and explosive media. And it is suitable for the land oil transportation, oil depot, fuel oil storage device, can also be used for transporting seawater, freshwater etc.
3.Application scope
Capacity:: 3 to 550 m3/h;
Temperature: -20-+80°C
Theory: Centrifugal Pump
Fuel: Electric
Application: gasoline, kerosene, diesel, aviation kerosene and other petroleum prod
4.Typical Application
Used to transport gasoline, kerosene, diesel, aviation kerosene and other petroleum products,petrol ,ect
5.Technical Date
| Model | Capacity | Head | Suction | Speed | Self-priming | Power (KW) | Inlet | Outlet | ||
| (m3/h) | (L/s) | (m) | (m) | (r/min) | time (min/5m) | Shaft | Motor | (mm) | (mm) | |
| 25CYZ-A-20 | 3.2 | 0.9 | 20 | 6.5 | 2900 | 1.9 | 0.46 | 0.75 | 25 | 25 |
| 25CYZ-A-32 | 3.2 | 0.9 | 32 | 6.5 | 2900 | 1.8 | 0.8 | 1.1 | 25 | 25 |
| 40CYZ-A-20 | 6.3 | 1.8 | 20 | 6.5 | 2900 | 1.9 | 0.87 | 1.1 | 40 | 32 |
| 40CYZ-A-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 1.5 | 2.7 | 4 | 40 | 40 |
| 50CYZ-A-12 | 15 | 4.2 | 12 | 6.5 | 2900 | 2.4 | 1.1 | 1.5 | 50 | 50 |
| 50CYZ-A-20 | 18 | 5 | 20 | 6.5 | 2900 | 1.9 | 1.8 | 2.2 | 50 | 50 |
| 50CYZ-A-30 | 20 | 5.6 | 30 | 6.5 | 2900 | 1.5 | 2.6 | 4 | 50 | 50 |
| 50CYZ-A-35 | 14 | 3.9 | 35 | 6.5 | 2900 | 1.5 | 2.7 | 4 | 50 | 50 |
| 50CYZ-A-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 1.5 | 2.7 | 4 | 50 | 50 |
| 50CYZ-A-50 | 12.5 | 3.5 | 50 | 6.5 | 2900 | 1.4 | 4.3 | 5.5 | 50 | 50 |
| 50CYZ-A-60 | 15 | 4.2 | 60 | 6.5 | 2900 | 1.3 | 6.2 | 7.5 | 50 | 50 |
| 50CYZ-A-75 | 20 | 5.6 | 75 | 6.5 | 2900 | 1.3 | 9.8 | 11 | 50 | 50 |
| 65CYZ-A-15 | 30 | 8.3 | 15 | 6.5 | 2900 | 2 | 1.9 | 3 | 65 | 65 |
| 65CYZ-A-32 | 25 | 6.9 | 32 | 6 | 2900 | 1.5 | 4.4 | 5.5 | 65 | 65 |
| 80CYZ-A-13 | 35 | 9.7 | 13 | 6 | 2900 | 3.4 | 1.9 | 3 | 80 | 80 |
| 80CYZ-A-17 | 43 | 12 | 17 | 6 | 2900 | 1.8 | 3.1 | 4 | 80 | 80 |
| 80CYZ-A-22 | 40 | 11.1 | 22 | 6 | 2900 | 1.9 | 4.4 | 5.5 | 80 | 80 |
| 80CYZ-A-25 | 50 | 13.9 | 25 | 6 | 2900 | 1.5 | 5.2 | 7.5 | 80 | 80 |
| 80CYZ-A-32 | 50 | 13.9 | 32 | 6 | 2900 | 1.5 | 6.8 | 7.5 | 80 | 80 |
| 80CYZ-A-55 | 60 | 16.7 | 55 | 6 | 2900 | 1.5 | 15 | 18.5 | 80 | 80 |
| 80CYZ-A-70 | 60 | 16.7 | 70 | 6 | 2900 | 1.2 | 20.1 | 22 | 80 | 80 |
| 100CYZ-A-20 | 100 | 27.8 | 20 | 6 | 2900 | 1.8 | 7.8 | 11 | 100 | 100 |
| 100CYZ-A-40 | 100 | 27 .8 | 40 | 6 | 2900 | 1.8 | 16.3 | 22 | 100 | 100 |
| 100CYZ-A-40A | 100 | 27.8 | 40 | 6 | 1450 | 1.5 | 18.5 | 22 | 100 | 100 |
| 100CYZ-A-65 | 100 | 27.8 | 65 | 6 | 2900 | 1.8 | 27.7 | 30 | 100 | 100 |
