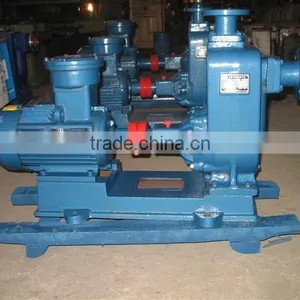

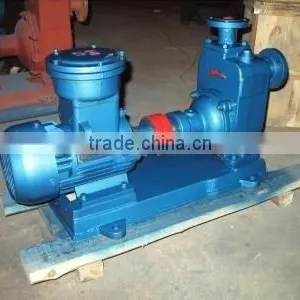

Wenzhou DEFU CYZ series Self-priming explosion proof centrifugal pump crude oil pump
- 500 Set / Sets per Month
- Ningbo Shanghai
- Credit Card
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | DEFU | Model Number: | CYZ-A |
| Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Oil |
| Power: | Other, Electric motor/diesel engine | Standard or Nonstandard: | Standard | Fuel: | Gasoline |
| Pressure: | Low Pressure | Application: | Other, Oil |
Product Description

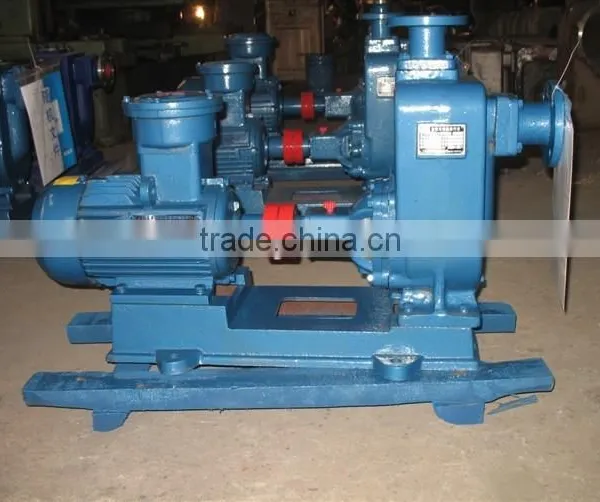

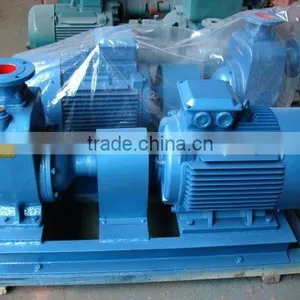

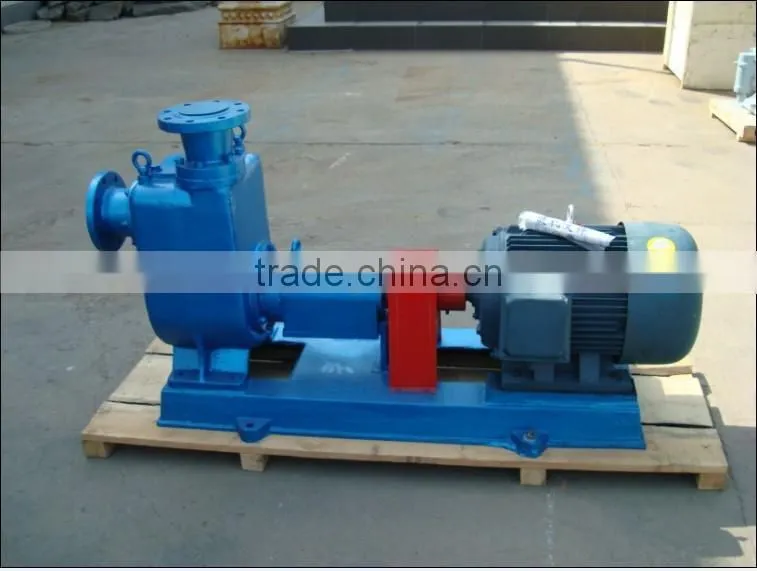

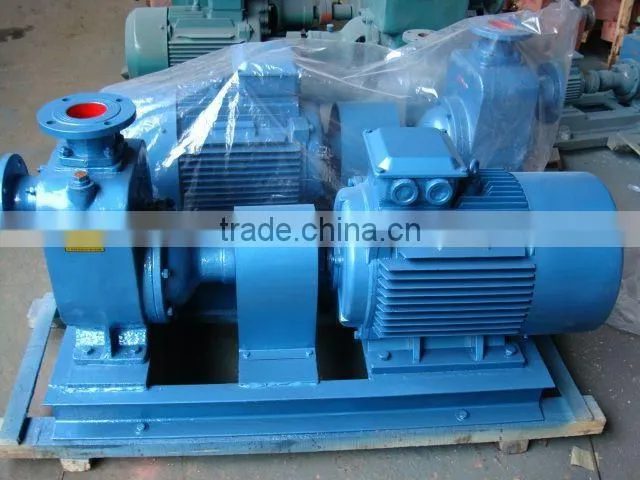

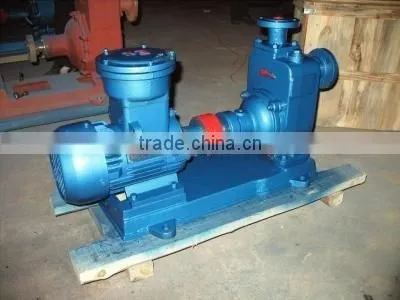

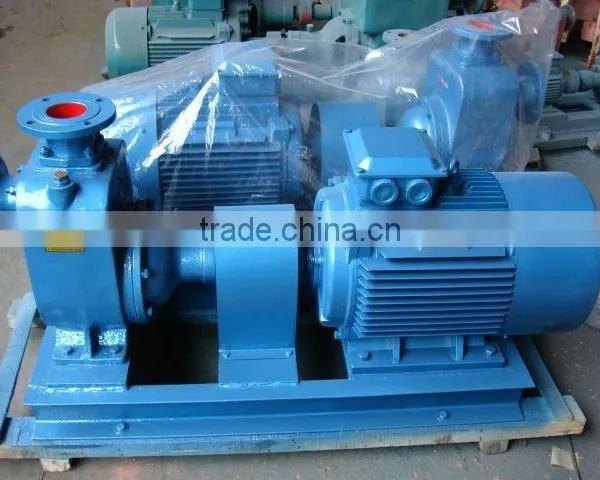

CYZ series Self-priming explosion proof centrifugal pump crude oil pump
1.Brief introduction
CYZ series explosion-proof centrifugal pump is belongs to self priming centrifugal oil pump. the feature is simple construction, easy operation ,convenient repairing, high displacement,hing efficiency,wide application scope etc.It’is used to transport gasoline, kerosene, diesel, aviation kerosene and other petroleum products. Medium temperature is - 20 °C ~ + 80 °C, It is a good oil pump for transporting easy combustion and explosive media. And it is suitable for the land oil transportation, oil depot, fuel oil storage device, can also be used for transporting seawater, freshwater etc.
3.Application scope
Capacity: 3 to 550 m3/h;
Temperature: -20-+80°C
Theory: Centrifugal Pump
Fuel: Electric
Application: gasoline, kerosene, diesel, aviation kerosene and other petroleum product, petrol, etc.
4.Typical Application
Used to transport gasoline, kerosene, diesel, aviation kerosene and other petroleum products,petrol ,ect.
5.Technical Date
| Model | Capacity | Head | Suction | Speed | Self-priming | Power (KW) | Inlet | Outlet | ||
| (m3/h) | (L/s) | (m) | (m) | (r/min) | time (min/5m) | Shaft | Motor | (mm) | (mm) | |
| 25CYZ-A-20 | 3.2 | 0.9 | 20 | 6.5 | 2900 | 1.9 | 0.46 | 0.75 | 25 | 25 |
| 25CYZ-A-32 | 3.2 | 0.9 | 32 | 6.5 | 2900 | 1.8 | 0.8 | 1.1 | 25 | 25 |
| 40CYZ-A-20 | 6.3 | 1.8 | 20 | 6.5 | 2900 | 1.9 | 0.87 | 1.1 | 40 | 32 |
| 40CYZ-A-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 1.5 | 2.7 | 4 | 40 | 40 |
| 50CYZ-A-12 | 15 | 4.2 | 12 | 6.5 | 2900 | 2.4 | 1.1 | 1.5 | 50 | 50 |
| 50CYZ-A-20 | 18 | 5 | 20 | 6.5 | 2900 | 1.9 | 1.8 | 2.2 | 50 | 50 |
| 50CYZ-A-30 | 20 | 5.6 | 30 | 6.5 | 2900 | 1.5 | 2.6 | 4 | 50 | 50 |
| 50CYZ-A-35 | 14 | 3.9 | 35 | 6.5 | 2900 | 1.5 | 2.7 | 4 | 50 | 50 |
| 50CYZ-A-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 1.5 | 2.7 | 4 | 50 | 50 |
| 50CYZ-A-50 | 12.5 | 3.5 | 50 | 6.5 | 2900 | 1.4 | 4.3 | 5.5 | 50 | 50 |
| 50CYZ-A-60 | 15 | 4.2 | 60 | 6.5 | 2900 | 1.3 | 6.2 | 7.5 | 50 | 50 |
| 50CYZ-A-75 | 20 | 5.6 | 75 | 6.5 | 2900 | 1.3 | 9.8 | 11 | 50 | 50 |
| 65CYZ-A-15 | 30 | 8.3 | 15 | 6.5 | 2900 | 2 | 1.9 | 3 | 65 | 65 |
| 65CYZ-A-32 | 25 | 6.9 | 32 | 6 | 2900 | 1.5 | 4.4 | 5.5 | 65 | 65 |
| 80CYZ-A-13 | 35 | 9.7 | 13 | 6 | 2900 | 3.4 | 1.9 | 3 | 80 | 80 |
| 80CYZ-A-17 | 43 | 12 | 17 | 6 | 2900 | 1.8 | 3.1 | 4 | 80 | 80 |
| 80CYZ-A-22 | 40 | 11.1 | 22 | 6 | 2900 | 1.9 | 4.4 | 5.5 | 80 | 80 |
| 80CYZ-A-25 | 50 | 13.9 | 25 | 6 | 2900 | 1.5 | 5.2 | 7.5 | 80 | 80 |
| 80CYZ-A-32 | 50 | 13.9 | 32 | 6 | 2900 | 1.5 | 6.8 | 7.5 | 80 | 80 |
| 80CYZ-A-55 | 60 | 16.7 | 55 | 6 | 2900 | 1.5 | 15 | 18.5 | 80 | 80 |
| 80CYZ-A-70 | 60 | 16.7 | 70 | 6 | 2900 | 1.2 | 20.1 | 22 | 80 | 80 |
| 100CYZ-A-20 | 100 | 27.8 | 20 | 6 | 2900 | 1.8 | 7.8 | 11 | 100 | 100 |
| 100CYZ-A-40 | 100 | 27 .8 | 40 | 6 | 2900 | 1.8 | 16.3 | 22 | 100 | 100 |
| 100CYZ-A-40A | 100 | 27.8 | 40 | 6 | 1450 | 1.5 | 18.5 | 22 | 100 | 100 |
| 100CYZ-A-65 | 100 | 27.8 | 65 | 6 | 2900 | 1.8 | 27.7 | 30 | 100 | 100 |
1. Mail Service
2. Phone Service
After Sales
1. We are very glad that customers give us come suggestion for product, price and services.
2. If any question. please let us know it in the first by Email or Telephone. we can deal with them for you in time.
3. Any more problems, please feel free to ask, and we will try our best to supply you!
Warranty
1. One year guarantee for the pump
2. Three month guarantee for the spare parts of pump
Factory Visit
Welcome any customer to visit our factory.

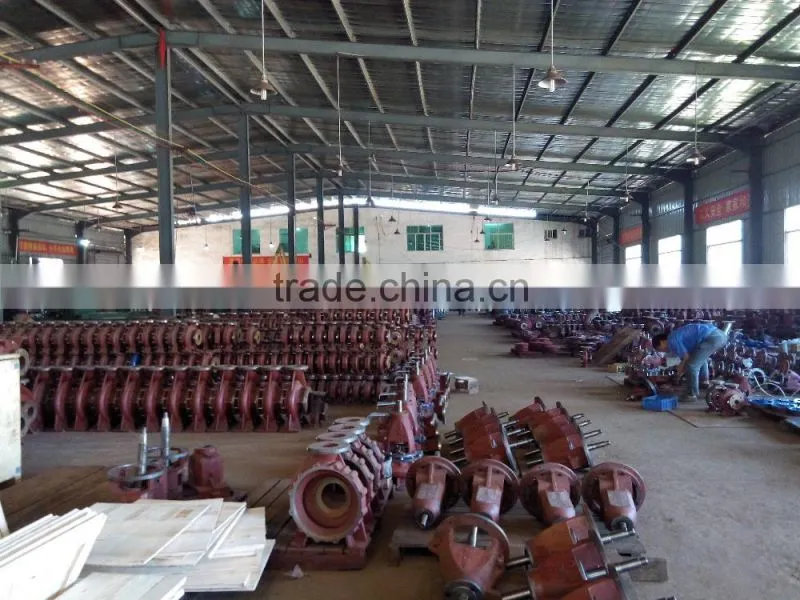

Welcome To Our Factor
DEFU Machinery is an enterprise involved in designing, developing, manufacturing and selling water pumps. Relying on the local industrial chain, DEFU has established its production base in Shanghai, Hubei and Shandong province.
Our main product:
self priming pump, double suction pump, diaphragm pump, diesel engine pump, multistage pump, gear pump and some others.
