steam or water used double pot sterilizing canned food retort pot
USD $6,500 - $600,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Qingdao tianjin shenzhen
- T/T
You May Like
-
Professional pipe hydraulic pressure test equipment machine with automatic print test reports
-
manual and automatic type stainless steel centrifugal milk cream separator
-
manual and automatic type stainless steel milk cream separator machine
-
semi-automatic centrifugal Milk/dairy cream separator
-
automatic centrifugal Milk/dairy fat separator
-
automatic Milk/dairy Cream separator
Product Details
| Condition: | New | Place of Origin: | Henan, China | Brand Name: | Quate |
| Model Number: | QT-SP1000 | Usage: | Meat | Type: | Autoclave |
| Voltage: | 380V / 410V / 220V 50Hz/ 60Hz | Power(W): | 10Kw-700Kw | Weight: | 3t-15t |
| Dimension(L*W*H): | 2600*1200*2900mm | Certification: | CE ISO | Warranty: | One Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
steam or water used double pot sterilizing canned food retort pot
Product Description
• According to the material divided into carbon steel type and stainless steel type.
• According to the sterilization method divided into spray type, water bath type, steam type androtary type.
• According to the heating method divided into steam heat type andelectric heat type.
• According to the structure divided into single-deck type, double-deck type, two-pot parallel type and three-pot parallel type.
Product parameter
| Model | 1000# | 1200# | 1200# | 1200# | 1200# | 1200# | 1200# | 1300# | 1300# |
| Number | 1 | 1 | 2 | 3 | 4 | 5 | 6 | 1 | 2 |
| Inside diameter(mm) | 1000 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1300 | 1300 |
| Length of cylinder(mm) | 2400 | 2200 | 2400 | 2700 | 3000 | 3300 | 3600 | 3500 | 3750 |
| Total length(mm) | 4100 | 4000 | 4200 | 4500 | 4800 | 5000 | 5400 | 5400 | 5650 |
| Total width(mm) | 4800 | 5200 | 5200 | 5200 | 5200 | 5200 | 5200 | 5400 | 5400 |
| Total height(mm) | 2200 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | 2400 | 2400 |
| Total capacity(m3) | 2.2*2 | 3*2 | 3.2*2 | 3.6*2 | 4*2 | 4.2*2 | 4.6*2 | 5.14*2 | 5.4*2 |
| Gas consumption | 240 | 320 | 360 | 400 | 460 | 480 | 500 | 600 | 650 |
| Total power(Kw) | 14 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| Design temperature(°c) | 135 | 135 | 135 | 135 |
135 | 135 | 135 | 135 | 135 |
| Design pressure(Mpa) | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Test pressure(Mpa) | 0.44 | 0.44 | 0.44 | 0.44 | 0.44 | 0.44 | 0.44 | 0.44 | 0.44 |
| Working temperature(°c) | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| Working pressure(Mpa) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Compressed air tank(m3) | 1.0 | 1.5 | 1.5 | 1.5 | 2.0 | 2.0 | 2.0 | 2.5 | 2.5 |
| Air compressor | 1/10 | 1.6/10 | 1.6/10 | 1.6/10 | 2.1/10 | 2.1/10 | 2.1/10 | 2.1/10 | 2.1/10 |
| Storage tank(m3) | 5.0 | 7.0 | 8.0 | 8.0 | 9.0 | 9.0 | 9.0 | 8.0 | 11.0 |
| Boiler displacement(T/H) | 1.0 | 1.5 | 1.5 | 1.5 | 2.0 | 2.0 | 3.0 | 3.5 | 3.5 |

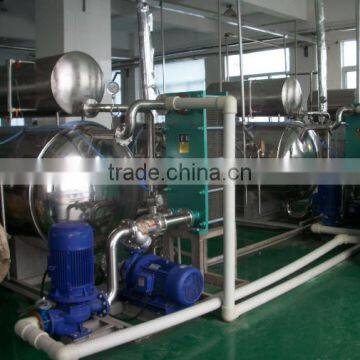

Detailed Images
