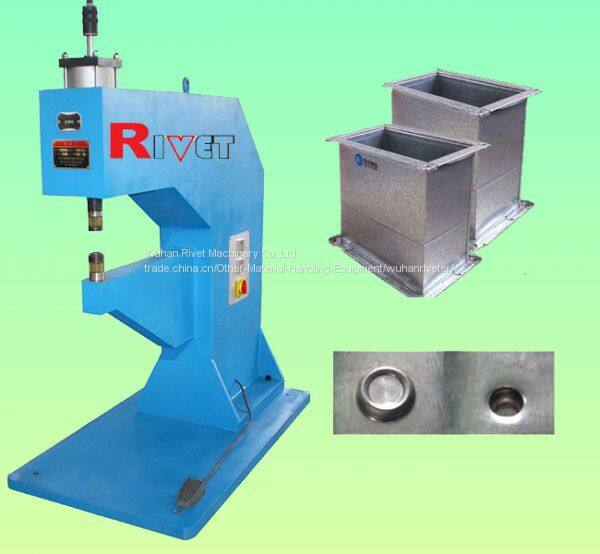

WMZ-5 (Vertical rivetless riveting machine)
Characteristics:
■Processed point firmly
■Joint 2 pieces of metal sheet without rivet
■Protect surface plating and painting available
■Forming rond or rectangle shape available
■Processed area has no stress
■Allowed to have mezzanine and multi-layer conjunction
■Copper , aluminums, steel, zinc are all unlimited
■Equipped with pre-pressure device，overcoming distort badly.
■Desktop, vertical and cantilever style as optional
WMZ-5
Rivetless machine can fully replace of punch joint to the metal sheet. The rivetless riveting process are extensively used in automobile, light work, precise machine, electric appliances and hardware etc: such as the top-window of car, instrument board, mask of engine, humper, radiator, seat, window system of car, silencer, the door of refrigerator, the hull body of washer, the hull body of fan, copy machine, the hull body of computer and dentist's machine outer shell etc...
This kind of machine riveting joint function is strong, process stability has no rock, the surface is beautiful after process. It has plenty of adjustment function, the riveting pressure, speed and stroke speed are all can be adjusted, to guarantee the best result effectively.
Specification of model:WMZ-5
▲ure 50Kn
▲Stroke 75mm
▲Compulsive stroke 5mm
▲Frequency/Min 14-25
▲Thickness/Galvanized sheet 3mm (Max.)
▲Throat depth 200mm
▲Power 0.05Kw
▲Rated air comsumption 0.06M³/Min
▲Air source 5-6kgf/cm²
▲Pressure adjusting Stepless
▲Aerosol lubrication Yes
▲Physical size 550mmx380mmx900mm
▲Net weight 215Kg
Principle of boosting cylinder
