BM9L (Orbital riveting machine)
Characteristics:
■Vertical style with large space
■Hydraulic driven or pneumatic as optional
■Pressure by stepless regulation
■Double-hand buttons or foot pedal
■Rotary part protected
■Oil tank joit or separated with machine
BM9L
Scope of applications :Daily hardware, eclectronic products, automobile products etc.
Customized available

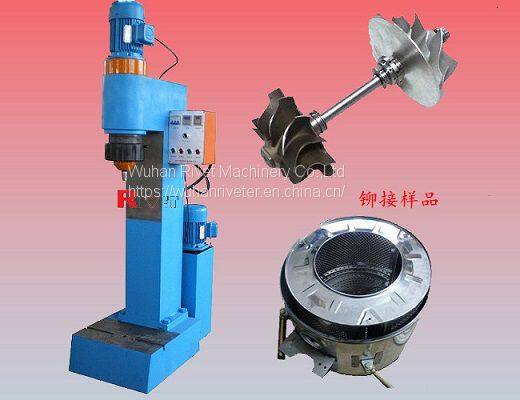

BM9L is a kind of vertical orbital riveting machine with large space to meet special product's requirement, such as large body, tubbish parts and long axis etc.
Specifications:
▲Max riveting diameter Ф 9mm ( solid steel rivet )
▲Max riveting pressure 14Kn
▲Stroke Length Range 30mm
▲Available space 680mm
▲Throat depth 125mm
▲Riveting tool length 50mm
▲Eccentric angle 4°
▲Motive force Hydraulic
▲Area of the table surface 360mm×290mm
▲Power 0.92Kw
▲Physical size 700mm×500mm×1417mm
▲Net weight 250Kg
