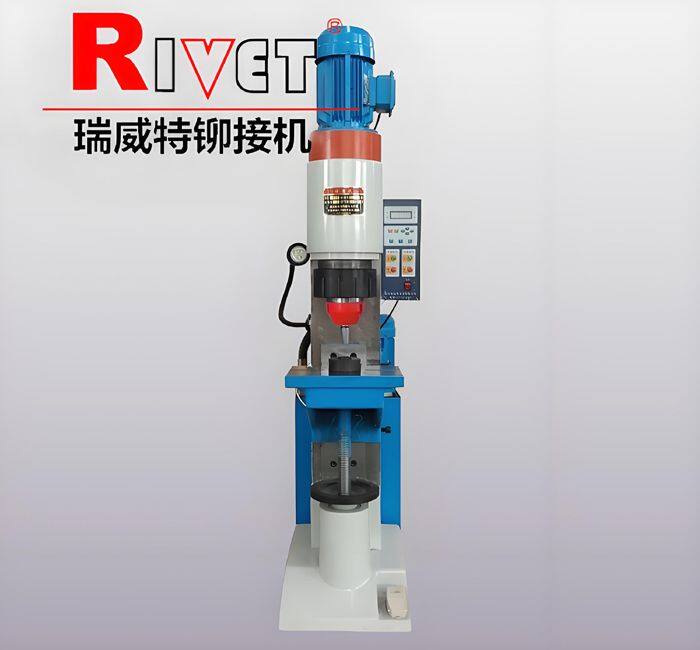

JM16-C (Hydraulic radial riveting machine)
Characteristics:
■Medium sized vertical style
■Max riveting diameter Ф16mm (solid rivet)
■Workbench adjustable
■Hydraulic driven by stepless regulation
■Rotary part protected
■Double-hand buttons or foot pedal as optional
■Set riveting time at as will
■Automatic and manual functions
JM16-C

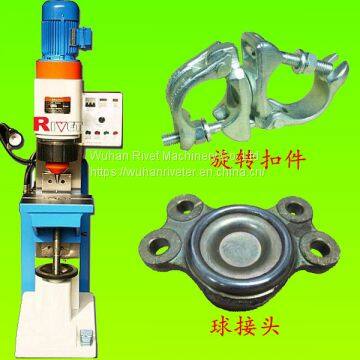

Scope of applications:Daily hardware, electronic products, fastener, atuomobile parts etc.
Customized available
The model of JM16-C is a kind of vertical hydraulic riveting machine and apply to medium sized rivets with at deepen position. The machine application of advanced radial structure to makes processing more stability, T-slot fixing clamping apparatus available, positioning hole and axis are coaxial to insure riveting precisions. Hydraulic system equipped with one-way throttle valve to control stroke speed effectively. Workbench adjustment of down and up to meet different workpiece's body and shape, stroke control by micro scale system and accurate is±0.02mm.
Specification:
▲Max riveting diameter Ф 16mm ( solid steel rivet )
▲Max riveting pressure 34Kn
▲Stroke Length Range 60mm
▲Available work space 200mm
▲Throat depth 195mm
▲Riveting tool length 62mm
▲Eccentric angle 4°
▲Motive force Hydraulic
▲Oil-tank volume 60 Liters
▲Pressure oil brand 46# ISO
▲Area of the table surface 350mm×285mm
▲Power 2.2Kw
▲Physical size 850mm×600mm×1680mm
▲Net weight 570Kg
