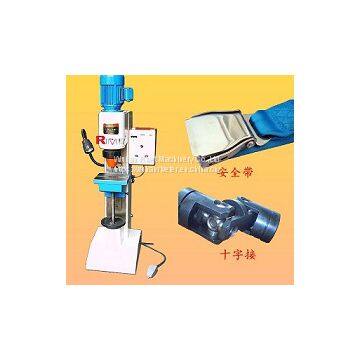

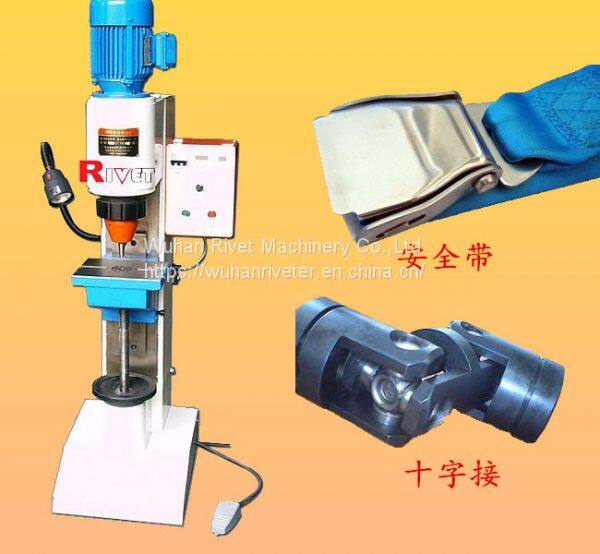

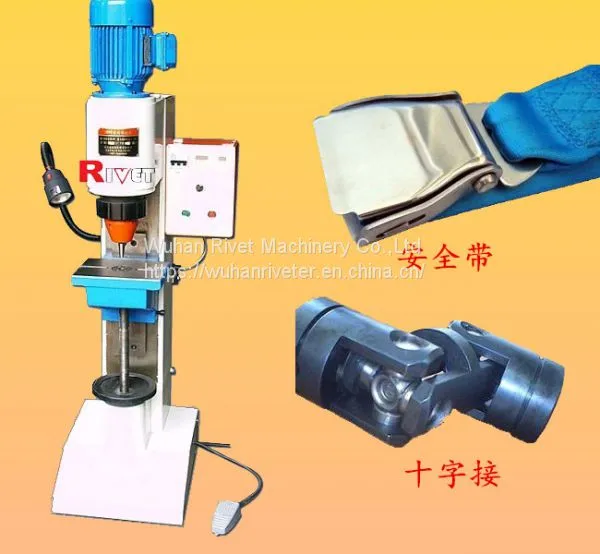

 JM9Q (Pneumatic riveting machine)

Characteristics:

■Medium sized vertical style

■Max. processing Dia.Φ9mm

■Pneumatic driven

■Pressure by stepless regulation

■Rotary part protected

■Double-hand buttons or foot pedal

■Set process time as will

■Automatic and manual functions

JM9Q

Scope  of application: instrumentation, hardware, electronic products,  automobile                                                            parts etc

 Customized available.

       JM9Q  is a medium sized radial riveting machine with pneumatic force,vertical  style, machining process is stable and perfect result due to applied  advanced orbital technology, T-slot fixing the clamping apparatus  available, positioning hole is coaxial with spindle to insure the  riveting accuracy. Pneumatic system equipped with two way throttle  valves to control stroke speed and return speed effectively. Power head  fixed and bench adjustment up and down to meet different workpiece's  body and shape. Electricity control system equipped with counter and  time relay to conveniency operation.

Specification:

▲Max riveting diameter                         Ф 9mm ( solid steel rivet )

▲Max riveting pressure                         14Kn

▲Stroke                                                  30mm

▲Available working space                   245mm

▲Throat depth                                       160mm

▲Riveting tool length                             50mm

▲Eccentric angle                                   4°

▲Motive force                                        Pneumatic

▲Workbench dimensions                260mm×200mm

▲Power                                                 0.55Kw

▲Physical size                                     700mm×500mm×1570mm

▲Net weight                                          300Kg
