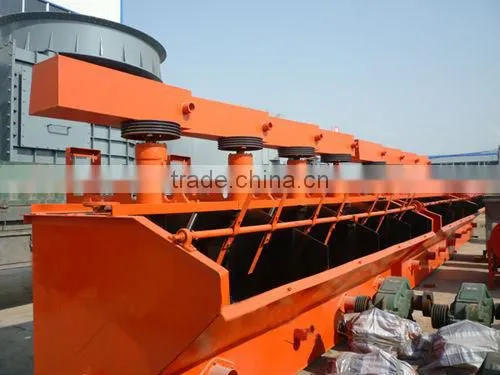

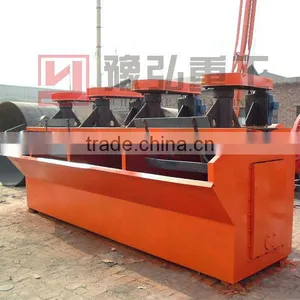

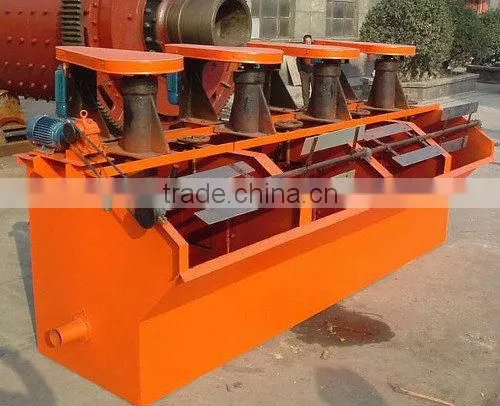

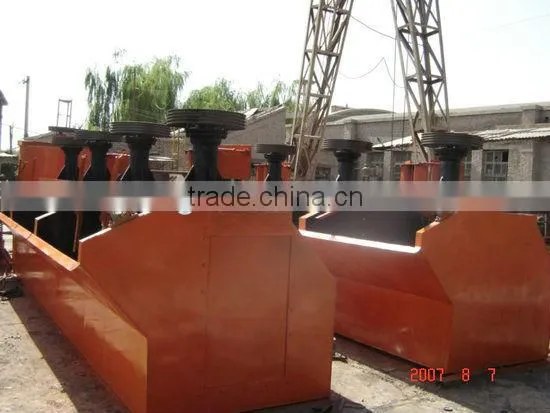

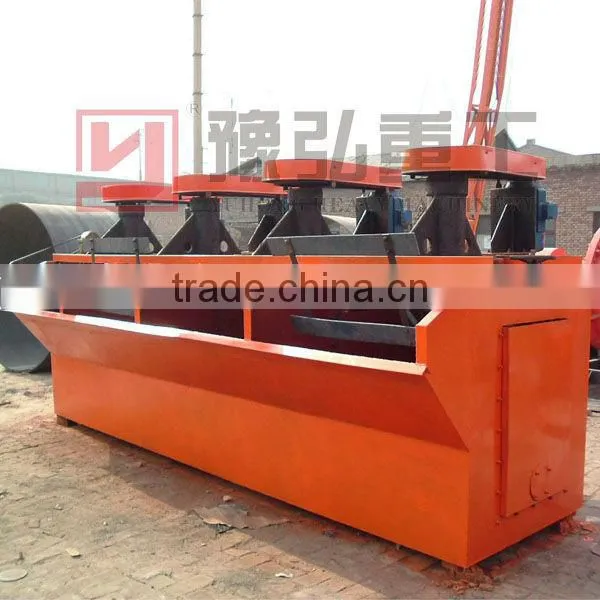

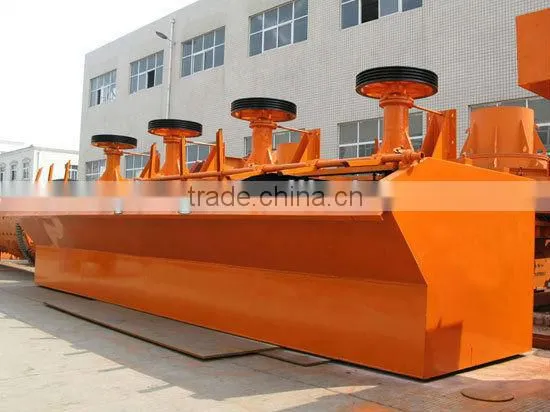

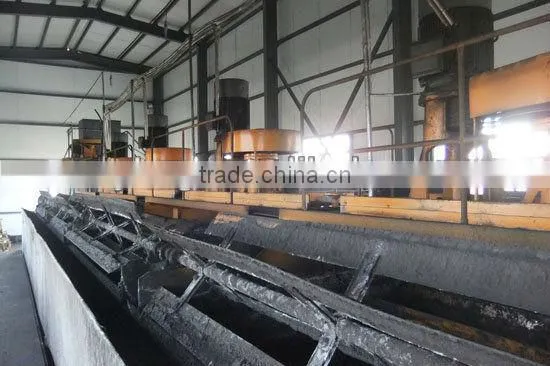

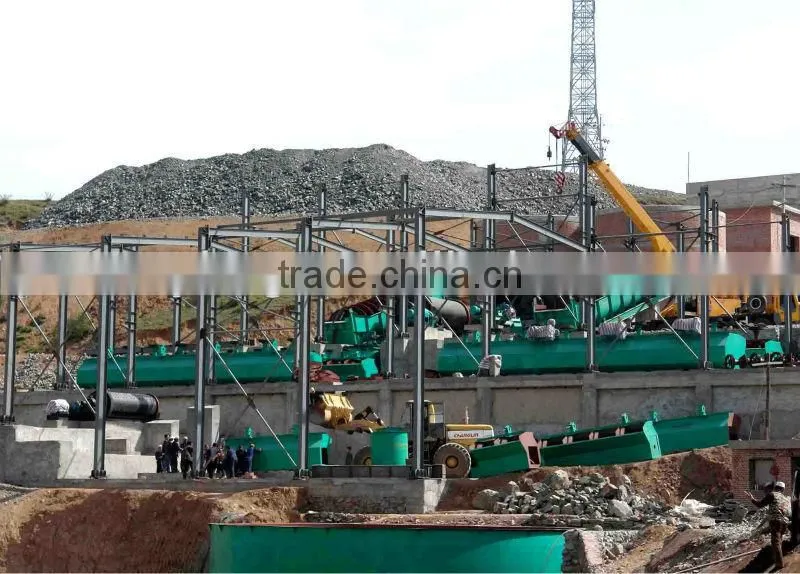

Help CenterHigh Efficiency Gold Recovery Equipment-flotation Machine From Yuhong
Related Products
-
High Efficiency Magnetic Gold SeparatorUS$ 1,000 - 999,999MOQ: 1 Set -
Industrial Wet High Intensity Magnetic Separator ManufacturerUS$ 1 - 9,999,999MOQ: 1 Set
-
Waste Ore Tails Recovery Machine Hot Sale In South-east Asia With Better Tails Machine Recovery PriceUS$ 8,000 - 23,000MOQ: 1 Set
-
China Yuhong Fine Tails Recovery System Machine After Magnetic Separator Iron Tails Price for SaleUS$ 8,000 - 23,000MOQ: 1 Set
-
Henan Yuhong High Efficiency Waste Ore Tailings Recycling Machine 300Type 350Type 700TypeUS$ 8,000 - 23,000MOQ: 1 Set
Specifications
gold recovery equipment:1.Large air-absorption capacity
2.Low energy consumption
3.Mineral slurry circulation is reasonable
Introduction of gold recovery equipment:
Flotation machine is widely used for roughing, concentrating and reverse flotation of nonferrous metals that include copper, lead, zinc, nickel and molybdenum, ferrous metal and nonmetallic minerals.
Features of gold recovery equipment:
1. Large air-absorption capacity
2. Low energy consumption
3. Every cell owns three functions: air absorption, slurry absorption, and floatation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow.
4. The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse sand to the largest extent.
5. There is self-control device on the surface of mineral slurry, so it is easy to adjust it.
6. The impeller has backward inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.
Principle of gold recovery equipment:
Flotation machine is applicable for the separation of nonferrous metal and ferrous metal. It is also used for separating nonmetal, such as fluorite and talcum.Through V belt transmission, which brings centrifugal effect to form the negative pressure. On the one hand, the flotation machine inhales sufficient air to mix with ore slurry; On the other hand it stirs ore slurry and mix with medication to form the mineralized froth. By adjusting the height of flashboard to control the liquid level and make the useful froth scraped by loam board.
Parameter:
Model |
Single slot effective volume(m3) |
Impeller diameter(mm) |
Capacity(m3/min) |
Impeller speed(r/min) |
Scraper speed(r/min) |
Motor |
Dimension(mm) |
Single slot weight (t) |
|
Type |
Power(kw) |
||||||||
XJK—0.13 |
0.13 |
200 |
0.05-0.16 |
600 |
17.5 |
Y90L-4 |
1.5 |
2100*865*900 |
0.35 |
XJK—0.23 |
0.23 |
250 |
0.12-0.28 |
500 |
17.5 |
Y90L-4 |
1.5 |
2625*1130*1290 |
0.41 |
XJK—0.35 |
0.35 |
300 |
0.15-0.5 |
470 |
17.5 |
Y100L1-4 |
2.2 |
3012*1350*1320 |
0.45 |
XJK—0.62 |
0.62 |
350 |
0.3-0.9 |
400 |
16 |
Y100L2-4 |
3 |
3800*1500*1550 |
0.85 |
XJK—1.1 |
1.1 |
500 |
0.6-1. 6 |
330 |
26 |
Y132M-6 |
5.5 |
4680*1820*1950 |
1.4 |
XJK—2.8 |
2.8 |
600 |
1.5-3.5 |
280 |
26 |
Y160L-6 |
11 |
7750*2600*2700 |
2.43 |
service concept:
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big items.
For more information, Please to visit: /group/en-us/
