Specifications
1.high efficiency , energy saving ,2.high throughput , economical and reasonable and so on .
Introduction

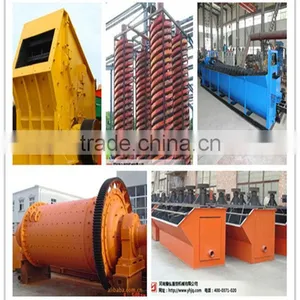

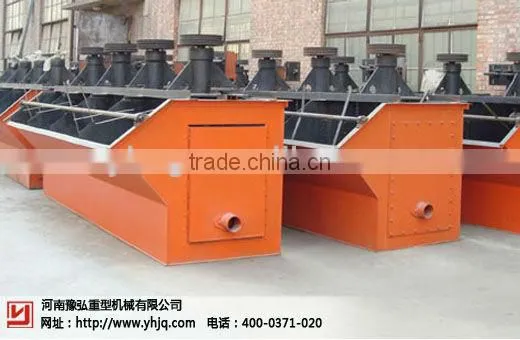

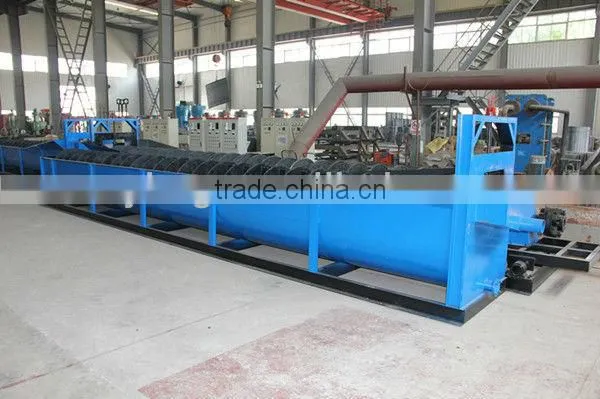

Gold ore dressing production line are mainly made up of jaw crusher , ball mill , classifier , magnetic separator , flotation machine , thickener , dayer and so on . It can be matched with mine machine , elevator , conveyor to constitute complete ore dressing production line .
It has the advantages as follows :
1.high efficiency , energy saving ,
2.high throughput , economical and reasonable and so on .
Process Flow
Gold Ore Dressing Production Linw Flow : raw gold ore -> crushing, screening -> conveying -> grinding and sizing -> flotation separation -> concentration (gravity separation or leaching and adsorption ) –> dryer –> fine gold ore.
v Gold Ore Crushing , Screening and Conveying

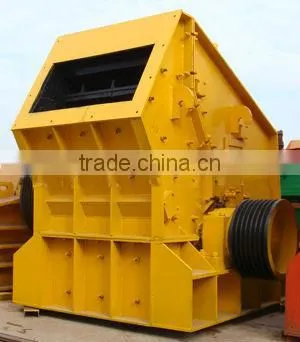

Crushing and conveying system is used to in gold ore processing plant. Primary crushing, tertiary crushing equipment like jaw crusher, cone crusher, VSI crusher is used to break the larger rocks down to a size suitable for transport on the conveyor.
Rubber belt conveyor transports the crushed gold ore and waste rock approximately to the grinding mill and waste disposal area. Large electromagnets remove any steel debris excavated. Inclined vibrating screen is used to sizing the crushed gold ore.
v Gold Ore Grinding and Sizing
Grinding and size classification to reduce the ore down to a fine particle size.
Gold ore is stockpiled at the grinding mill before being fed into a ball mill with lime, water and steel balls. The larger particles from this mill are returned to the ball mill for more grinding. The finer particles receive more grinding in the ball mill, and sizes are classified to give a final product of 80% <70 microns.
v Gold Ore Concentration Plant for Beneficiation
Gold ore will be crushed to a coarse size before the ore is sent to the treatment plant via a conveyor. At the treatment plant, ground gold slurry and lime is crushed further and ground finely to slurry. The ore is initially processed by going through leaching and adsorption process in the treatment plant.
Service Concept:
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big items.
For more information, Please to visit: http://www.s-crusher.com
