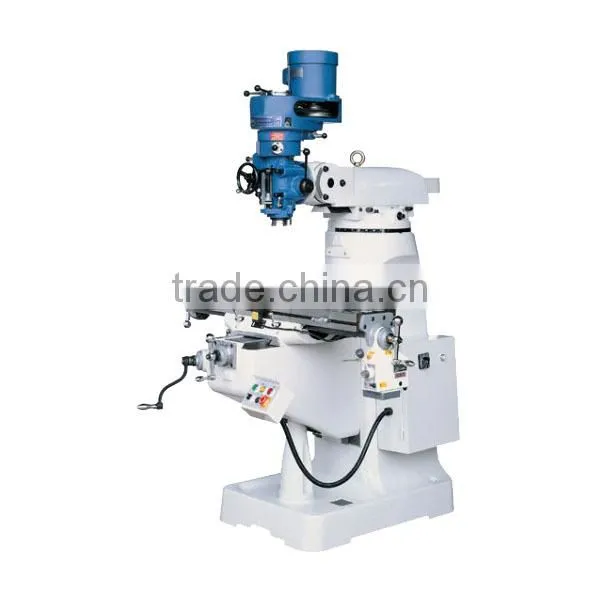

[Handy-Age]-Knee Type Milling Machine (MW0800-035)

[Handy-Age]-Knee Type Milling Machine (MW0800-035) thumbnail-1
[Handy-Age]-Knee Type Milling Machine (MW0800-035) thumbnail-2
[Handy-Age]-Knee Type Milling Machine (MW0800-035) photo-1
[Handy-Age]-Knee Type Milling Machine (MW0800-035) photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Handy-Age
Model Number:
MW0800-035
Contact Supplier Request Quote Chat Now
Handy-age Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
To be advised
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name Handy-Age
Model Number MW0800-035
Condition New

Item: Variable Speed Bed Type Milling Machine (MW0800-032)



Features

  • Max. Table Load: 200-250 kgs
  • Headstock swivel R&L 45 °; F&R 30 °

Description

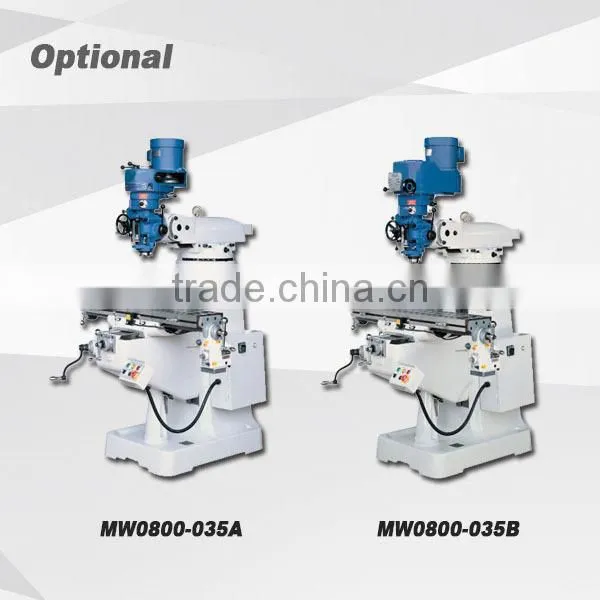

  • Milling Machine of A model: with Step Speed Head; B model: Variable Speed Head
  • R8 & NST30 Spindle Tapers are available
  • Work with high efficiency

Specification

ITEMS MW0800-035A MW0800-035B
TABLE WORKING SURFACE 1067x 230
T SLOT (Wx NO.x PITCH) 16x 3x 63
TRAVEL Xx Yx Z-Manual 725x 305x 406
Xx Yx Z-Auto 640x 305x 406
SPINDLE SPINDLE NOSE R8 or NST 30
STEPS 8 VARIABLE
SPINDLE SPEED RPM 80-2720 60-4200
SWIVELLING ANGLE 45° (R&L)
QUILL TRAVEL 127
QUILL FEEDS/REV. 0.04/ 0.08/ 0.15
SPINDLE NOSE TO TABLE 57-463
SPINDLE CENTER TO COLUMN 213-533
CROSS TRAVEL OF RAM 320
HORIZONTAL ROTATION OF RAM 360°
MOTOR VERTICAL SPINDLE 2HP-4P 3HP-4P
COOLANT PUMP 1/8HP-2P
SIZE MACHINE (Lx Wx H) 1400x 1450x 2100 mm
NET WEIGHT (KGS) 900
  • Standard Accessories:
    • Tool and tool box
    • One shot lubrication
    • Chip cover front and rear
  • Optional Accessories:
    • X.Y. power feed unit
    • Coolant equip with tray
    • Electric with control box
  • The product pictures are for your reference only: final spec & accessories based on formal quotation
