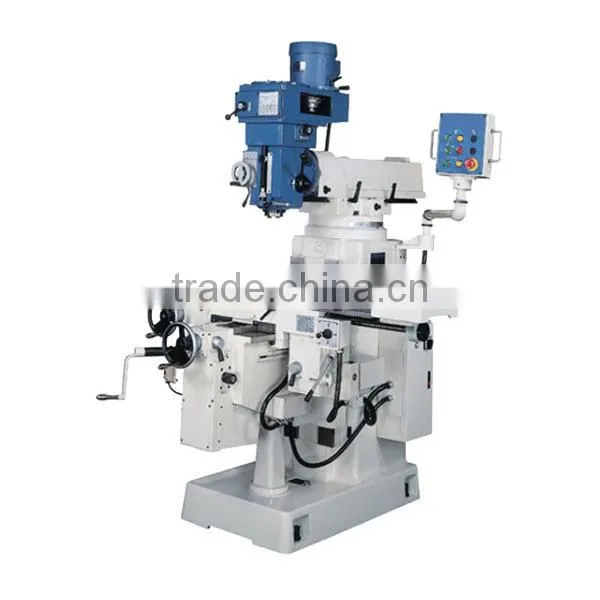

[Handy-Age]-Vertical Turret Mill (MW0800-025)

[Handy-Age]-Vertical Turret Mill (MW0800-025) thumbnail-1
[Handy-Age]-Vertical Turret Mill (MW0800-025) thumbnail-2
[Handy-Age]-Vertical Turret Mill (MW0800-025) photo-1
[Handy-Age]-Vertical Turret Mill (MW0800-025) photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Taiwan, China
Brand Name:
Handy-Age
Contact Supplier Request Quote Chat Now
Handy-age Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
To be advised
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Taiwan, China
Brand Name Handy-Age
Model Number MW0800-025
Type Other, Vertical Turret Mill
CNC or Not Normal
Power(W) Please refer to the specifications table
Dimension(L*W*H) 1740x 1540x 2300 mm
Weight optional
Warranty 1 year only starting from shipping date

Item: Vertical Turret Mill (MW0800-025)



Features

  • Max. Table Load: 350-400 kgs
  • Y-Axis ball screw with inverter movement
  • Hardened and ground slide ways assures that the table will stay where it belongs
  • Gear box feed to maintain powerful machining and end milling, and make working more efficiently
  • The very wide saddle 910mm keeps table movement smoothly in all directions to prevent from any deformation and allowance occurred

Description

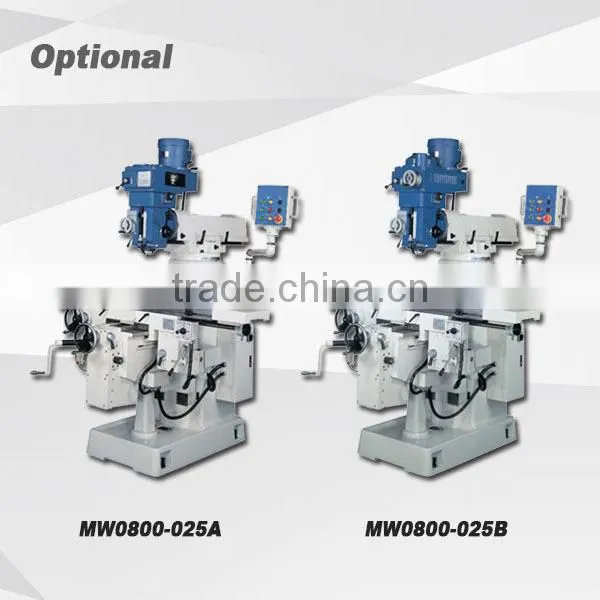

  • Two types of milling machine: step speed head (A) or variable speed head (B)
  • Main castings are made of meehante cast iron to ensure operation more steady
  • Delivery from Taiwan with superior quality

Specification

ITEMS MW0800-025A MW0800-025B
Table Working Surface 1270 x 300
T Slot (WxNo.xPitch) 16x 3 x 80
Travel XxYxZ-Manual 930x 400x 450
XxYxZ-Auto 920x 380x 450
Feed Long./Min. 22-384 (6 Steps)
Long. Rapid Traverse 1250/Min.
Cross (DC)/Min. 50-2200 Vari.
Verti. Rapid Traverse 430/Min.
Spindle Spindle Nose N.S.T. 40
Steps 16 Infinitely Vari.
Spindle Speed rpm 75-3600 90-3800
Swiveling Angle 45°,(R&L)
Quill Travel 140
Quill Feed/Rev. 0.035/0.07/0.14
Spindle Nose to Table 20-470
Spindle Center to Column 130-550
Cross Travel of Ram 420
Horizontal Rotation of Ram 360°
Motor Vertical Spindle Feed Long. 5HP- 2P/4P 5HP-4P
Feed Long. 3/4HP-4P
Feed Cross (DC) 1/2HP~4P-1/5
Rapid Vertical 1/2HP~4P-1/10
Coolant Pump 1/8 HP-2P
Size Machine (LxWxH) 1740x 1540x 2300 mm
N.W. (Kgs) 1650 1700
  • Standard Accessories:
    • Coolant Equipment
    • Long. Gear Box Feed
    • Cross Inverter Motor Feed with Ball Screw
    • Vertical Head Auto Lub. Pump
    • Slide Way Auto Lub. Pump
    • Table Elevating Motor
  • Optional Functions:
    • Vert. Head Inverter with controller
    • X Axis Feed Motor 1HP – 2P/4P
    • X Axis Ball Screw with inverter movement
  • The product pictures are for your reference only: final spec & accessories based on formal quotation
