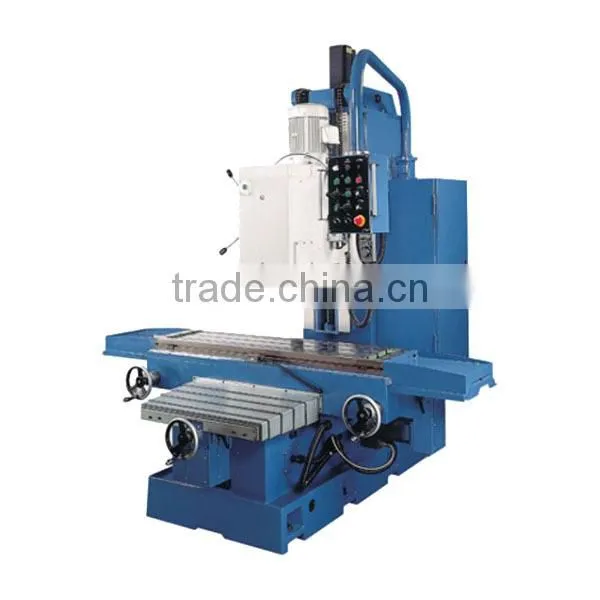

[Handy-Age]-Bed Type Vertical Mill (MW0800-028)

Name: [Handy-Age]-Bed Type Vertical Mill (MW0800-028)
Brand: Handy-Age
SKU: 139094105

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Taiwan, China

Brand Name:

Handy-Age

Handy-age Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

To be advised

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Taiwan, China

Brand Name Handy-Age

Model Number MW0800-028

Type Other, Bed Type Vertical Mill

CNC or Not Normal

Power(W) Please refer to the specifications table

Dimension(L*W*H) 2334x 2005x 2490 mm

Weight optional

Warranty 1 year only starting from shipping date

Item: Bed Type Vertical Mill (MW0800-028)

Features

Max. Table Load: 600 kgs
Spindle Taper NST50 (A model) or NST40 (B model)
The box-frame construction base to assure high accurate machining and heavy duty cutting
With the finest double V Type Slide Way on X,Y Axes to provide stable movement and long term of feeding precision
The very wide saddle 1530mm keeps table movement smoothly in all directions to prevent from any deformation and allowance occurred

Description

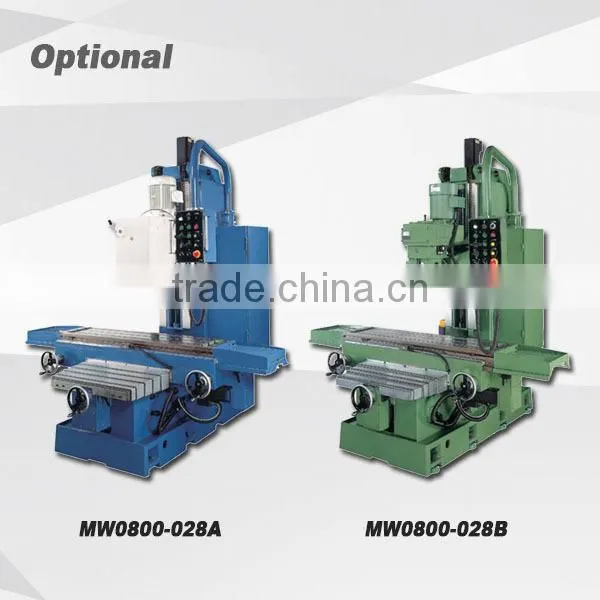

Two types of Bed type mill: Heavy Duty Inverter Variable Speed Head (A model) or Turret Inverter Vari. Speed Head (B model)
X/Y/Z Axes feed are equipped with high precision C5 Class Double Nut Ball Screw, which fully supported movement to maintain long wear resistance and precisely feeding
The movement of 3 axes is driven by AC Servo Motor feeding through the precision ball screw, which will allow accurate positioning. The MPG fine feeding system on Z Axis can offer a high quality of efficient performance
Vertical Head is equipped with the lubrication pump, which can be cooling the gear inside of the head to prevent noise and deformation occurred from overheating

Specification

Standard accessories:
- Coolant equipment
- X. Y. Z ball screw
- X. Y. Z ac servo motor
- Z axis mpg system
- Y, Z telescopic cover
- X, Y, Z slide ways auto lub. pump
The product pictures are for your reference only: final spec & accessories based on formal quotation
