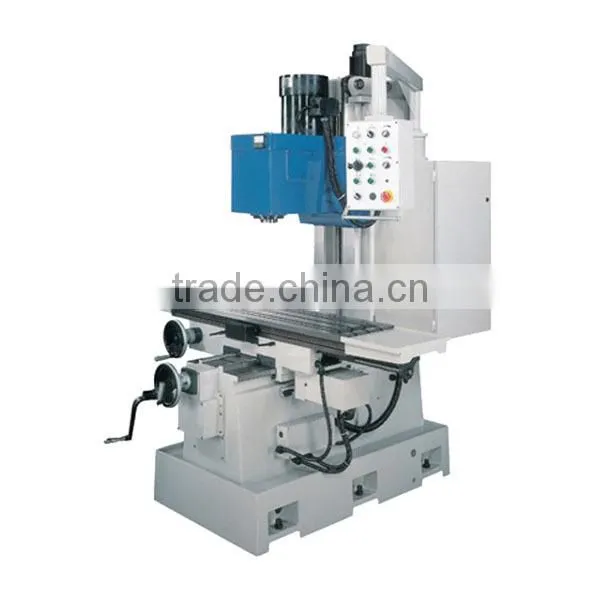

[Handy-Age]-Heavy Duty Bed Type Vertical Mill (MW0800-029)

[Handy-Age]-Heavy Duty Bed Type Vertical Mill (MW0800-029) thumbnail-1
[Handy-Age]-Heavy Duty Bed Type Vertical Mill (MW0800-029) photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Taiwan, China
Brand Name:
Handy-Age
Contact Supplier Request Quote Chat Now
Handy-age Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
To be advised
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Taiwan, China
Brand Name Handy-Age
Model Number MW0800-029
Type Other, Bed Type Vertical Mill
CNC or Not Normal
Power(W) Please refer to the specifications table
Dimension(L*W*H) 1870x 1586x 2290 mm
Weight 2600Kgs
Warranty 1 year only starting from shipping date

Item: Heavy Duty Bed Type Vertical Mill (MW0800-029)



Features

  • Bed type mill with variable speed head & heavy duty inverter
  • X/ Y/ Z Axes Servo Motor
  • X/Y/Z Axes Ball Screw

Description

  • Max. Table Load: 450 kgs
  • Spindle Taper NST40
  • Made in Taiwan with stable quality
  • Main castings are made of meehante cast iron to ensure the longevity of accurate operation

Specification

ITEMS MW0800-029
Table Working Surface 1270x 370 mm
T Slot (WxNo.xPitch) 16x 3x 80
Travel XxYxZ-Manual 930x 430x 550 mm
XxYxZ-Auto 920x 410x 540 mm
Feed Long./Min. 30-3000 Vari.
Long. Rapid Traverse/Min. -
Cross/Min. 30-3000 Vari.
Vertical/Min. 30-2200 Vari.
Spindle Spindle Nose N.S.T. 40
Steps Inverter Variable
Spindle Speed (RPM) 60-1500
Swiveling Angle Fixed
Quill Travel -
Quill Feeds/Rev. -
Spindle Nose to Table 130-670mm
Spindle Center to Column 450mm
Motor Vertical Spindle 5HP-6P INVERTER
Feed Long SERVO 750W
Feed Cross SERVO 750W
Feed Vertical SERVO 850W
Coolant Pump 1/8HP-2P
Size Machine (LxWxH) 1870x 1586x 2290 mm
N.W. 2600Kgs
  • The product pictures are for your reference only: final spec & accessories based on formal quotation
