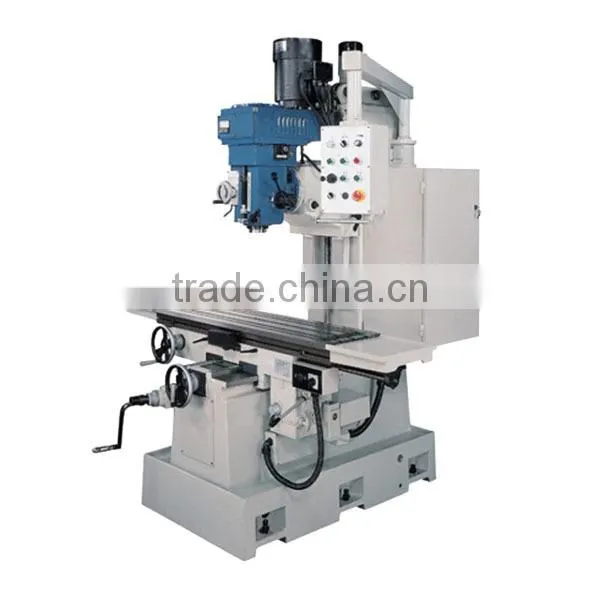

[Handy-Age]-Variable Speed Bed Type Milling Machine (MW0800-032)

[Handy-Age]-Variable Speed Bed Type Milling Machine (MW0800-032) thumbnail-1
[Handy-Age]-Variable Speed Bed Type Milling Machine (MW0800-032) photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Taiwan, China
Brand Name:
Handy Age
Contact Supplier Request Quote Chat Now
Handy-age Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
To be advised
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Taiwan, China
Brand Name Handy Age
Model Number MW0800-032
Type Other, Bed Type Milling Machine
CNC or Not Normal
Power(W) Please refer to the specifications table
Dimension(L*W*H) 1870x 1485x 2330 mm
Weight 2550Kgs
Warranty 1 year only starting from shipping date

Item: Variable Speed Bed Type Milling Machine (MW0800-032)



Features

  • Max. Table Load: 450 kgs
  • Cross manual movement
  • 3 axis lead screw movement
  • Table swivel R&L 45 °
  • Longitudinal power feed and rapid traverse gear box type

Description

  • Bed type mill with Turret Inverter Vari. Speed Head
  • Optional Functions selected item 1 or 2:
    • 1) X, Y Axes Ball Screw with Inverter Movement, Stepless Speed Range from 50-2200 mm/min
    • 2) 3 Axes Ball Screw with 3 Axes AC Servo Motor Driving System
  • Ship from Taiwan with superior quality

Specification

ITEMS MW0800-032
Table Working Surface 1270x 370 mm (1470x 370 OPT.)
T Slot (WxNo.xPitch) 18x 3x 80
Travel XxYxZ-Manual 930x 430x 550 mm
XxYxZ-Auto 920x 410x 540 mm
Feed Long./Min. 18-640(12 Steps)
Long. Rapid Traverse/Min. 2083
Cross/Min. -
Vertical/Min. 565 Rapid
Spindle Spindle Nose N.S.T. 40
Steps Inverter Variable
Spindle Speed (RPM) 60-3600
Swiveling Angle 45°,(R&L)
Quill Travel 140
Quill Feeds/Rev. 0.035/0.07/0.14
Spindle Nose to Table 130-670mm
Spindle Center to Column 450mm
Motor Vertical Spindle 5HP-4P INV.
Feed Long 1HP-2/4P
Feed Cross -
Feed Vertical 1/2HP-4P-1/5
Coolant Pump 1/8HP-2P
Size Machine (LxWxH) 1870x 1485x 2330 mm
N.W. 2550Kgs
  • The product pictures are for your reference only: final spec & accessories based on formal quotation
