[Handy-Age]-Taiwan Made Vertical Turret Milling (MW0800-037)

[Handy-Age]-Taiwan Made Vertical Turret Milling (MW0800-037) thumbnail-1
[Handy-Age]-Taiwan Made Vertical Turret Milling (MW0800-037) thumbnail-2
[Handy-Age]-Taiwan Made Vertical Turret Milling (MW0800-037) photo-1
[Handy-Age]-Taiwan Made Vertical Turret Milling (MW0800-037) photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Taiwan, China
Brand Name:
Handy-Age
Contact Supplier Request Quote Chat Now
Handy-age Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
To be advised
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Taiwan, China
Brand Name Handy-Age
Model Number MW0800-037
Type Other, Vertical Turret Milling
CNC or Not Normal
Power(W) Please refer to the specifications table
Dimension(L*W*H) 1500x1500x2200 mm
Weight 1280 kgs
Warranty 1 year only starting from shipping date

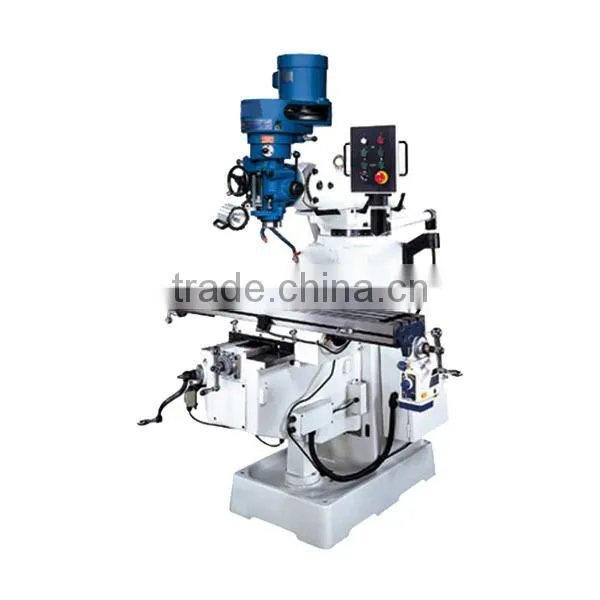

Item: Taiwan Made Vertical Turret Milling (MW0800-037)



Features

  • Max. Table load: 250-300 kgs
  • Wide saddle 650 x 240mm
  • Headstock swivel 45 ° (R&L, F&R)

Description

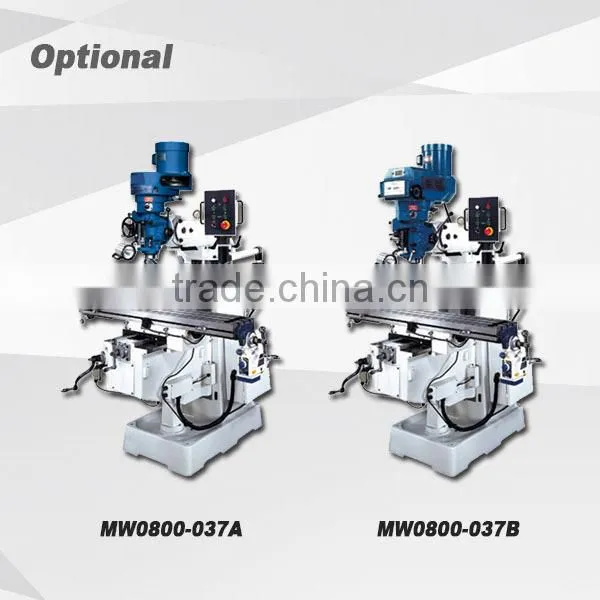

  • Milling Machine of A model: with Step Speed Head; B model: Variable Speed Head
  • R8 & NST30 Spindle Tapers are available
  • With solid construction for efficient working

Specification

ITEMS MW0800-037A MW0800-037B
TABLE WORKING SURFACE 1270x 254
T SLOT (WxNO.xPITCH) 16x 3x 63
TRAVEL XxYxZ-MANUAL 775x 400x 406
XxYxZ-AUTO 700x 400x 406
SPINDLE SPINDLE NOSE R8 or NST 30
STEPS 8 VARIABLE
SPINDLE SPEED RPM 80-2720 80-3800
SWIVELLING ANGLE 45° (R&L)
QUILL TRAVEL 127
QUILL FEEDS/REV 0.04/ 0.08/ 0.15
SPINDLE NOSE TO TABLE 40-446
SPINDLE CENTER TO COLUMN 200-680
CROSS TRAVEL OF RAM 480
HORIZONTAL ROTATION OF RAM 360°
MOTOR VERTICAL SPINDLE 3HP-4P 3HP-4P
COOLANT PUMP 1/8HP-2P
SIZE MACHINE (LxWxH) 1500x1500x2200 mm
NET WEIGHT(KGS) 1280 kgs
  • Standard Accessories:
    • Tool and tool box
    • One shot lubrication
    • Chip cover front and rear
    • Saddle size: 650 length
  • Optional Accessories:
    • X,Y power feed unit
    • Coolant equip with tray
    • Electric with control box
    • Table elevating motor
    • Spindle taper N.S.T. 40 with Quill dia. 100 mm
  • The product pictures are for your reference only: final spec & accessories based on formal quotation
