Home > Products > Biological Homogenizer Cleaner > laboratory Freeze Dryer

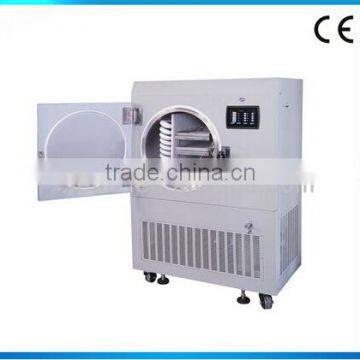

laboratory Freeze Dryer
USD $1 - $10,000
/ Set
1 Set(Min.Order)
- 2000 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Freeze Drying Equipment | |
| Place of Origin | Shanghai, China | Brand Name | Petty | |
| Model Number | 10ND Insitu (Electric Heating) Freeze-Drying Machine | Voltage | 220V/50Hz or 110V/60Hz | |
| Power(W) | 1000W | Dimension(L*W*H) | 820*650*550 | |
| Weight | 105kgs | Certification | CE,ISO | |
| Warranty | One year | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
laboratory Freeze Dryer1.Low energy consumption
2.big dry area
3.independent operation of drying chamber
4.large LCD
10ND Freeze Dryer
Features:
1.Prefreeze drying process at in situ situation, high transparent organic glass door to observe working procedure
2.Shelf temperature adjustable, controllable, detectable; its suitable for pilot scale and small production
3. LCD screen display, PID control, drying curve displayed on the screen
4.Square tray is shape not easily to deformed, easy to operate and clean
5.With Gas charging valve can fill with inert gases like nitrogen gas
Main Technical Parameters:
| Drying | Model | Unit | 10ND | 30ND | 50ND | |
| chamber | (In-situ) | (In-situ) | (In-situ) | |||
| Specification | Ordinary | Top-Press | Ordinary | Ordinary | ||
| Drying Area | m2 | 0.2 | 0.1 | 0.3 | 0.6 | |
| No.of Tray | layer | 2 | 1 | 3 | 4 | |
| Temp. Range | °C | -45~60 | -45~60 | 45~60 | ||
| Shelf Gap | mm | 70 | 70 | 70 | ||
| Shelf Size | mm | 240*430*20 | 240*430*20 | 350*430*20 | ||
| Capture | φ22 Penicillin Vial | PC | 370 | 185 | 546 | 1056 |
| water | φ16 Penicillin Vial | PC | 768 | 384 | 1080 | 2046 |
| trap | φ14 Penicillin Vial | PC | 970 | 485 | 1452 | |
| φ12 Penicillin Vial | PC | 1300 | 650 | 1950 | 3690 | |
| Temperature | °C | ≤-55(No-load) | ≤-55(No-load) | ≤-55(No-load) | ||
| Ability to | Kg/24h | 3 | 1.5 | 6 | 10 | |
| Capture Water | ||||||
| Parameters | Power | KW | 1.0 kw | 2.0 kw | 3.0 kw | |
| Power Supply | V/Hz | 110-115V or 220-240V 50/60Hz | 110-115V or 220-240V 50/60Hz | 380V/50Hz | ||
| Plate Load | L | 2 | 1 | 3 | 6 | |
| Capacity | ||||||
| Electric Defrost | - | / | / | Y | ||
| Vacuum | Pa | ≤10 | ≤10 | ≤10 | ||
| Cooling Mode | - | Air cooling: well | Air cooling: well | Air cooling: well | ||
| ventilated room | ventilated room | ventilated room | ||||
| temperature ≤25°C | temperature ≤25°C | temperature ≤25°C | ||||
| Dimension | mm | 820*650*550 | 630*800*1400 | 630*800*1400 | ||
| Drying | cylindrical | cylindrical | cylindrical | |||
| chamber | ||||||
| shape | ||||||
