80-120kg/h mini sawdust pelletizer small wood pellet machine with fast delivery

FOB Price

USD $1,000 - $4,000 / Set

1 Set(Min.Order)

Supply Ability 18 Set / Sets per Month
Port Shanghai; Tianjing; Qingdao;Ningbo;Dalian;Alataw Pass;
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Henan, China	Brand Name:	Guangda small wood pellet machine
Model Number:	KL-200	Voltage:	220v/380v	Power(W):	7.5kw
Dimension(LWH):	1000x430x950mm	Weight:	200kg	Certification:	ISO CE TUV
Warranty:	one year after testing well	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

80-120kg/h mini sawdust pelletizer small wood pellet machine with fast delivery

Roller & mould material: alloy steel
Pellet diameter: 6-15mm (normally 6&8mm)
Pellet length: 20-50mm (adjustable)
Tractor PTO driven or diesel engine
Raw material moisture requirement: 10-15%
Application: sawdust, rice husk, cotton stalk, cotton seed skins, weeds, crop stalks etc

Product Description

This machine is energy-saving products, it mainly applied to granulation, such as sawdust, rice husk, cotton stalk, cotton seed skins, weeds and crop stalks etc, also it can also be applied to biological-fertilizer, organic manure, fertilizer, fuel pellet. The raw material moisture content needs to be about 10%-15% before pellet process

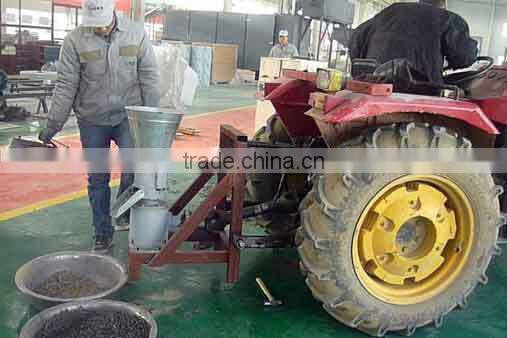

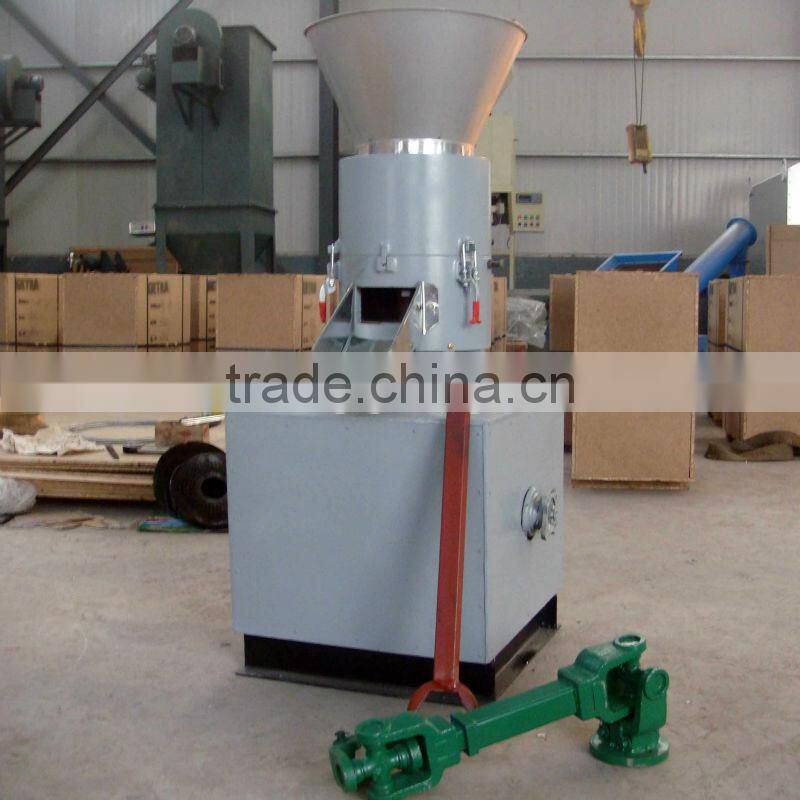

1. Tractor PTO driven model

Tractor PTO driven, 3 point hitch linkage, flexible and integrated installation, east mounting and dismounting

Model	Capacity (wood pellet)	Capacity (Animal feed)	Power	N./G.W kg	Dimension mm
KL120	50-60 kg/h	80-100 kg/h	3kw/8hp	130/150	820x350x800
KL150	80-100 kg/h	110-180 kg/h	4kw/10hp	160/185	910x400x890
KL200	120-180 kg/h	200-300 kg/h	7.5kw/15hp	225/255	1000x430x950
KL230	180-250 kg/h	300-400 kg/h	11kw/22hp	290/320	1140x470x970
KL260	250-380 kg/h	400-600 kg/h	15kw/33hp	330/360	1120x500x1070
KL300	380-450 kg/h	600-800 kg/h	22kw/41hp	410/459	1220x600x1000

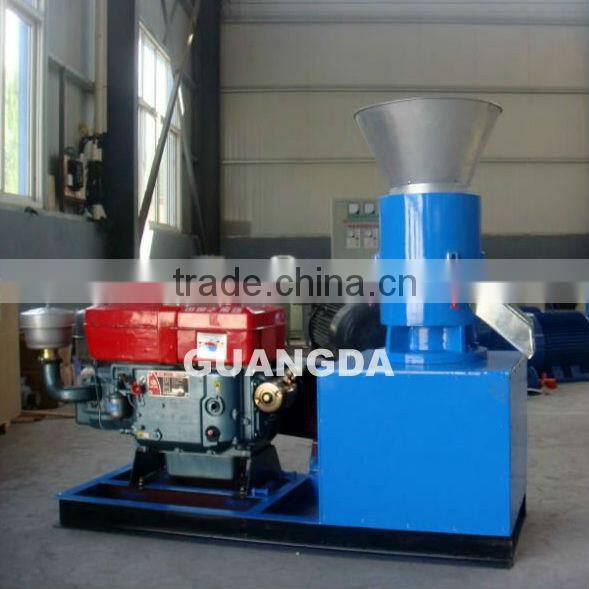

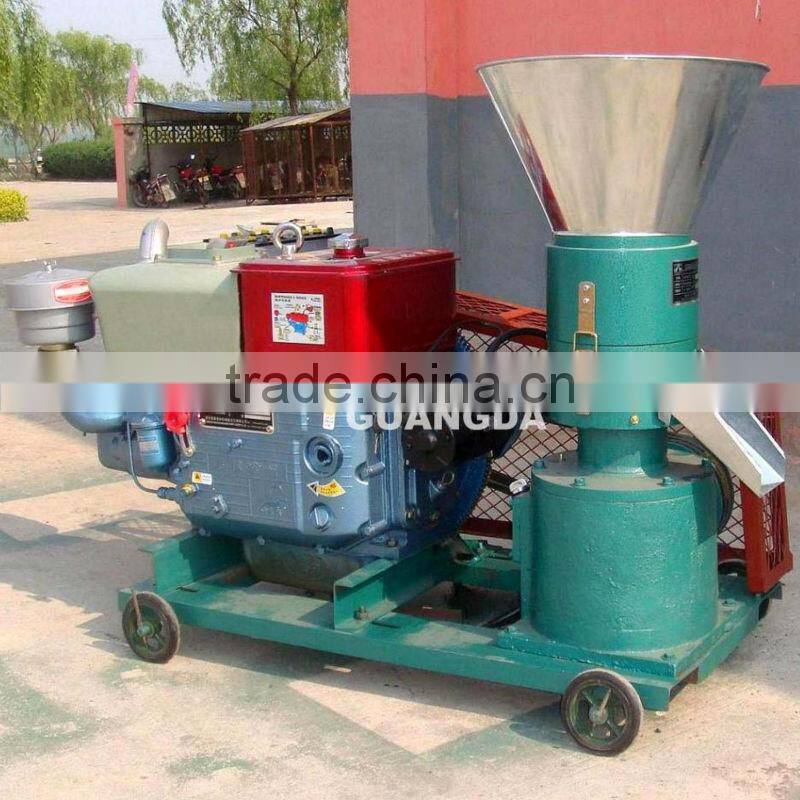

2. Diesel engine model

Feature

Roller & mould material: alloy steel
Pellet diameter: 6-15mm (normally 6&8mm)
Pellet length: 20-50mm (adjustable)
Tractor PTO driven & diesel engine model
Raw material moisture requirement: 10-15%
Application: sawdust, rice husk, cotton stalk, cotton seed skins, weeds, crop stalks etc

Application

This series machines are powered by Tractor PTO shaft or diesel engine, which is used for making the wood pellet, straw pellet, sawdust pellet, bamboo powder, rice husk, cotton stalk, seed skin, peanuts shell, cotton seed shell etc, and can mix with all kinds of powder materials for the fuel.

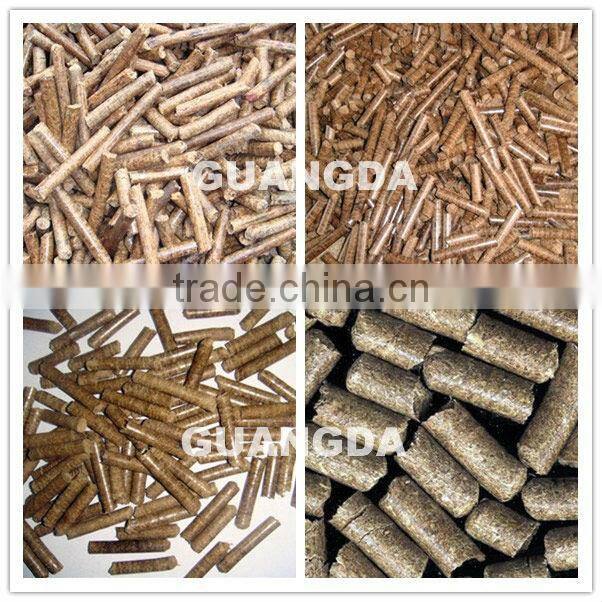

Pellet sample

Our Services

Pre-sale service

24hours online to ensure quick response to customers' inquiry or online message
guide customers to choose the best suitable machine model, offer detailed specification and competitive prices

Contract execution

Machine production will be arranged strictly according to the contract
Machine photos will be sent to you for reference and inspection during production
Machines will be strictly inspected and tested before delivery
Strong enough packages to prevent possible damages during shipping
Send customs clearance documents by DHL
Keep customers to be informed of vessel location while shipping and get them prepared for customs clearance work

After-sale service

12 months warranty except for wear parts
broken spare parts (except for wear parts) will be sent for free due to quality problems
In time response to customers technical problems
New products update for customers' reference

Company Information

Henan Guangda is a professional manufacturer and supplier of farm machinery, has been engaging in the international trading for 14 years. 12-180hp wheel tractor, agricultural implements and forest machinery are our main production, one-stop service is our main feature. Products are widely exported to North America, Europe, Africa, South America and Southeast Asia. Featuring high quality standards, rigorous management measures and advanced technology, we have built up very fine reputation among both domestic and overseas customers.

FAQ

1. Free tool box and free easy damage parts

2. Warranty: warranty time is 12 months after the goods delivery your port.

3. Color: according to your requirement

4. Logo: can stick your logos free if you need

5. Delivery time: 25 days after the down payment

6. Payment: The payment term is T/T (30% deposit in advance, 70%T/T as balance before shipment)

7. Various attachments and implements are supplied too for the tractors

8. technical service offered whenever you are in need
