High capacity CE approved ring die vertical wood chips pellet mill from China :
Biomass big pellet mill is used to produce pellets for heating, cooking or animal bedding. It can process raw materials like wood, sawdust, bamboo, pine, alfalfa, straw, wheat bran, cotton stalk, rice husk, cotton stalk, and many other biomass materials. And the vertical ring die type pellet machine is our patent product. It’s adopt the ring die type pellet machine and flat die type pellet machine advantage, and it’s own characteristic of low speed and high pressure, and suitable the hard material
Requirements for raw materials:
Size:1-2mm(All the raw materials must be crushed into sawdust before going to vertical ring die wood pellet mill.If not, you may need a wood chipper, wood crusher.)
Moisture: Generally, 10-15% is best for producing good quality wood pellet. If too high, or too low, you need to dry or moisture them first.
vertical wood chips pellet mill
Model |
Power(KW) |
Capacity(T) |
Weight(T) |
Size(mm) |
G-D450-II |
55 |
0.8-1.5 |
2 |
1350*850*1500 |
G-D550-II |
110 |
1.5-2 |
4 |
1850*1050*1800 |
G-D680-II |
160 |
2-2.5 |
6 |
2150*1180*1950 |
G-D860-II |
220 |
2.5-3.5 |
8 |
2430*1380*2100 |
G-D980-II |
315 |
3.5-5 |
12 |
2800*1500*2500 |

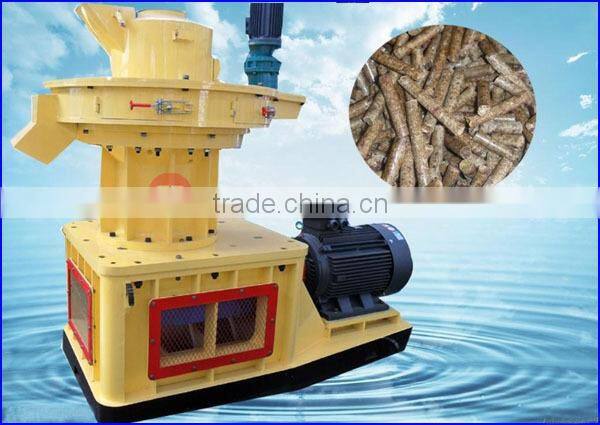

Vertical ring die wood pellet mill:

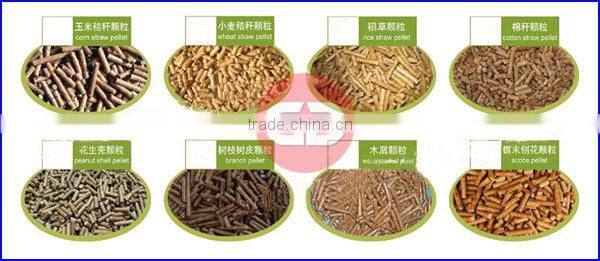

The finished pellets:
Generally the the pellet diameter is 4mm, 6mm or 8mm, and mainly according your requirement. And the pellet diameter 4-12mm is operable for our machine. Our machine can suit for many different raw material, like sawdust, straw, efb etc biomasss material.

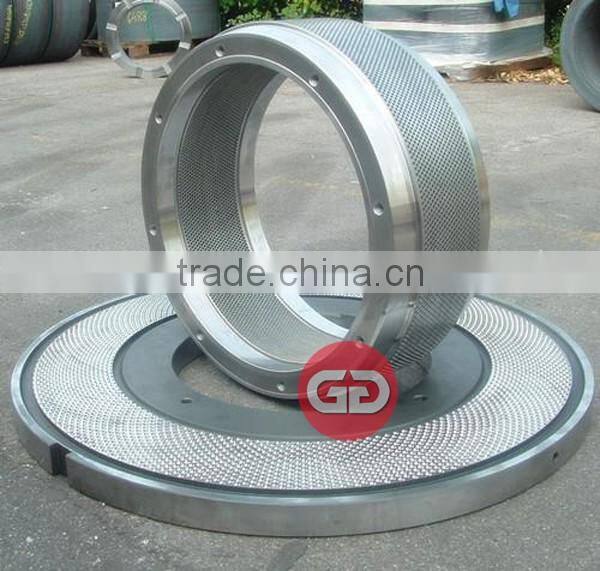

For the vertical ring die big pellet machine, generally the quick wear spare parts is roller and die. Roller and die life time is about 800-1000 hours, depend on the different material the life time have some difference. So we suggest you order some roller and die for spare, when you order the pellet machine.
1. Die static, the roller rotating, and material centrifugal, evenly around.
2. Vertical feed and directly in place. Good heat dissipation.
3. Double layer die, up and down dual use, cost efficiency, and also dual-uses, high energy saving.
4. Ring die, vertical structure, in favor of the thermal cooling of granulation chamber
5. Separate discharge device, ensure the forming rate of pellets.
6. 24 hours working with automatic lubrication.
7. low cost, high capacity, energy saving.
8. Upward mould, special structure, vertically feeding and easier heat dissipation.
9. Die static, roller rotating, material centrifugal and distributed around evenly.

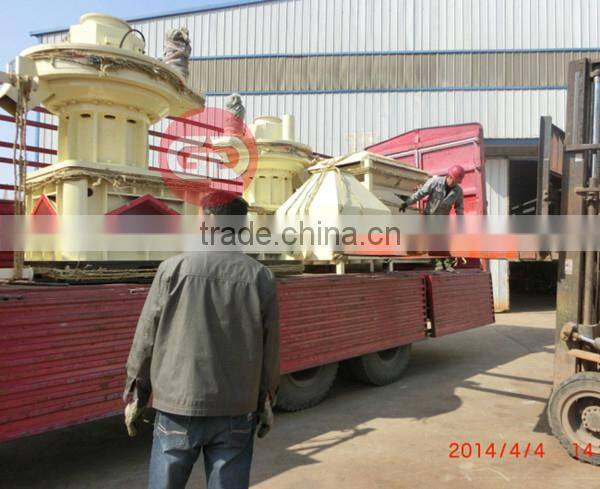

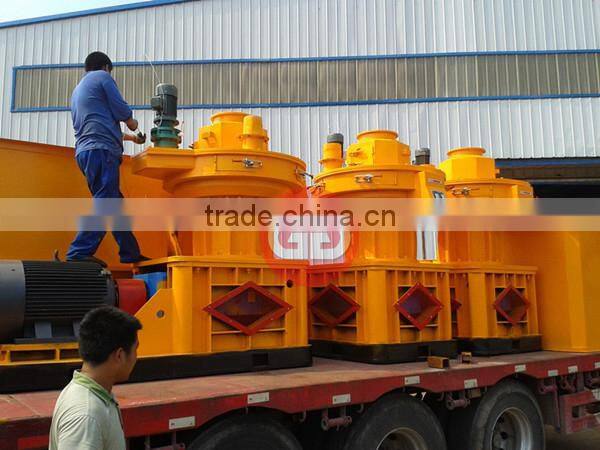

Delivery and package
Henan Guangda is a professional manufacturer and supplier of farm machinery for over 14 years experience. As a state-owned enterprise in China, we have good Customs Export Records as well as Tax reputable business. It's our pleasure to help you purchase good quality products with competitive price!
For export, our main products include wood crusher, drum/disc wood chipper, twin shaft shredder, crusher chipper in-one-machine, pellet mill, pellet produciton line, sawdust crusher machine, feed hammer mill,dryer, etc.,These Products are widely exported to over 50 countries all over North America, Europe, Africa, South America and Southeast Asia. Featuring high quality standards, rigorous management measures and advanced technology, we have built very good reputation among both domestic and overseas customers!
Welcome to Guangda Machinery!
♣ pellet production line ♣ disc wood chipper ♣ drum chipper ♣ diesel engine biomass crusher
♣ wood sawdust machine ♣ wood flour mill ♣ wood debarker ♣ compact sawdust machine
♣ small flat die pellet mill ♣ Diesel engine feed mill ♣ vertical wood pellet machine
♣ ring die pellet machine ♣ Wood powder machine ♣ wood board shredder
♣ pallet shredder ♣ sawdust briquette machine ♣ efficient wood crusher ♣ wood crusher
[Step 1] Send a inquiry by email or trademanager in below.
[Step 2] We proivide you competitive offer for quality product.
[Step 3] Confirm delivery time and freight operation.
[Step 4] Arrange production after 30% deposit received by T/T.
[Step 5] Confirm consignee and notify party information.
[Step 6] Balance payment received and book ship arranges shipping.
[Step 7] Commercial invoice, packing list and bill of lading sent to you.
[Step 8] Product received. Spare parts can be offered all life.
12 months warranty except for wear parts
broken spare parts (except for wear parts) will be sent for free due to quality problems
Accessories can be offered in the whole life service.
In time response to customers technical problems
New products update for customers' reference
Good quality, mature technology, competitive price and good after-sales service!
If you want a competitive price and more details, pls kindly contact us, we will try our best to satisfy you!
