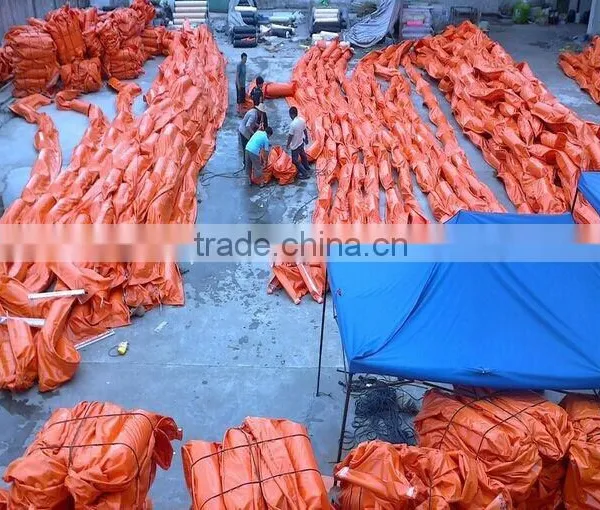

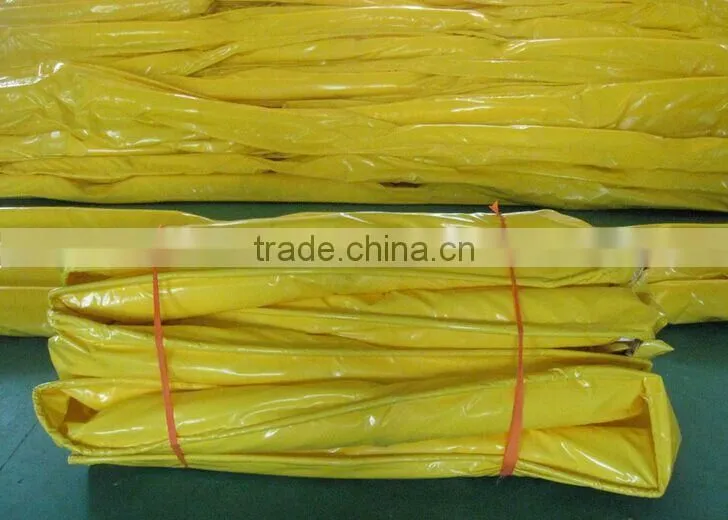

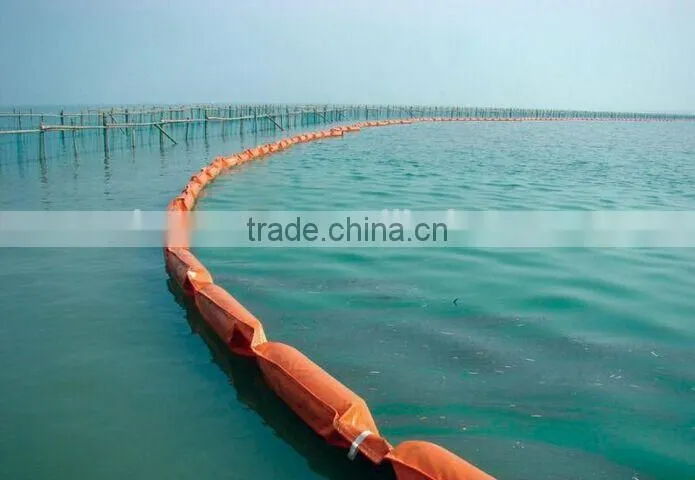

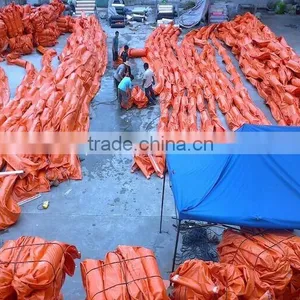

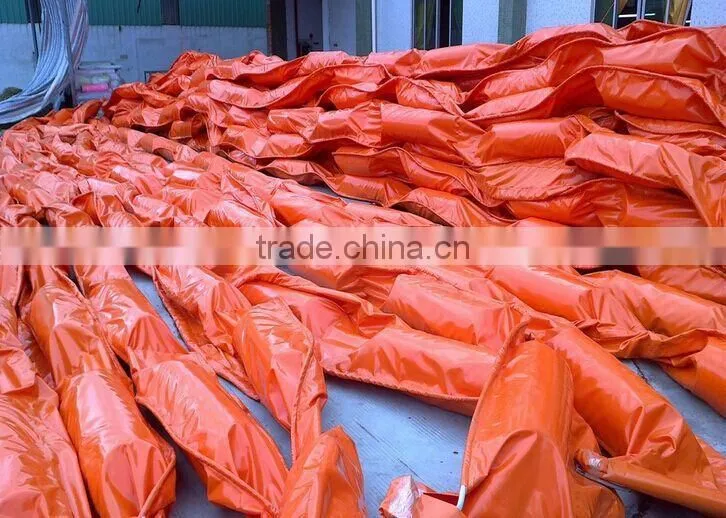

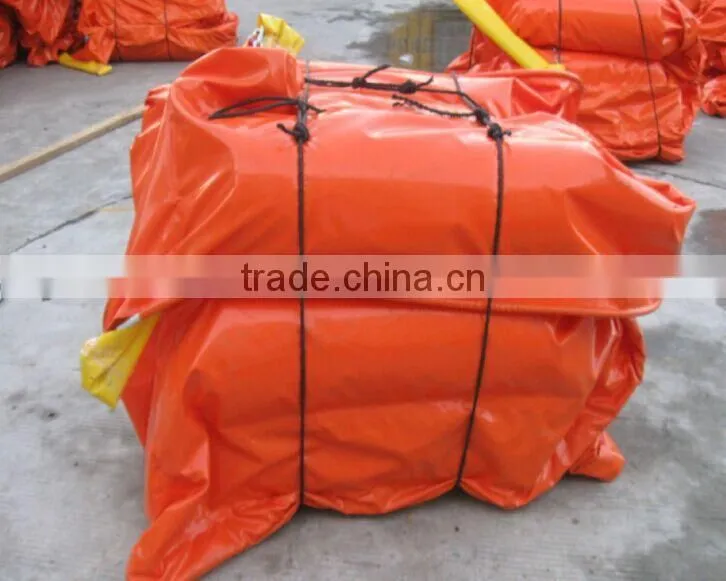

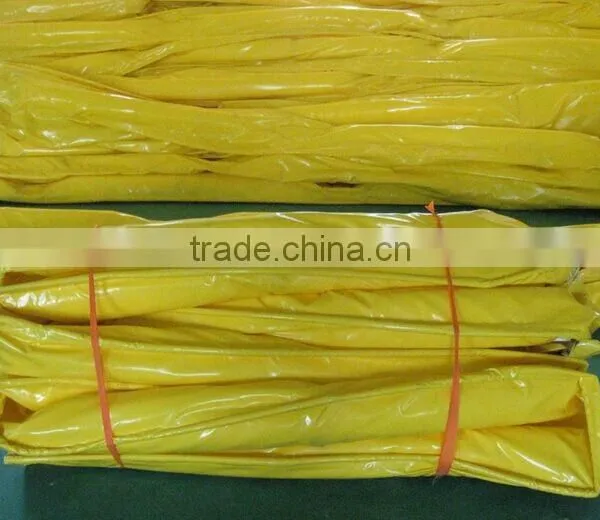

Soild Float PVC Oil spill containment Boom
Features:
1.Bright in color, artistic, oil resistance, sunshine resistance, big reserve buoyancy, powerfuloleostasisproperty
2.It mainly uses high-intensive double PVC coated waterproof cloth. The bar, which have leashes in top, center and bottom, strengthen joint-strip and tensile stress components as a counterweight chain longitudinal tensile properties. Smooth appearance, convenient to guide oil, easy to clean.
3.the optimal cost-effective
4. Supply many different patterns : water drop shape(tumbler shape)is most steady in torrent;cylinder-shaped have bigger reserve buoyancy and is good at ride function; massive floating shape have a small volume and it is easily and quickly to fixed.
5. Every 30 meters a joint, with convenient connection between the joints.
Specification:
Type |
PLGW-650 |
PLGW-700 |
PLGW-750 |
PLGW-800 |
PLGW-900 |
PLGW-950 |
Free board |
180mm |
260mm |
250mm |
330mm |
325mm |
320mm |
Draft |
320mm |
400mm |
410mm |
540mm |
650mm |
770mm |
length per section |
20m or15m,10m |
|||||
Max,working tensile strength(Kn) |
20KN |
40KN |
55KN |
65KN |
75KN |
85KN |
Weight |
3.7kg/m |
6.2kg/m |
7.1kg/m |
8.4kg/m |
9.3kg/m |
9.5kg/m |
Max, wave height to withstand(m) |
0.5m |
1m |
1.5m |
1.8m |
2m |
1m |
Max,wind speed to withstand(m/s) |
10m/s |
15m/s |
15m/s |
18m/s |
18m/s |
20m/s |
Max,current speed to with stand(Kn) |
1 |
1.5 |
2 |
2Kn |
2.5Kn |
2.5Kn |
20m/60mpacking size |
1*1*0.6 |
1.2*1*1 |
1.3*1.1*1.1 |
1.4*1.5*1.2 |
1.4*1.6*1.3 |
1.4*1.7*1.4 |
