Home > Products > CF series hammer mill > CF420C 11kw coconut shell powder machine

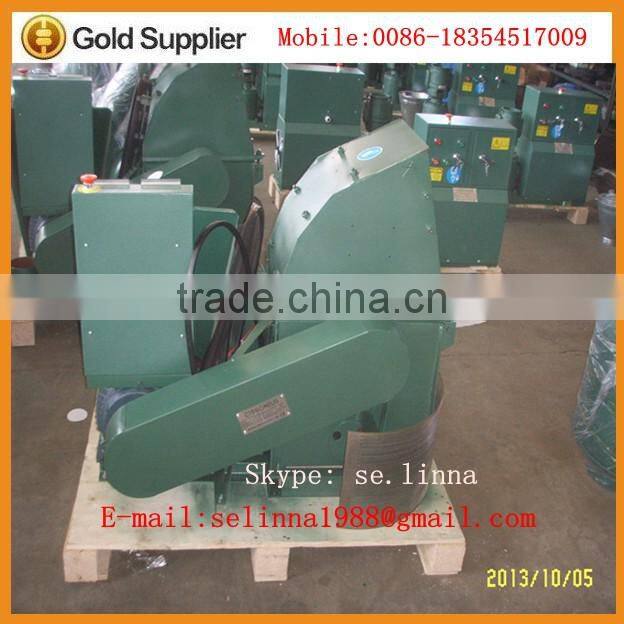

CF420C 11kw coconut shell powder machine
- 1000 Set / Sets per Month
- Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Chengda Machinery |
Model Number: | CF420C | Voltage: | 220v/380v/415v/440v | Power(W): | 11kw |

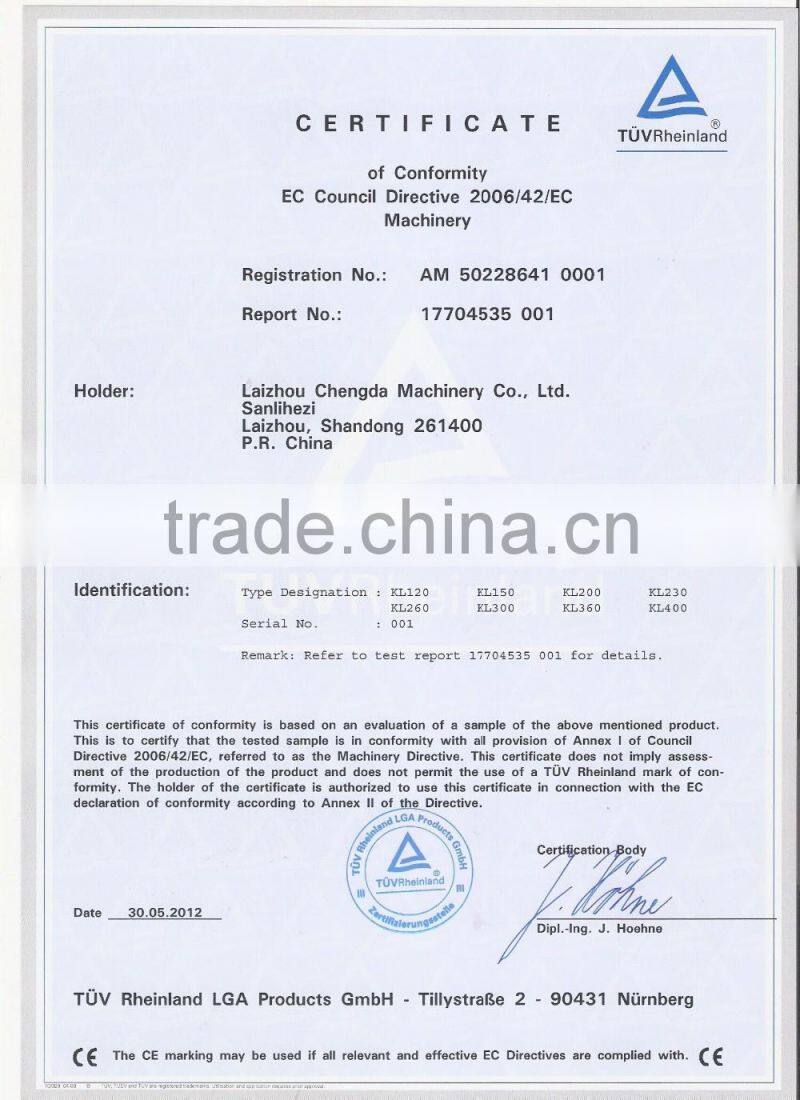

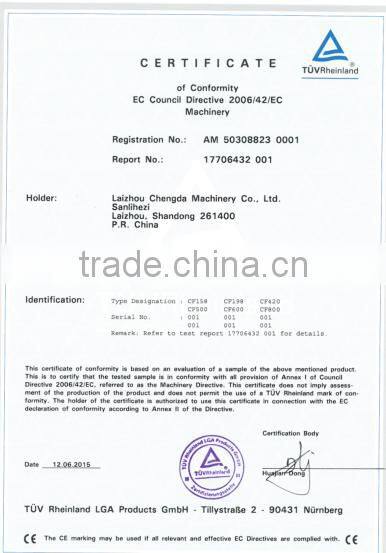

Dimension(L*W*H): | 112*82*107cm | Weight: | 320kg | Certification: | CE ISO |
Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

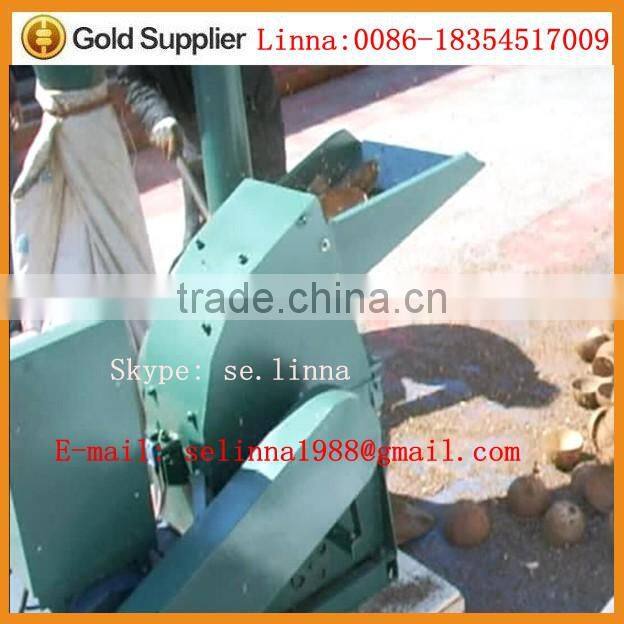

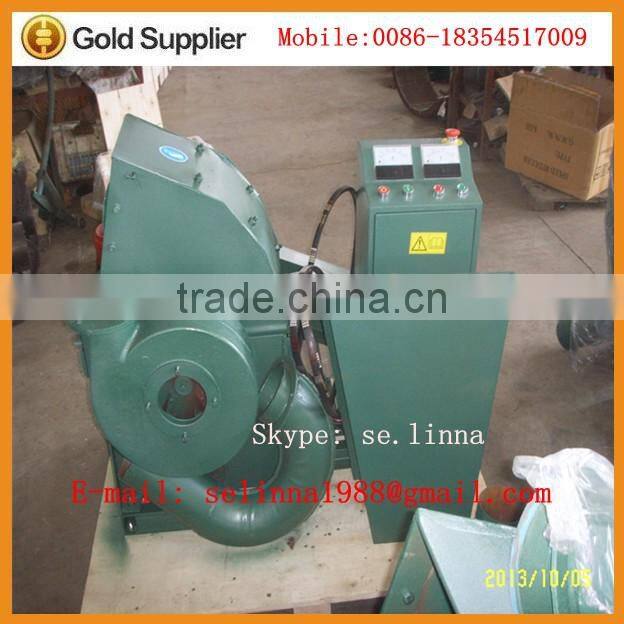

CF420C 11kw coconut shell powder machine
Working principle of coconut shell powder machine
The powder machine is fixed with an engine and a power of RP-driven all kinds of different power.
After the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step by step. Then the crushed materials will be leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge. Finally, the powder material will be discharged down below and the air will be discharged upper.
Main Features of coconut shell powder machine
1. With capacity 300-400kg/h, this crusher machine can satisfy a large production demand on a daily basis.
2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same crusher machine.
3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen.
4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part.
5. The angle of the screen can be 180° which allows for high throughput at lower power consumption.
6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing
Specifications of the coconut shell powder machine
Machine Parts

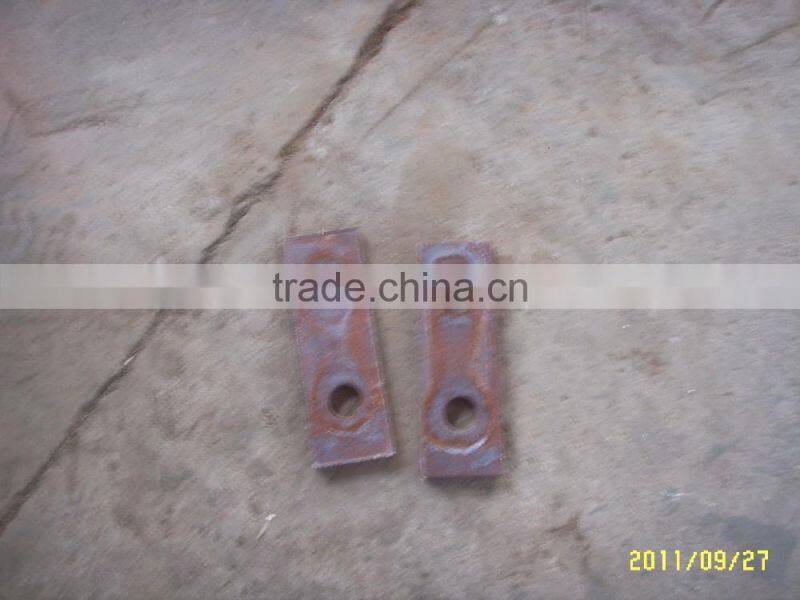

Name: hammers
Brand: Chengda Machinery
Original: Shandong, China
This model of CF420C 11kw crusher machine has 16 pieces hammers.
Main Features

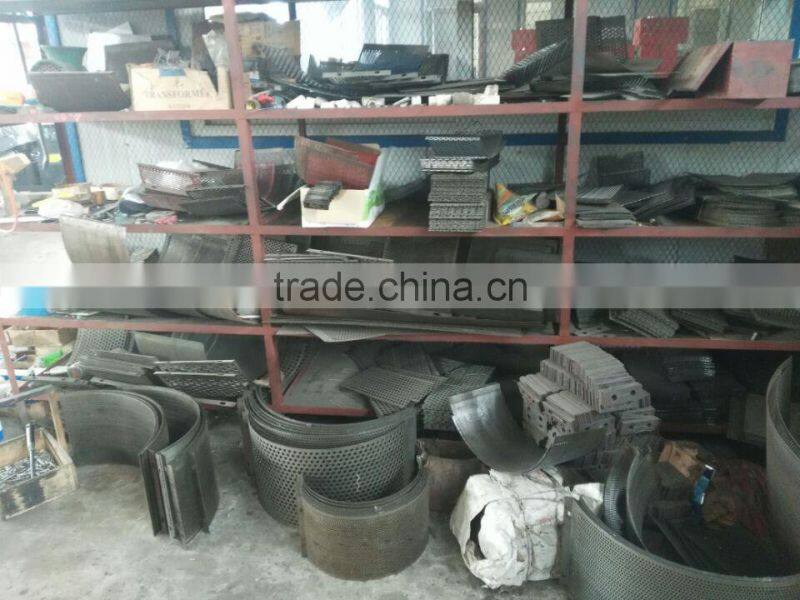

Name: Sieves/ Screens
Brand: Chengda Machinery
Original: Shandong, China
The thickness is 2mm or 3mm, hole diameter can be 2mm, 4mm, 6mm, 8mm and 10mm. Or we can do it as your demand.
Machine Parts
Name: hammers and sieves
Brand: Chendga Machinery
Original: Shandong, China

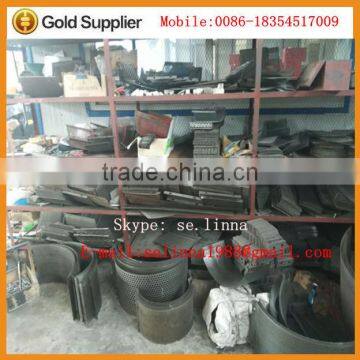

They are easy break parts. We suggest you buy some pieces for spare when you buy the machine.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

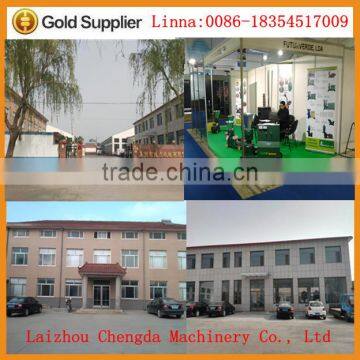

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
