Corn Hammer Mill, Rice Hammer Mill, Straw Hammer Mill, Stalk Hammer Mill in One Machine With Cyclone

Corn Hammer Mill, Rice Hammer Mill, Straw Hammer Mill, Stalk Hammer Mill in One Machine With Cyclone thumbnail-1
Corn Hammer Mill, Rice Hammer Mill, Straw Hammer Mill, Stalk Hammer Mill in One Machine With Cyclone photo-1
US$ 820 - 1,164 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
chengda machine
Contact Supplier Request Quote Chat Now
Laizhou Chengda Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qindao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name chengda machine
Model Number CF420
Type Feed Pellet Machine
Voltage 380v
Power(W) 11kw
Dimension(L*W*H) 112*82*107cm
Weight 360 kg
Certification CE, CE
Warranty 12 monthes

Specifications

.1.power:15hp diesel or 22hp diesel engine
2.output:200-500kg/h
3.warranty:1 years
4.certification:CE
5.moisture:8%-15%

Product Feature:

1. Simple and Automatic Operation;
2. Easy Maintain;
3. It can be combined according to your requests, no limitation on the places;
4. It realizes the perfect combination on the chipping and crushing.





The Introduction of the  Hammer Mill





1.Hammer Mill is used for crushing small diameter raw materials, which are no more than 100mm such as corn straw,tree branches and so on. after crushing, the diameter of the final products could be 3-5mm



2.This hammer mill is mainly composed of casing, rotor, hammers and bars. The case is divided into two parts: up and down, which is connected by welding the cut steel; other parts are connected by screws. The one inside of case is high manganese steel lining board, which is easy to change when wore out.



 3. In order to avoid clogging, humidity of crushed material should below 10%-50%.





the Hammer Mill is the most ideal milling equipment of all kinds of wood pieces, straw, grass, stalk, tree branches, waste cardboard, bamboo, wood scrap, corn stalk, peanut shell, wheat stalk, wood fuel, cotton stalk, biomass shell and so on, which can crush the raw material into small particles with size 3~5mm.







The machine includes airlock, blower, cyclone. It is equipped with high carbon steel blade and works with high efficiency and gains more good reputation from European users.

Hammer Mill Introduction

To reduce the size of wood chips and other suitably sized biomass raw materials to the correct particle size, a hammer mills is used. A hammer mill works on the principle of attrition. A rotating centre with a collection of flailing hammers impact at high speeds, shattering the material into particles. A screen with the desired particle size ensures the correct particle size is produced.

Post Particle Size Reduction and Cyclone Separation
Once particle size reduction has taken place, a fan is used to extract the particles from the based of the hammer mill. However the particles are now mixed in the air stream, and need to be separated. To separate the particles from the air stream, a cyclone separator is used.

The cyclone has a vertical position, and the air stream and particles are injected into the top of the cyclone. The gas stream, due to the shape of the cyclone is sent into a spiral. During the spiral action, the particles are separated from the air stream and leave the based of the cyclone. The separated air then leaves the cyclone through a central pipe through the top. The particles are now a suitable size for briquette or pellet compression, depending they have a suitable moisture content of around 12% for briquette compression, and 15% for the pellet mill.

Specification:




Model No.PowerOutput(kgs/h )NW/GW(kg)Packing size(cm)Remark
CF1582.2kw/220V50-8075/9548*58*63CE motor
CF1583 kw/380V50-18075/9548*58*63CE motor
CF198A7.5HP150-450120/14090*58*102gasoline engine
CF198B4kw/380V150-450120/14090*58*102CE motor
CF420A15HP360-650330/360147*73*109diesel engine
CF420A22HP400-850330/360147*74*111diesel engine
CF420B7.5kw/380V350-650260/320112*82*107CE motor
CF420B11kw/380V300-800320/360112*82*107CE motor
CF500A55HP850-1500800/840150*142*123diesel engine
CF500B22kw/380V800-1200600/630124*97*106CE motor




corn hammer mill, rice hammer mill, straw hammer mill, stalk hammer mill in one machine with cyclone

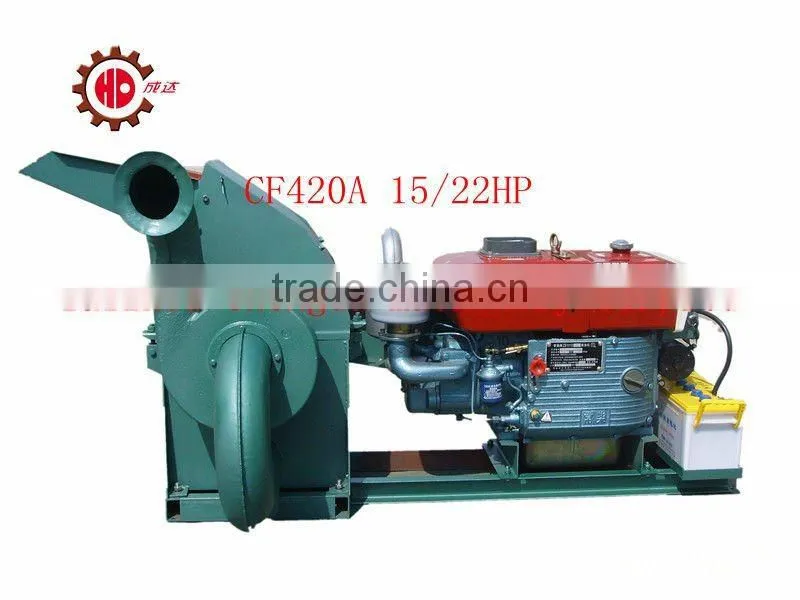

CF420A with electric-star diesel enginer power.

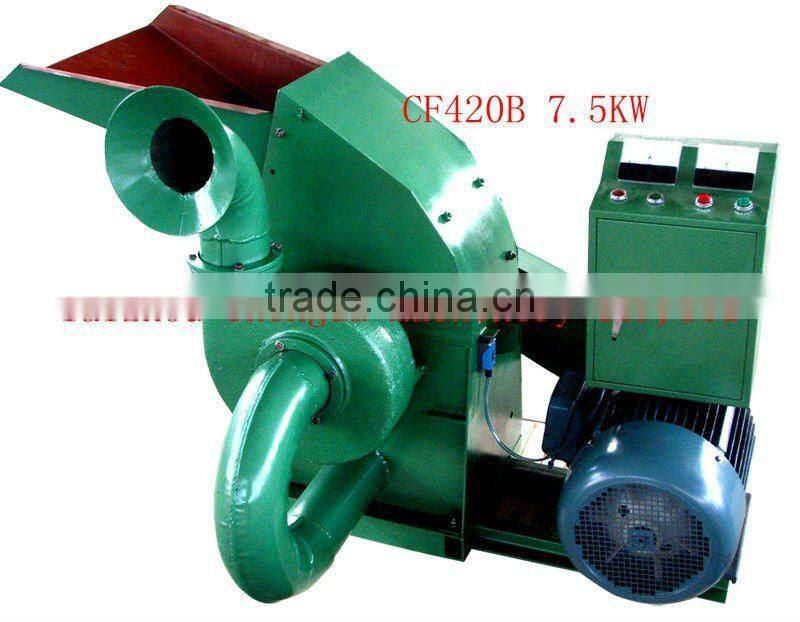

 corn hammer mill, rice hammer mill, straw hammer mill, stalk hammer mill in one machine with cyclone





corn hammer mill, rice hammer mill, straw hammer mill, stalk hammer mill in one machine with cyclone
