Help CenterHot Sell Fertilizer Hammer Milling Machine Price
Related Products
-
Corn Hammer Mill, Rice Hammer Mill, Straw Hammer Mill, Stalk Hammer Mill in One Machine With CycloneUS$ 820 - 1,164MOQ: 1 Set -
Dust Collector Hammer Mill/grinder Hammer Mill/wheat Hammer MillUS$ 400 - 6,000MOQ: 1 Set
-
Automatic Hammer Mill Machine/tear-circle Hammer Mill/diesel Wood Hammer MillUS$ 700 - 5,000MOQ: 1 Set
-
Straw Tree Branches 55KW Electric Driven Wood Sawdust Hammer MillUS$ 3,600 - 5,000MOQ: 1 Set
-
CF420 Hammer Mill Electric Diesel Engin Cob Straw Rice Husk Peanut Shell Wheat Stalk Hammer Mill Coconut Crusher Machine With CEUS$ 800 - 1,500MOQ: 1 Set
Specifications
1,Application:fodder,heating,fertilizer2,Capacity:60-1200kg/h
3,Power::diesel,gasoline or E-motor
4Packaging:plywood box
Wood grinder machine
1.CE certification
2. Good quailty
3. Good after sell service
4. low noise
5. fast delivery
petitive price
Functioning

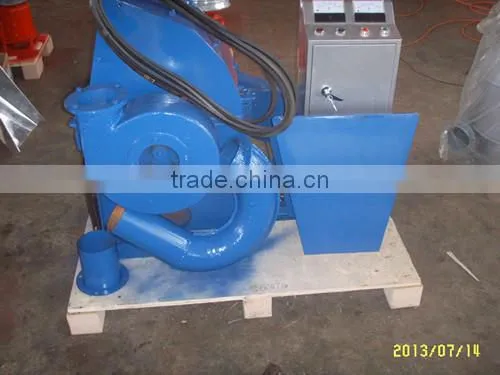

The hammer mill is fixed with an engine with a power of RP-driven all kinds of different power. Its working principle is: after the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step-by-step. The sieve have the following size: 1.5mm, 2mm, 4mm and 6mm. Then the crushed materials will leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge, finally, the powder will be discharged down below, and the air will be discharged upper.
Specification:
| Moel | power |
output |
N.W/G.W | Packing Size |
| CF158 | 2.2kw SINGLE/3 PHASE | 60-120 | 75/95 | 48*58*63 |
| CF198 | 7.5HP GASOLINE | 200-300 | 120/140 | 90*58*102 |
| CF198 | 4KW | 120/140 | 90*58*102 | |
| CF420B | 7.5KW | 400-600 | 260/320 | 112*82*107 |
| CF420C | 11KW | 320/360 | 112*82*107 | |
| CF420A | 15HP DIESE | 330/360 | 147*73*109 | |
| CF420A | 22HP DIESE | 350/390 | 147*74*111 | |
| CF500A | 55HP DIESE | 800-1100 | 800/840 | 150*142*123 |
| CF500B | 22KW | 600/630 | 124*97*106 |
Wood grinder mill
Wood grinder mill is the most ideal milling equipment of all kinds of wood piece, straw,
grass, stalk, tree branches, waste cardboard, bamboo, wood scraps, corn stalk, peanut shell,
wheat stalk, wood fuel, cotton stalk, biomass shell and so on. This kind of Wood grinder
mill is widely used in foddor factory, Swine farm, wood factory, etc. Wood grinder mill is
equipped with high carbon steel blade. The raw materials can be crushed into straw
particles, whose diameter is 4-5 mm. The durable hammer mill works with high efficiency and
gains more good reputation from European users.

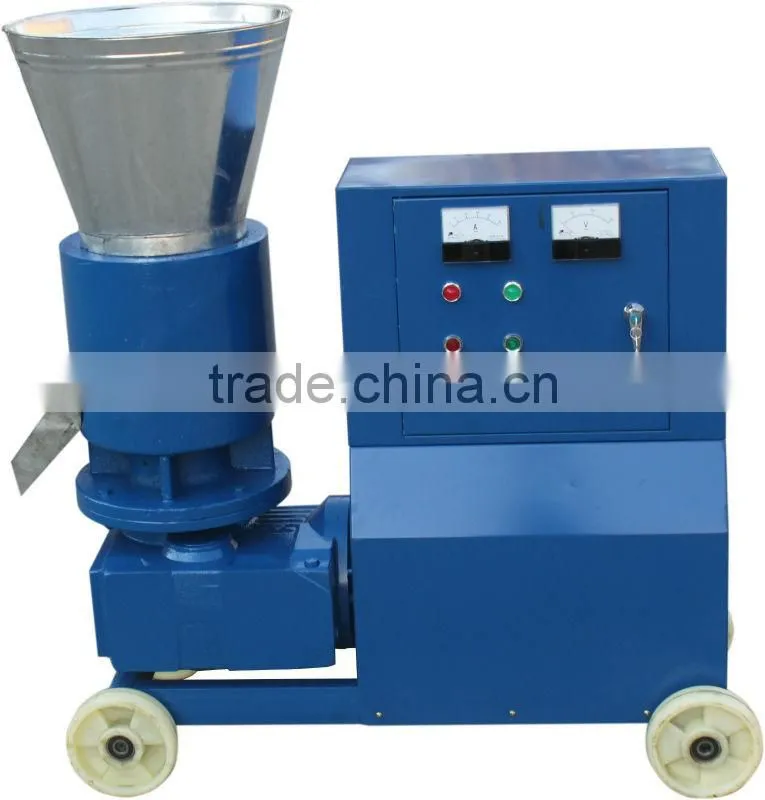

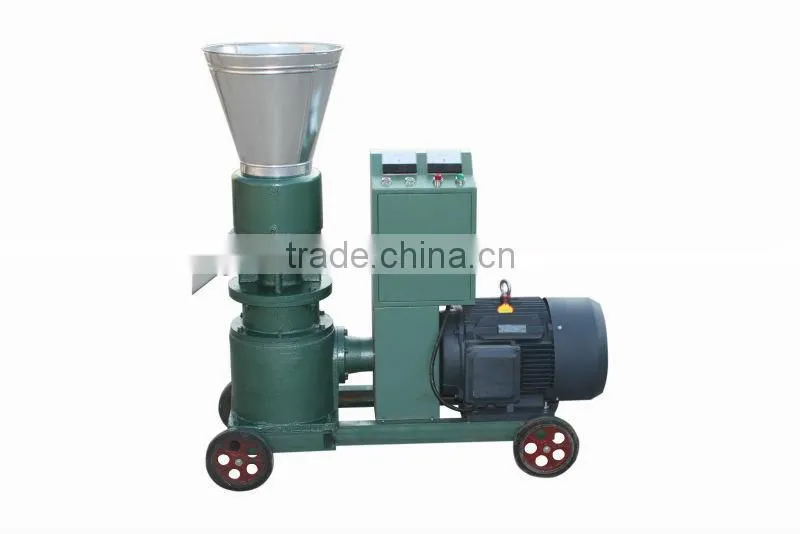

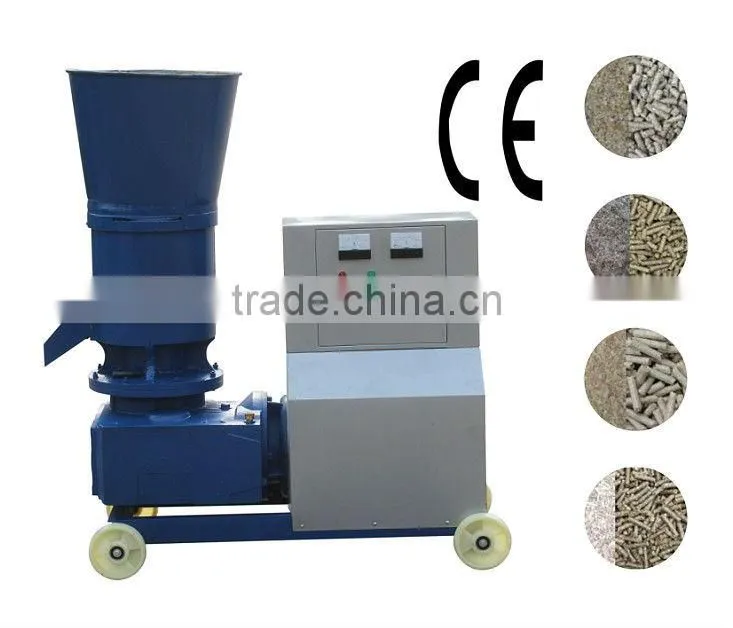

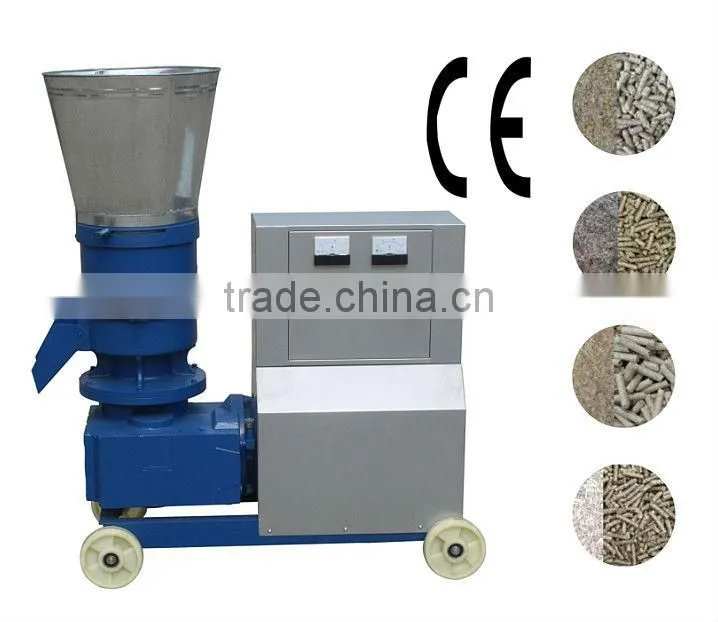

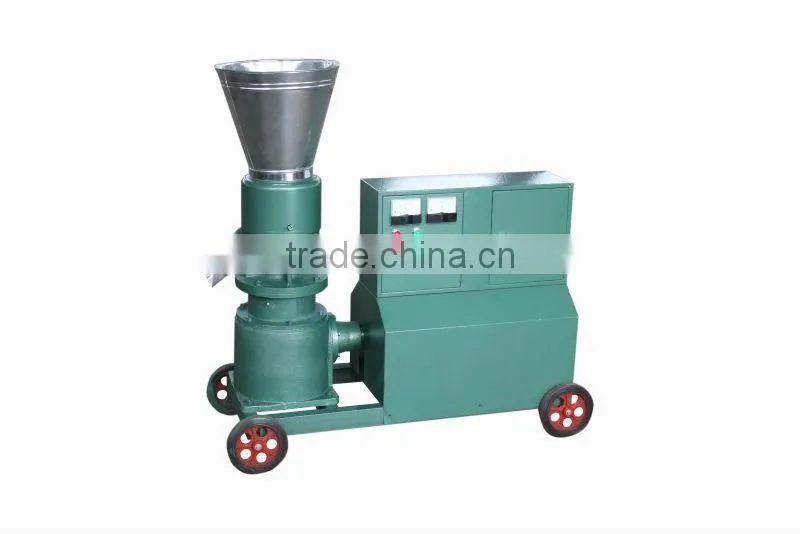

we also have the pellet mill to assort the hammer mill.
pellet mill technical data as below:
| MODEL | POWER | OUTPUT(KG/H) | N.W/G.W(kg) | PACKING SIZE(cm) |
| MKL225 | 7.5KW | 120-200 | 230/260 | 100*45*98 |
| MKL225B | 7.5KW | 230/260 | 100*46*115 | |
| MKL225C | 7.5KW | 320/360 | 100*46*115 | |
| MKL225A | 15HP DIESE | 310/320 | 118*56*95 | |
| MKL229A | 15HP DIESE | 180-250 | 310/320 | 118*56*95 |
| MKL229B | 11KW | 230/260 | 110*48*118 | |
| MKL229C | 11KW | 320/360 | 110*48*118 | |
| MKL229 | 11KW | 320/360 | 102*48*98 | |
| MKL295C | 15KW | 300-400 | ||
| MKL295 | 15KW | 450/480 | 108*52*105 | |
| MKL335C | 22KW | 400-600 | ||
| MKL335 | 22KW | 580/600 | 134*60*115 | |
| MKL395 | 30KW | 600-800 | 620/650 | 152*60*115 |
releated pictures as below:
