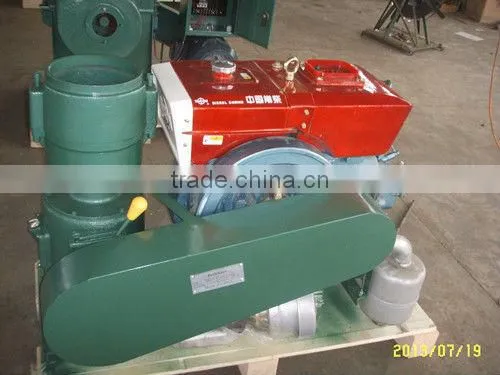

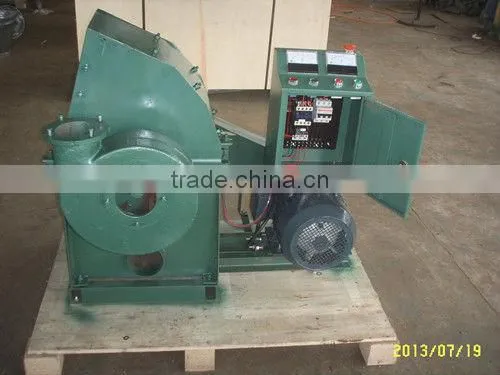

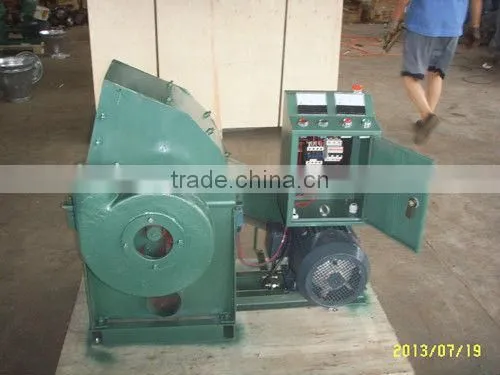

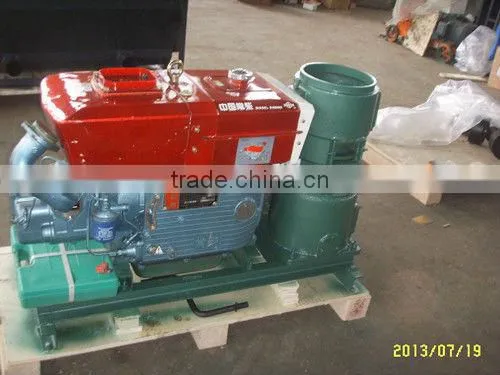

Automatic Hammer Mill Machine/tear-circle Hammer Mill/diesel Wood Hammer Mill
US$ 700 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
chengda machine
Model Number:
CF420A
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Straw Tree Branches 55KW Electric Driven Wood Sawdust Hammer MillUS$ 3,600 - 5,000MOQ: 1 Set -
CF420 Hammer Mill Electric Diesel Engin Cob Straw Rice Husk Peanut Shell Wheat Stalk Hammer Mill Coconut Crusher Machine With CEUS$ 800 - 1,500MOQ: 1 Set
-
Wood Chip Hammer Mill Machine for Making SawdustUS$ 800 - 1,000MOQ: 1 Set
-
Wood Shredding Machine to Make Wood Chips Into SawdustUS$ 800 - 1,000MOQ: 1 Set
-
Wood Crushing Machine Price for Making SawdustUS$ 800 - 1,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
chengda machine
Model Number
CF420A
Type
Feed Pellet Machine
Voltage
380v
Power(W)
15.22.55hp
Dimension(L*W*H)
112*82*107cm
Weight
360 kg
Certification
CE
Warranty
12 monthes
Specifications
1.CE certification2.warranty:1years
3.power:15hp,22hp,55hp diesel engine
4.output: 400-600kg/h
5.moisture:8%-15%
Hammer Mill Introduction
To reduce the size of wood chips and other suitably sized biomass raw materials to the correct particle size, a hammer mills is used. A hammer mill works on the principle of attrition. A rotating centre with a collection of flailing hammers impact at high speeds, shattering the material into particles. A screen with the desired particle size ensures the correct particle size is produced.
Post Particle Size Reduction and Cyclone Separation

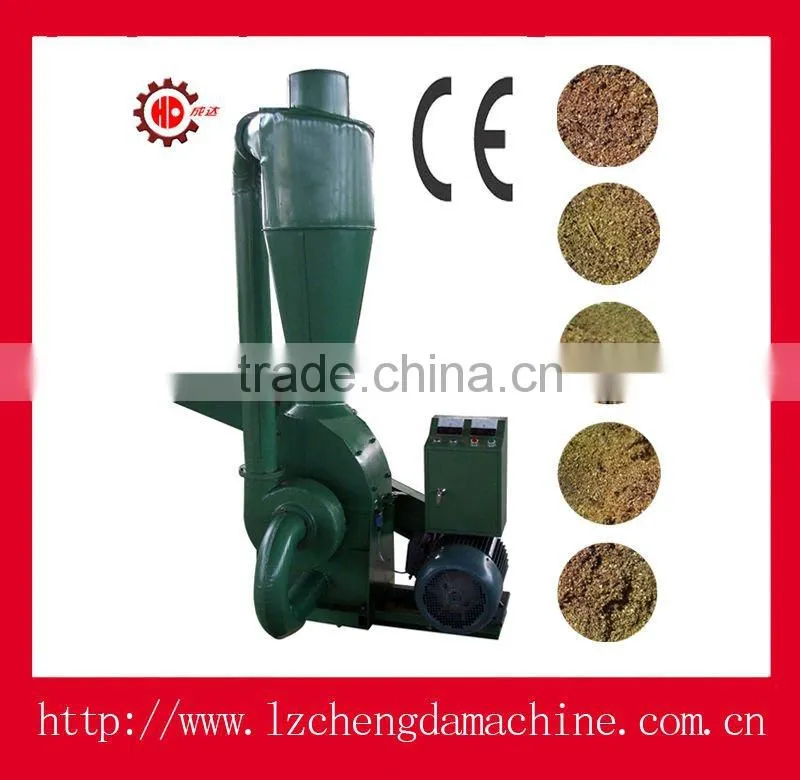

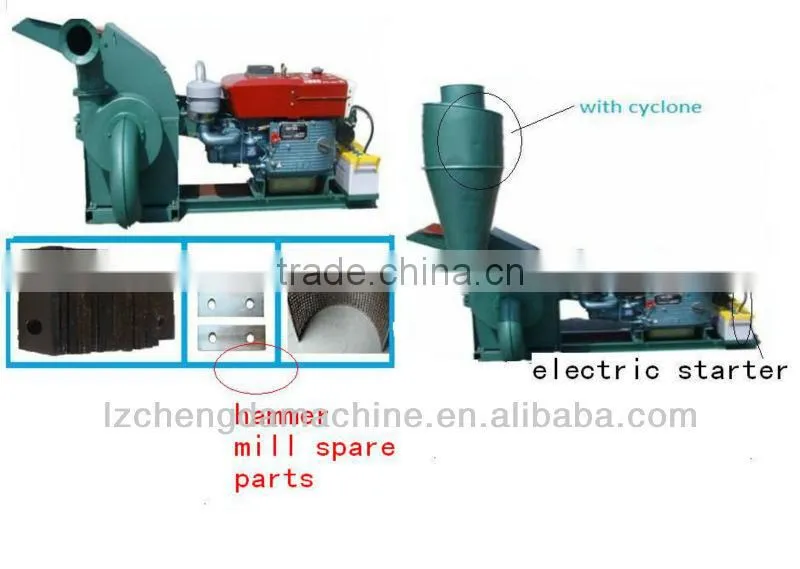

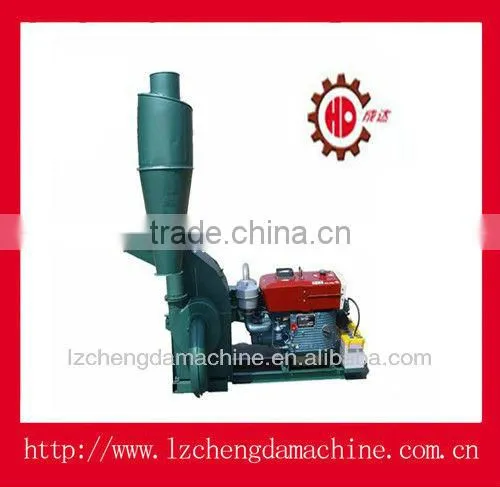

Once particle size reduction has taken place, a fan is used to extract the particles from the based of the hammer mill. However the particles are now mixed in the air stream, and need to be separated. To separate the particles from the air stream, a cyclone separator is used.
The cyclone has a vertical position, and the air stream and particles are injected into the top of the cyclone. The gas stream, due to the shape of the cyclone is sent into a spiral. During the spiral action, the particles are separated from the air stream and leave the based of the cyclone. The separated air then leaves the cyclone through a central pipe through the top. The particles are now a suitable size for briquette or pellet compression, depending they have a suitable moisture content of around 12% for briquette compression, and 15% for the pellet mill.
Specification:
| Moel | power |
output |
N.W/G.W | Packing Size |
| CF158 | 2.2kw SINGLE/3 PHASE | 60-120 | 75/95 | 48*58*63 |
| CF198 | 7.5HP GASOLINE | 200-300 | 120/140 | 90*58*102 |
| CF198 | 4KW | 120/140 | 90*58*102 | |

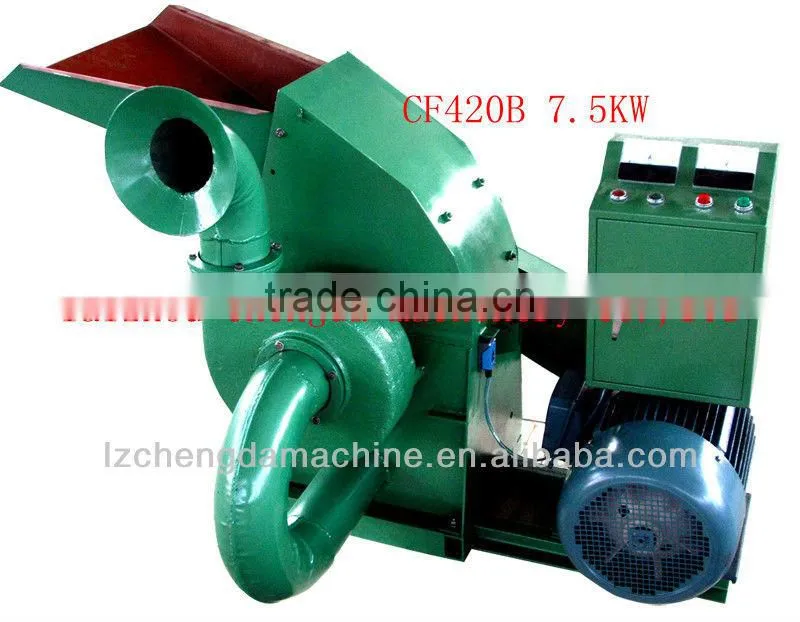

| CF420B | 7.5KW | 400-600 | 260/320 | 112*82*107 |
| CF420C | 11KW | 320/360 | 112*82*107 | |

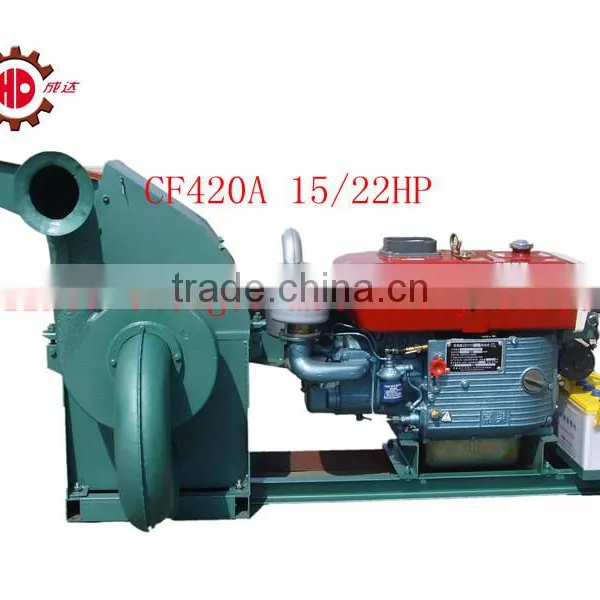

| CF420A | 15HP DIESE | 330/360 | 147*73*109 | |
| CF420A | 22HP DIESE | 350/390 | 147*74*111 | |
| CF500A | 55HP DIESE | 800-1100 | 800/840 | 150*142*123 |
| CF500B | 22KW | 600/630 | 124*97*106 |
