Specifications
farm irrigation systems1.galvanized steel frame
2.flexible to move and storage
3.0.5-0.8Mpa pressure
4.turbine recover

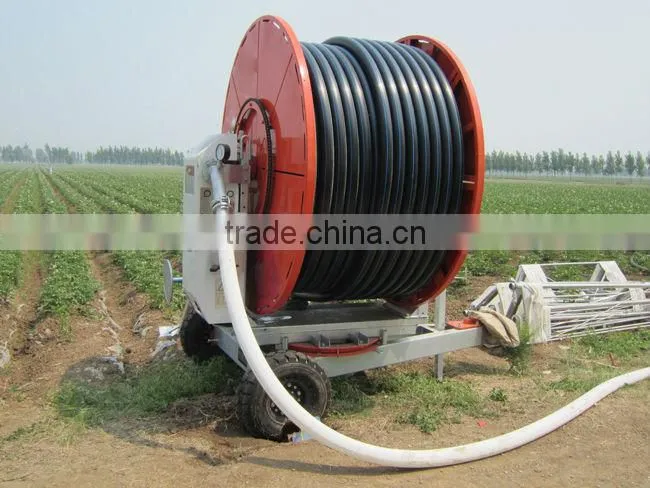

Farm Irrigation Systems for Watering Vegetable
Description
Hose reel irrigationsystem is mainly make up of the chassis, reel, PE pipe, water turbine, gearbox, driving the speed compensation
device and water composition.
The key components of water turbines, gearboxes, PE pipe and structural piece are in good or bad quality of the processing technology
directly affects the effectiveness and use of the whole operational life.
Features
1.Irrigation machine is mainly composed of Frame, Reel,PE Tube, Water Turbine,Gearbox and Water Carriage.
2.With Charateristics of Simple and Compact Structure, Easy Operation and Moving, The irrigation machine can be operated by 1-2 persons.

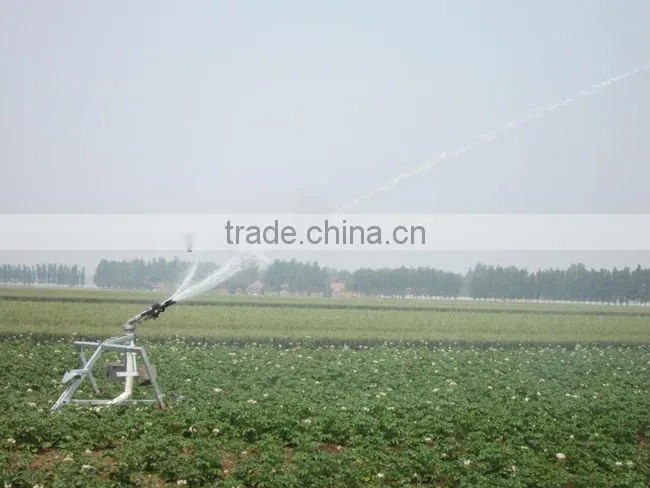

3.High Efficiency and Large Irrigation Area. The Sprinkler can spray water in all directions.
4.Good irrigation quality and uniformity can be up to 85% above.
5.The Irrigation machine, with multi-functions, can be used for farmland irrigation, fruit and vegetable irrigation,pasture and sugarcane spray,power plant and port dedusting.
Technical parameters
Model |
PE Diameter |
PE Length |
Maximum Length Of Tube |
Floe (m3/h) |
Sprinkler Diameter (mm) |
The connection Pressure |
JP65-220 |
65 |
220 |
2×260 |
13-32 |
14-22 |
3.5-10.0 |
JP65-250 |
65 |
250 |
2×290 |
13-32 |
14-22 |
3.5-10.0 |
JP65-300 |
65 |
300 |
2×340 |
13-32 |
14-22 |
3.5-10.0 |
JP75-200 |
75 |
200 |
2×250 |
13-50 |
14-26 |
3.5-10.0 |
JP65-340 |
65 |
340 |
2×380 |
13-28 |
14-22 |
3.5-10.0 |
JP75-250 |
75 |
250 |
2×300 |
13-50 |
14-28 |
3.5-10.0 |
JP75-270 |
75 |
270 |
2×315 |
13-45 |
14-28 |
3.5-10.0 |
JP75-300 |
75 |
300 |
2×345 |
13-38 |
14-26 |
3.5-10.0 |
JP75-320 |
75 |
320 |
2×365 |
13-38 |
14-24 |
3.5-10.0 |
JP75-350 |
75 |
350 |
2×390 |
13-38 |
14-22 |
3.5-10.0 |
JP75-400 |
75 |
400 |
2×435 |
13-30 |
14-20 |
3.5-10.0 |
JP90-230 |
90 |
230 |
2×280 |
17-65 |
16-30 |
3.5-10.0 |
JP90-250 |
90 |
250 |
2×300 |
17-65 |
16-30 |
3.5-10.0 |
JP90-280 |
90 |
280 |
2×320 |
17-65 |
16-30 |
3.5-10.0 |
JP90-300 |
90 |
300 |
2×350 |
17-65 |
16-30 |
3.5-10.0 |
For more information, contact hellen freely
Trademanager: ali1000036028
Tel:+86-15890098440
Send Inquiry to This Supplier
