Specifications
hose reel irrigator1.with lowest energy consumption
2.pipe rewind by itself
3.flexible to move and storage
4.with ISO

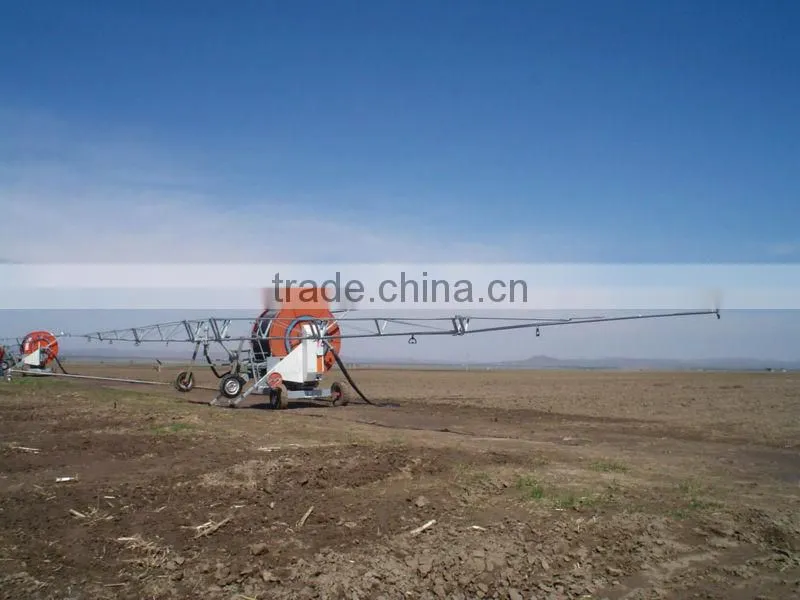

Hose Reel Irrigator for Farmland
Description
Hose reel irrigator is mainly make up of the chassis, reel, PE pipe, water turbine, gearbox, driving the speed compensation device
and water composition.The key components of water turbines, gearboxes, PE pipe and structural piece are in good or bad quality
of the processing technology directly affects the effectiveness and use of the whole operational life.
Features
1.Hose reel irrigator is mainly composed of Frame, Reel,PE Tube, Water Turbine,Gearbox and Water Carriage.
2.With Charateristics of Simple and Compact Structure, Easy Operation and Moving, The irrigation machine can be operated by 1-2 persons.
3.High Efficiency and Large Irrigation Area. The Sprinkler can spray water in all directions.
4.Good irrigation quality and uniformity can be up to 85% above.
5.The Irrigation machine, with multi-functions, can be used for farmland irrigation, fruit and vegetable irrigation,pasture and sugarcane spray,power plant and port dedusting.
Technical parameters
Model |
PE Diameter |
PE Length |
Maximum Length Of Tube |
Floe (m3/h) |
Sprinkler Diameter (mm) |
The connection Pressure |
JP65-220 |
65 |
220 |
2×260 |
13-32 |
14-22 |
3.5-10.0 |
JP65-250 |
65 |
250 |
2×290 |
13-32 |
14-22 |
3.5-10.0 |
JP65-300 |
65 |
300 |
2×340 |
13-32 |
14-22 |
3.5-10.0 |
JP75-200 |
75 |
200 |
2×250 |
13-50 |
14-26 |
3.5-10.0 |
JP65-340 |
65 |
340 |
2×380 |
13-28 |
14-22 |
3.5-10.0 |
JP75-250 |
75 |
250 |
2×300 |
13-50 |
14-28 |
3.5-10.0 |
JP75-270 |
75 |
270 |
2×315 |
13-45 |
14-28 |
3.5-10.0 |
JP75-300 |
75 |
300 |
2×345 |
13-38 |
14-26 |
3.5-10.0 |
JP75-320 |
75 |
320 |
2×365 |
13-38 |
14-24 |
3.5-10.0 |
JP75-350 |
75 |
350 |
2×390 |
13-38 |
14-22 |
3.5-10.0 |
JP75-400 |
75 |
400 |
2×435 |
13-30 |
14-20 |
3.5-10.0 |
JP90-230 |
90 |
230 |
2×280 |
17-65 |
16-30 |
3.5-10.0 |
JP90-250 |
90 |
250 |
2×300 |
17-65 |
16-30 |
3.5-10.0 |
JP90-280 |
90 |
280 |
2×320 |
17-65 |
16-30 |
3.5-10.0 |
JP90-300 |
90 |
300 |
2×350 |
17-65 |
16-30 |
3.5-10.0 |
For more information,pls contact hellen !
